32
Setting from the Control Panel
Selecting the Sound Output from the COAXIAL OUT
(3/4) Jack
You can select the sound (from either the computer (WAVE OUT 1-2, WAVE OUT 3-4) or from the
direct mixer) to be output from the COAXIAL OUT (3/4) jack.

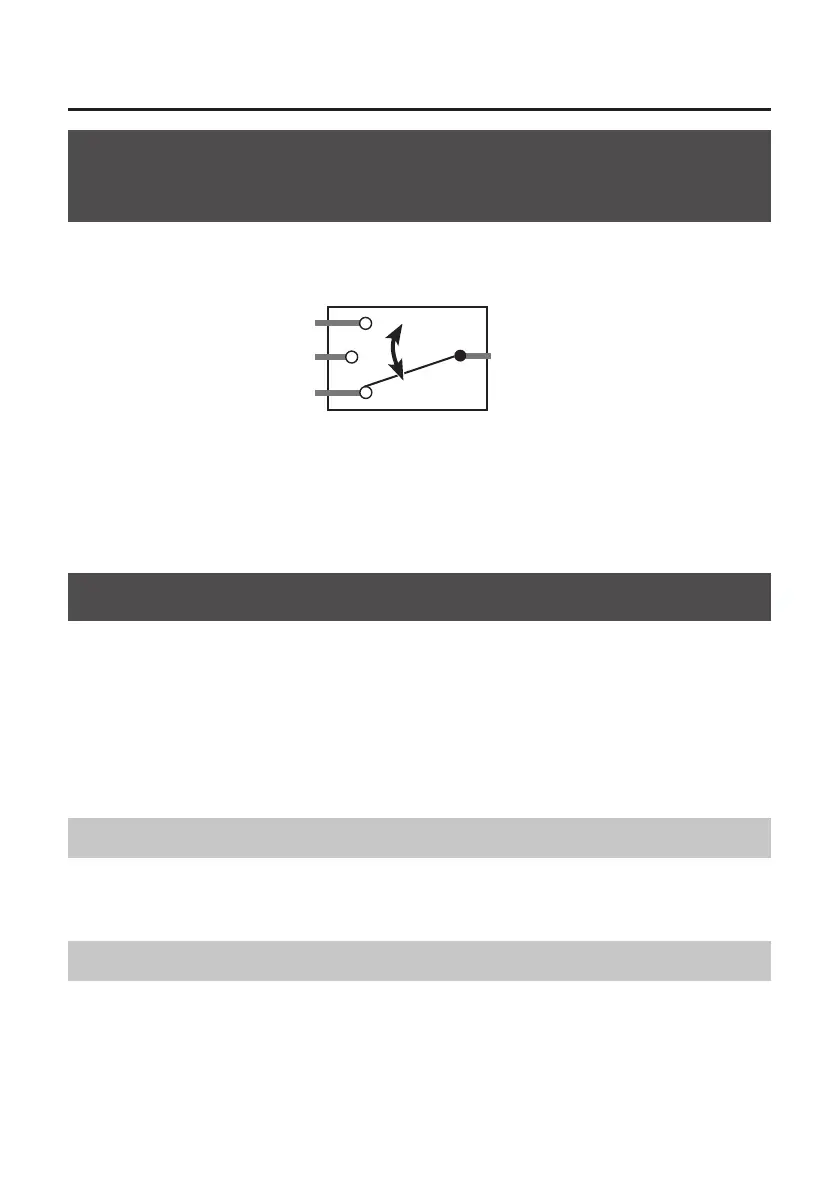

DIGITAL OUT SELECTOR
COAXIAL OUT (3/4)
DIRECT MIX (from the direct mixer)
WAVE OUT 1-2 (from the computer)
WAVE OUT 3-4 (from the computer)
1. From the “Device menu, select [Device Settings].
The dialog appears.
2. From the “Digital Out” drop-down list, select the sound to be output.
* No sound is output from the COAXIAL OUT (3/4) jack when operating at a sampling rate of 192
kHz.
Saving and Loading Your Settings
From the QUAD-CAPTURE control panel, you can save the current settings as a le, or load previously
saved settings from a le.
The following settings are saved.
Preamp settings (p. 29)
Compressor settings (p. 30)
Direct mixer settings (p. 31)
DIGITAL OUT SELECTOR settings (p. 32)
Saving Settings
1. From the “Device menu, select [Save settings].
2. Specify the le in which the settings are to be saved.
Loading Settings
1. From the “Device menu, select [Load settings].
2. Specify the le that contains the settings you want to load.
