Roland V-Drums TD-50 - Setup; Output; PAD OUTPUT (Page 1)

27

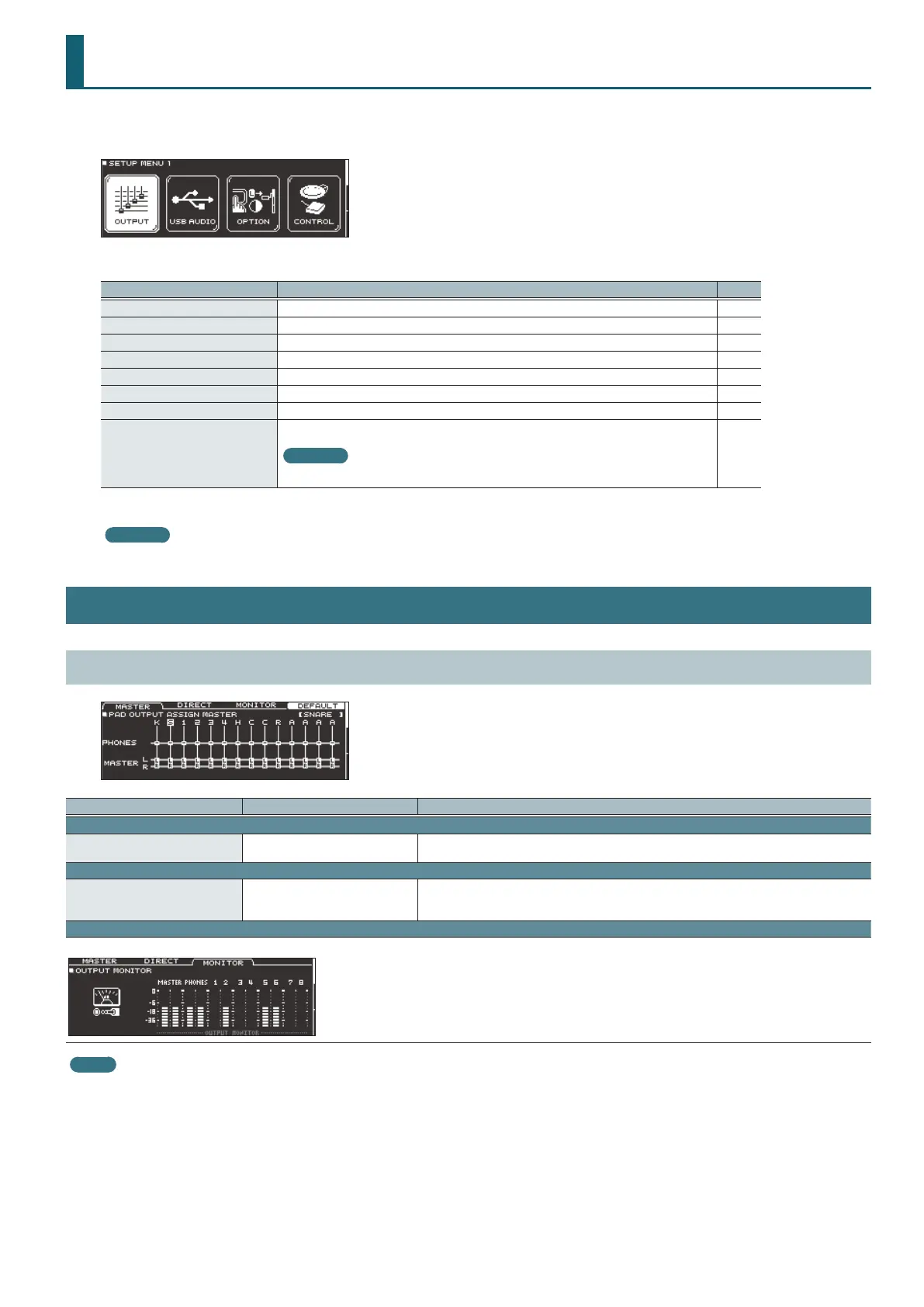

SETUP
1. Press the [SETUP] button.
The SETUP MENU screen appears.
2. Use the PAGE [UP] [DOWN] buttons and the function buttons to select the setup menu that you want to edit.
Setup menu Explanation Page
OUTPUT Species the output destination of the sounds. p. 27
USB AUDIO Makes USB audio settings. p. 30
OPTION Makes settings for the [PREVIEW] button, the MIX IN jacks, and the display. p. 30
CONTROL Assigns functions to the footswitch and pads. p. 31
MIDI Makes MIDI settings. p. 32
AUTO OFF Makes AUTO OFF settings. p. 33
INFO Displays information about the TD-50 itself, such as the program version. p. 33
FACTORY RESET
Returns the TD-50 to its factory settings.
Reference
For details on the factory reset operation, refer to “Reference Manual” (PDF).
–
3. Edit the settings of the menu that you selected.
Reference
For details on operations in the setup menu, refer to “Reference Manual” (PDF).
OUTPUT
PAD OUTPUT (page 1)
Parameter Value Explanation
MASTER tab
PAD OUTPUT ASSIGN MASTER
PHONES (MASTER OFF),
PHONES+MASTER LR
Species each pad’s output from the PHONES jacks and the MASTER OUT jacks (when Master Out
(p. 29) is “NORMAL”).
DIRECT tab
PAD OUTPUT ASSIGN DIRECT
OFF, 1, 2, 1+2, 3, 4, 3+4, 5, 6, 5+6, 7,
8, 7+8, MASTER DIRECT L, MASTER
DIRECT R, MASTER DIRECT L+R
Species each pad’s output from the DIRECT OUT 1–8 jacks and the MASTER OUT jacks (when
Master Out (p. 29) is “DIRECT”).
MONITOR tab
Monitor the output volume of each jack.
MEMO
If you want to return to the default values, press the [F4] (DEFAULT) button. If the [F2] (DIRECT) button is selected, pressing the [F4] (DEFAULT) button lets you select the default
values (factory-set state) or an additional output setting (STEREO ALL) (supported starting with program version 1.05).
Use the cursor buttons to select “DEFAULT” if you want to return to the default values (factory-set state) or “STEREO ALL” if you want to select the other output setting; then press
the [F5] (RESET) button.
