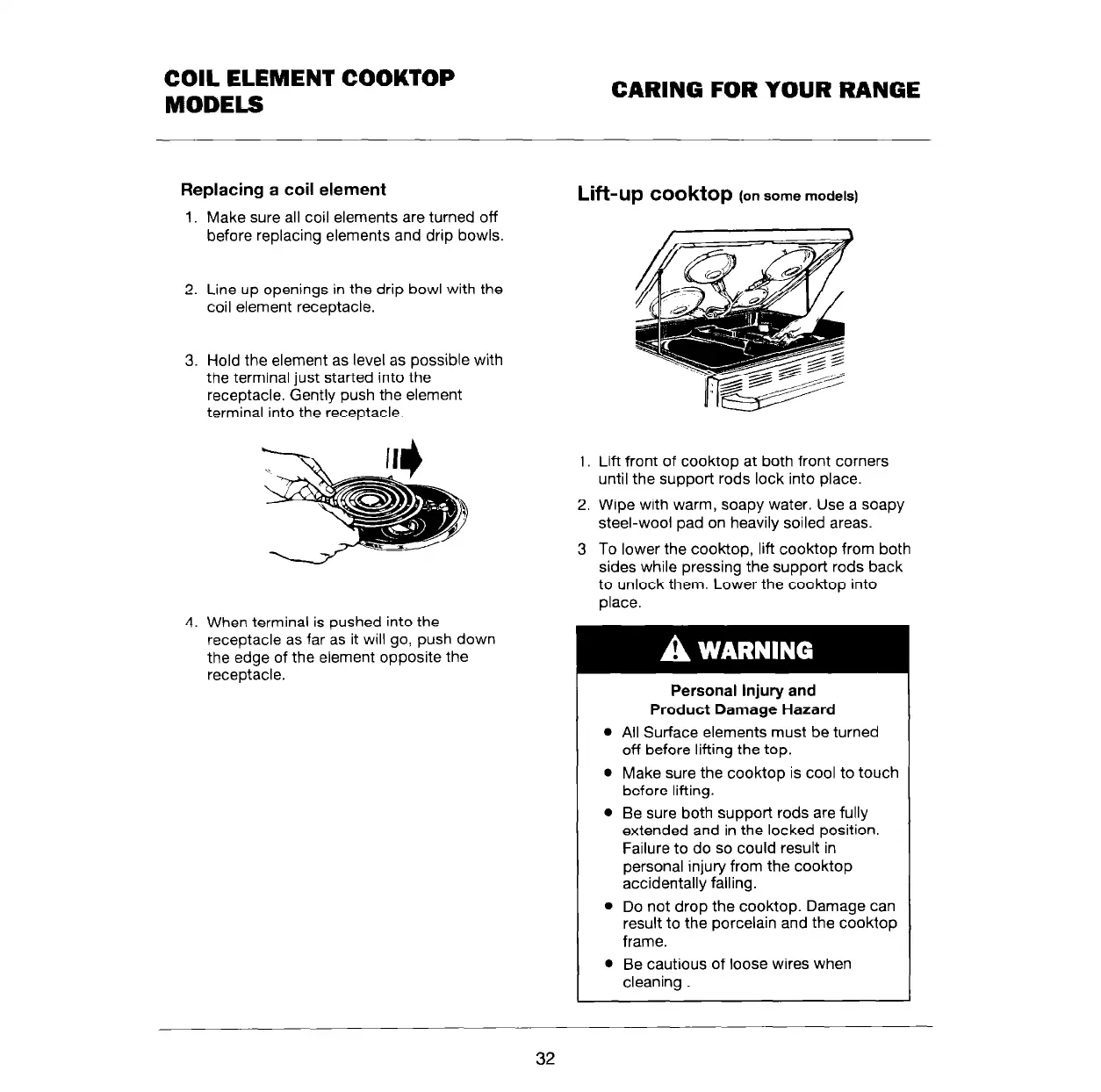

COIL ELEMENT COOKTOP
MODELS
CARING FOR YOUR RANGE
Replacing a coil element
1. Make sure all coil elements are turned off
before replacing elements and drip bowls.
2. Line up openings in the drip bowl with the
coil element receptacle.
3. Hold the element as level as possible with
the terminal just started into the
receptacle. Gently push the element
terminal into the receptacle.
4. When terminal is pushed into the
receptacle as far as it will go, push down
the edge of the element opposite the
receptacle.
Lift-Up
cooktop
(on some
models)
1. Lift front of cooktop at both front corners
until the support rods lock into place.
2. Wipe with warm, soapy water. Use a soapy
steel-wool pad on heavily soiled areas.
3 To lower the cooktop, lift cooktop from both
sides while pressing the support rods back
to unlock them. Lower the cooktop into
place.
Personal Injury and
Product Damage Hazard
l
All Surface elements must be turned
off before lifting the top.
l
Make sure the cooktop is cool to touch
before lifting.
0 Be sure both support rods are fully
extended and in the locked position.
Failure to do so could result in
personal injury from the cooktop
accidentally falling.
l
Do not drop the cooktop. Damage can
result to the porcelain and the cooktop
frame.
l
Be cautious of loose wires when
cleaning
32
