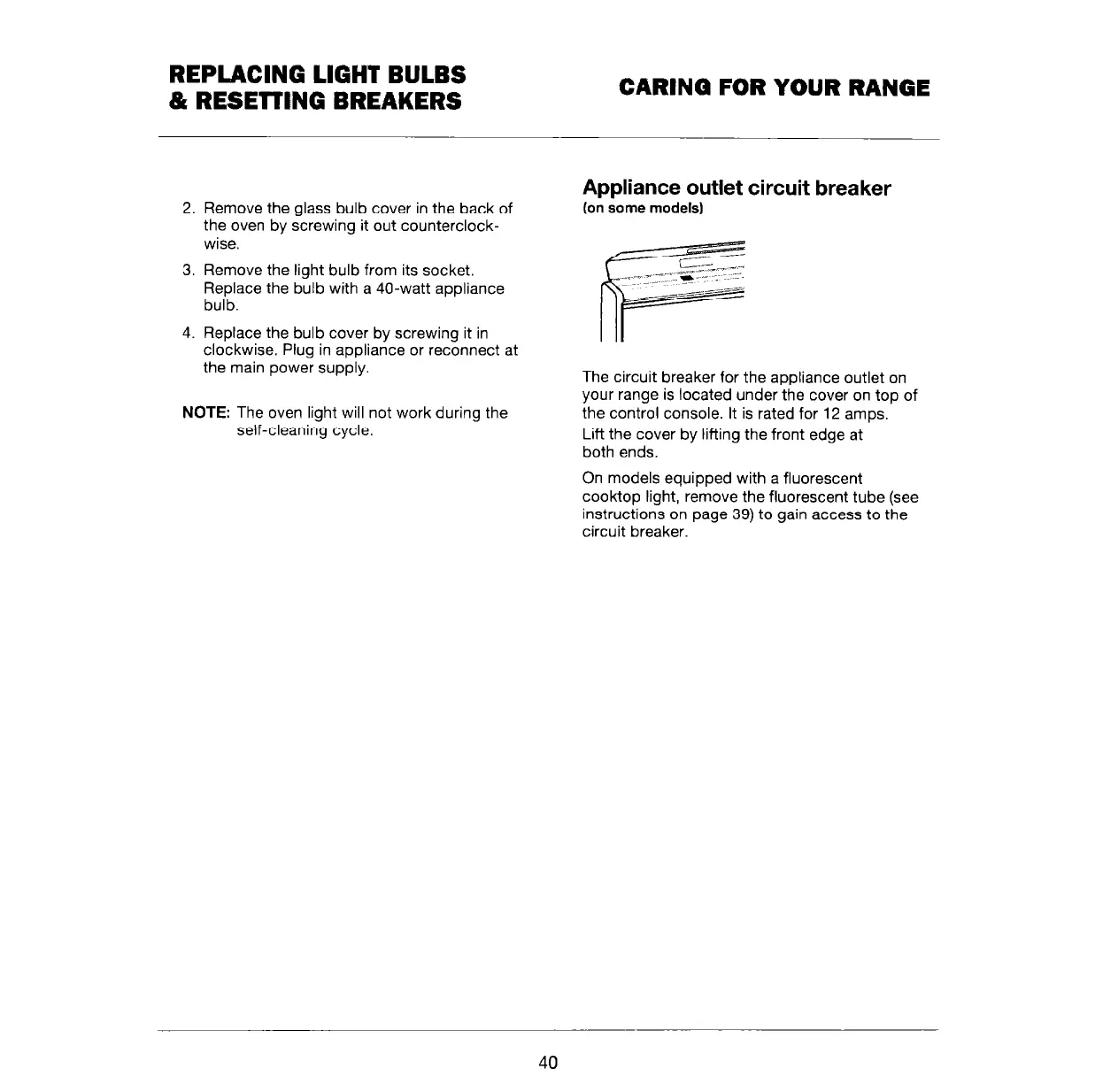

REPLACING LIGHT BULBS
& RESElllNG BREAKERS
CARING FOR YOUR RANGE
2. Remove the glass bulb cover in the back of
the oven by screwing it out counterclock-
wise.
Appliance outlet circuit breaker
(on some
models)
3. Remove the light bulb from its socket,
Replace the bulb with a 40-watt appliance
bulb.
4. Replace the bulb cover by screwing it in
clockwise. Plug in appliance or reconnect at
the main power supply.
NOTE:
The oven light will not work during the
self-cleaning cycle.
The
: circuit breaker for the appliance outlet on
your range is located under the cover on top of
the control console. It is rated for 12 amps.
Lift the cover by lifting the front edge at
both ends.
On models equipped with a fluorescent
cooktop light, remove the fluorescent tube (see
instructions on page 39) to gain access to the
circuit breaker.
40
