Rosco RB48 - Page 136

Parts Book 6. 78 ROSCO - A LeeBoy Company
ITEM PART NO. QTY DESCRIPTION
RB48 BROOM
REF.
REV.
28305, 21151, 21152
28305 ROPS CAB,RB48
0 .............. 33360............ 1.00 ............... HOOD,AIR INLET,3.75 METAL
0 .............. 29185............ 1.00 ............... UNIT ASSY,RB48,CUMMINS 3.3
0 .............. 21151............ 1.00 ............... ROPS INSTALLATION GROUP (See Detail Following)
21151 ROPS INSTALLATION
0 .............. 21304........... 1.00 ............... CONTROL CONSOLE SIDE, OUTER
0 .............. 36072........... 4.00 ............... MOUNT,RUBBER,TUBE FORM
0 .............. 36073........... 12.00 ............. WASHER,3.25ODx.80IDx.188T
0 .............. 36689R ........ 1.00 ............... RB48 ROPS (See Drawings Below & Opposite)
0 .............. 80140........... 3.00 ............... WASHER,TYPE A PLAIN,.250
0 .............. 80147........... 8.00 ............... WASHER,TYPE A PLAIN,.750
0 .............. 80160........... 3.00 ............... WASHER,SPLIT LOCK,.250
0 .............. 80192........... 3.00 ............... CSHH,.250-20X.75,GR5
0 .............. 80357........... 4.00 ............... NUT,FLEXLOC,.750-10,FULL,LT
0 .............. 81103........... 4.00 ............... CSHH,.750-10X4.00,GR8
21152 ROPS WINDSHIELD GROUP
0 .............. 36688-04....... 1.00 ............... GLASS,FRONT WINDOW
0 .............. 81252............ 6.00 ............... CSTBH,.25-20X.88,BLK
0 .............. 36688-19....... 6.00 ............... WASHER,.250,1.00 OD,BLACK
0 .............. 36688-16....... 6.00 ............... BUSHING,NYLON
0 .............. 36688-17....... 6.00 ............... GROMMET,.250
0 .............. 36688-21....... 6.00 ............... NUT,ACORN,.250-20,BLACK
0 .............. 36688-18....... 14.00 ............. SEAL,WINDOW
CAB OPTIONS
WIRE HARNESS INSTRUC-
TIONS:
INSERT MACHINE END OF
WIRE HARNESS THRU ITEM
#3, DOWN ROPS TUBE, EXIT
THRU ITEM #3 IN ROPS
TUBE, UNDER FLOOR. TIE
EXCESS HARNESS TO GRAB
HANDLE.
INSERT SWITCH END OF
WIRE HARNESS THRU ITEM
#3 IN UPPER RIGHT
CROSSMEMBER. WIRE
ENDS TO BE LOCATED IN
ACCESS PANEL AREA.
INSTALL TERMINALS INTO
HOUSING AFTER ROUTING
WIRE THRU CAB.

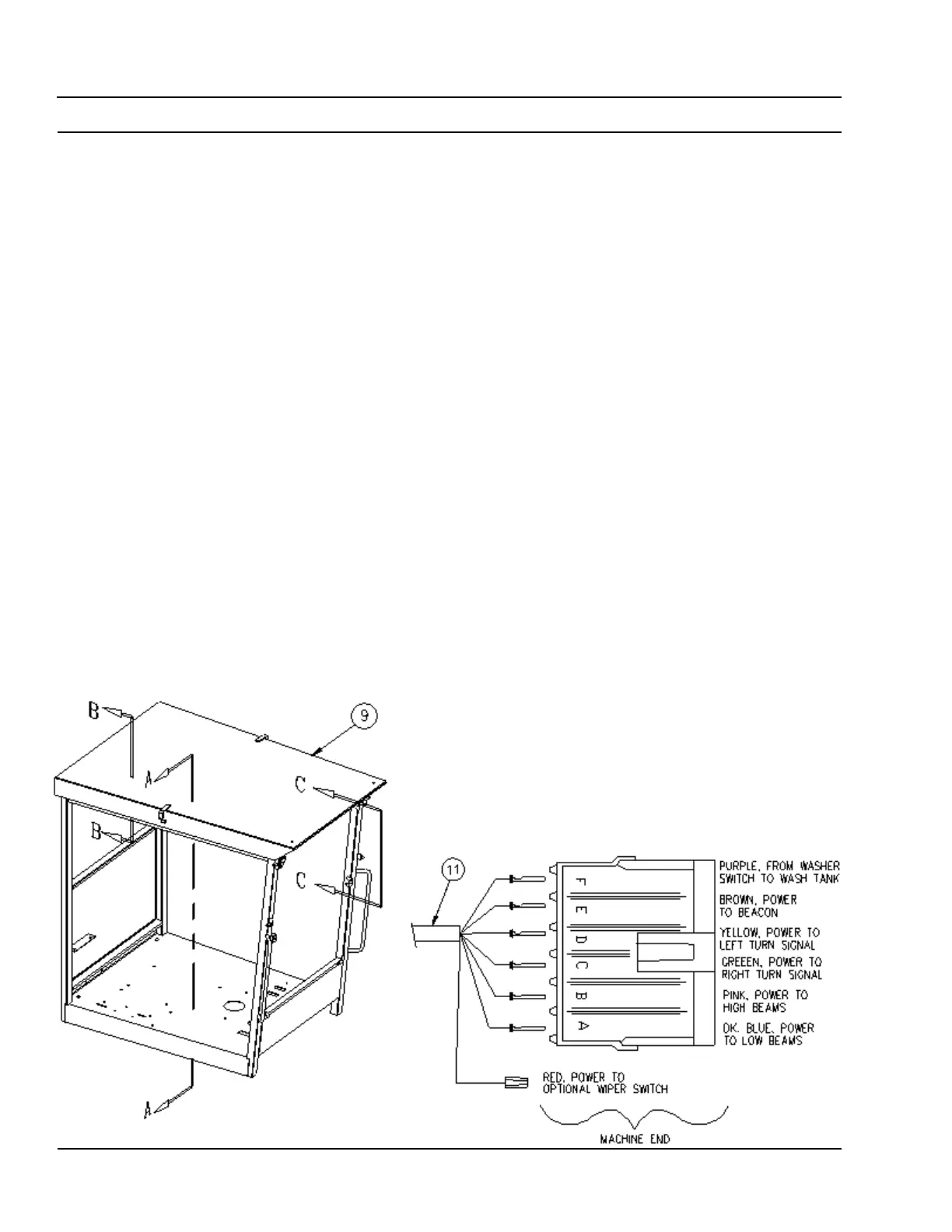

Drawing for part #36689R
