Wiring
16 AC-015 Hardware Installation and Programming Manual
5. Wiring
The following figures show various wiring scenarios.

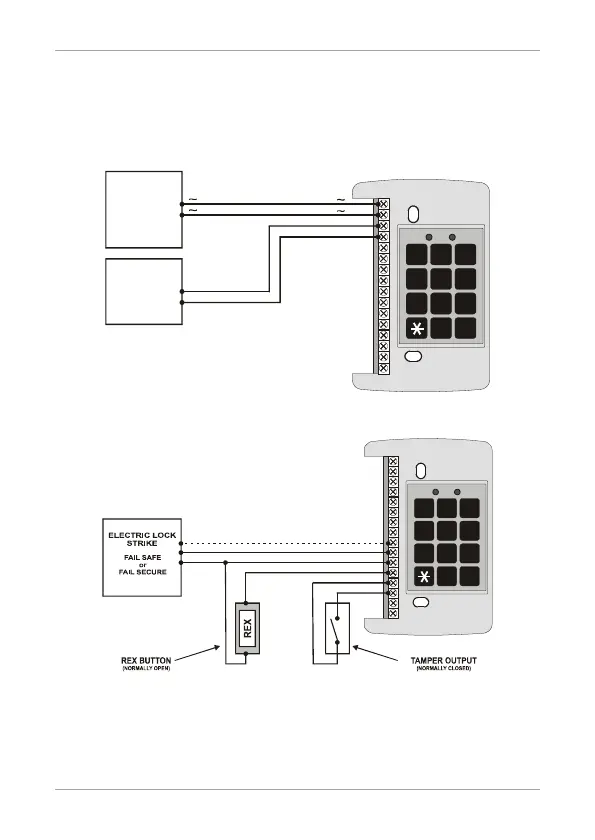

Figure 2: Power Wiring
0
8
5
21
4 6
3
97
#
MODE
DOOR
POWER SUPPLY
FROM
TRANSFORMER
16V AC (1.5A, 25VA)
(+)
(-)
12V DC LEAD ACID
BATTERY
UP TO 7 AH
RECOMMENDED
(+)
(-)
Figure 3: Typical Lock and Option Wiring
0
8
5
21
4 6
3
9
7
#
MODE
DOOR
REX
(-)
N.O.
Common
N.C.
N.C.
