16
ROTEX GCU compact -
4 x Set-up and installation
4.2.2 Operation partially independent of ambient air
Alternative to set-up variant 5
The ROTEX GCU compact is operated with separately routed
inlet air/ flue gas lines (2 line system).
– Combustion air inlet is routed from the outside via the ade-
quately sealed inlet air through the external wall. The air inlet
line should be
sized so that the suction resistance at nomi-
nal power is less than 50 Pa.
–F
lue gas dissipation to the outdoors is via the chimney or an
installation shaft. If the connection line between the ROTEX
GCU compact and the installation shaft is single-walled or is
not completely surrounded by combustion air, a ventilation
opening of at least 150 cm
2
is required.
Appropriate measures must be taken to ensure that the
burner cannot be operated if the ventilation opening is closed.
– The installation shaft where the flue gas line runs must be rear
ventilated. In the
lower area there must be a rear ventilation
opening of at least 150 cm
2
must be provided.
The cross-section of the installation shaft must be sized so
that betwe
en the external wall of the flue gas line and the
internal face of the installation shaft the following mini-
mum distance must be maintained:
– with a rectangul
ar shaft cross-section: 2cm
– with round shaft cross-section: 3cm.
The rear ventilation opening must not be in rooms where a
positive pressure is
generated (e.g. by controlled apartment
ventilation, a tumble-drier etc.).
4.2.3 Ambient air dependent operation
Set-up version 6
The ROTEX GCU compact can be connected even with venti-
lation and air-conditioning. Thereby, only the inner flue gas pipe
(plastic pipe Ø 60 mm) of the concentric air-flue gas pipe is con-
nected to the flue gas line. The device sucks the combustible air
from the
installation room through the ring-shaped gap of the
jacket pipe.
For the flue gas routing to the outdoors, the shaft sizing and the
rear ventilation, the same conditions apply as in section 4.2.2.
A ventilation opening to the outsi
de of 150 cm
2
is imperative.
4.3 Transport and delivery
The ROTEX GCU compact is delivered on a pallet. All industrial
trucks, such as lifting trucks and forklift trucks, are suitable for
transporting it.
Scope of delivery
– ROTEX GCU compact (preassembled),
– Bag of accessories (see fig. 4-8),
– Outside temperature sensor (RoCon OT1), for weather-con-
trolled regulat
ion.
– Document pack.
Recommended accessory
– Safety group (SGB GCU compact, 15 70 46) with pres-
sure gauge, safety valve, automatic bleeding, filling cock,
connection fittings).
Additional accessories see ROTEX price list.
4.4 Installing the Gas Combi Unit compact
4.4.1 Selecting the installation site
The place of installation for the ROTEX GCU compact must meet
the following minimum requirements.
Installation surface
– The base must be level and smooth and have a sufficient
ground load-bearing capacity, of 1050 kg/m² plus safety
factor. Instal
l a pedestal if necessary.
– Observe the set-up dimensions (see section 4.1).
Installation room
– There are no special conditions for ventilation of the installa-
tion room for operation independent of the ambient air (using
a concentric air/flue system).
– In the event of limited room-air independent operation
and in
the event of room-air dependent operation, the installation
room must have a ventilation opening of at least 150 cm
2
to
the outside. If the flue gas line goes via an installation shaft to
the outside, it must be rear ventilated (see section 4.2.2).
– For partial ambient air-independent and for ambient air-
dependent mode, the in
stallation room must be free from
aggressive vapours (e.g. hair spray, perchloroethylene, car-
bon tetrachloride), heavy dust formation and high atmos-
pheric humidity (e.g. washhouse).
– Outdoor installation is only possible to
a limited extent. The
storage tank must not be exposed to continuous direct
sunlight, as the UV radiation and the effects of the weather
will damage the plastic.
– Installation room must be continu
ously protected from frost.
In some cases,
the resonance in the flue system can
amplify the noise at the mouth of the flue gas pipe. The
noise level can be effectively reduced with the applica-
tion of a silencer (E8 MSD, 15 45 78 bzw.
E11 MSD, 15 45 79).
WARNING!
The ROTEX GCU compact is top heavy when not
fill
ed, it can tilt over during transport. This can pose a
risk to persons or damage the machine.
Ɣ Correctly secure the ROTEX GCU compact,
transport carefully, use the handles.

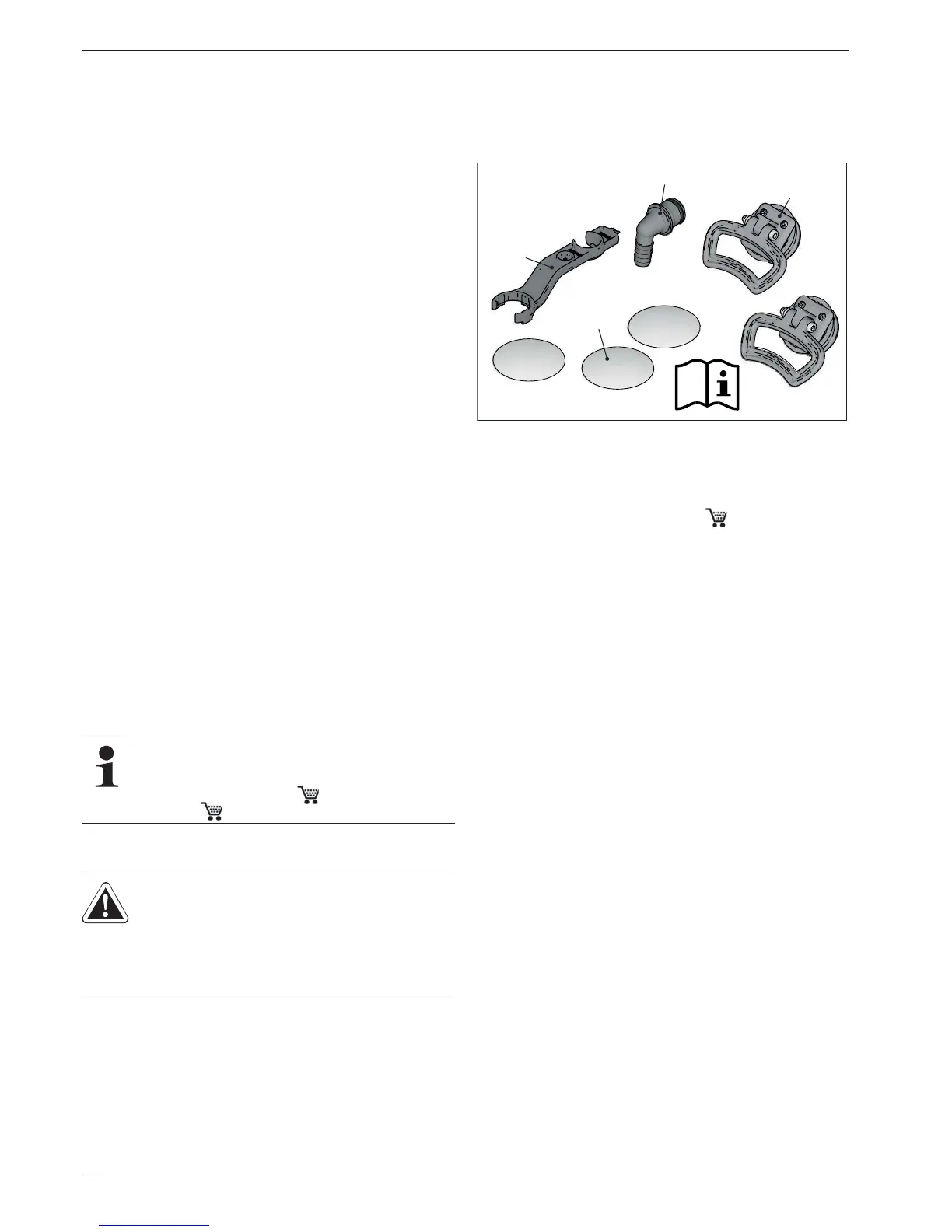

A Handles (only required for
transport)
B Cover screen
C Hose connection piece for
safety overflow
D Spanner
Fig. 4- Contents of bag of accessories
$[
%[
&[
'[
