Rotex RHYKOMB33AA Installer's Reference Guide

5 About the units and options
Installer reference guide
12
RVLQ05+08CAV4 + RHYHBH05AA + RHYHBH/X08AA +
RHYKOMB33AA
ROTEX HPU hybrid
4P355635-1 – 2013.05
Connection kit for the tank (EKEPHT3H)
Use the connection kit to connect the domestic hot water tank to the
indoor unit.
For installation instructions, see the installation manual of the
connection kit.
Drain pan kit (EKHYDP1)
The drain pan kit is required for heating/cooling units. It does NOT
have to be used with heating only units.
For installation instructions, see the installation manual of the drain
pan kit.
Mounting jig
Preassembled installation set for easy installation of the hybrid. The
jig can be installed before installing the unit.
Valve kit
A set of valves for easy connection to field piping.

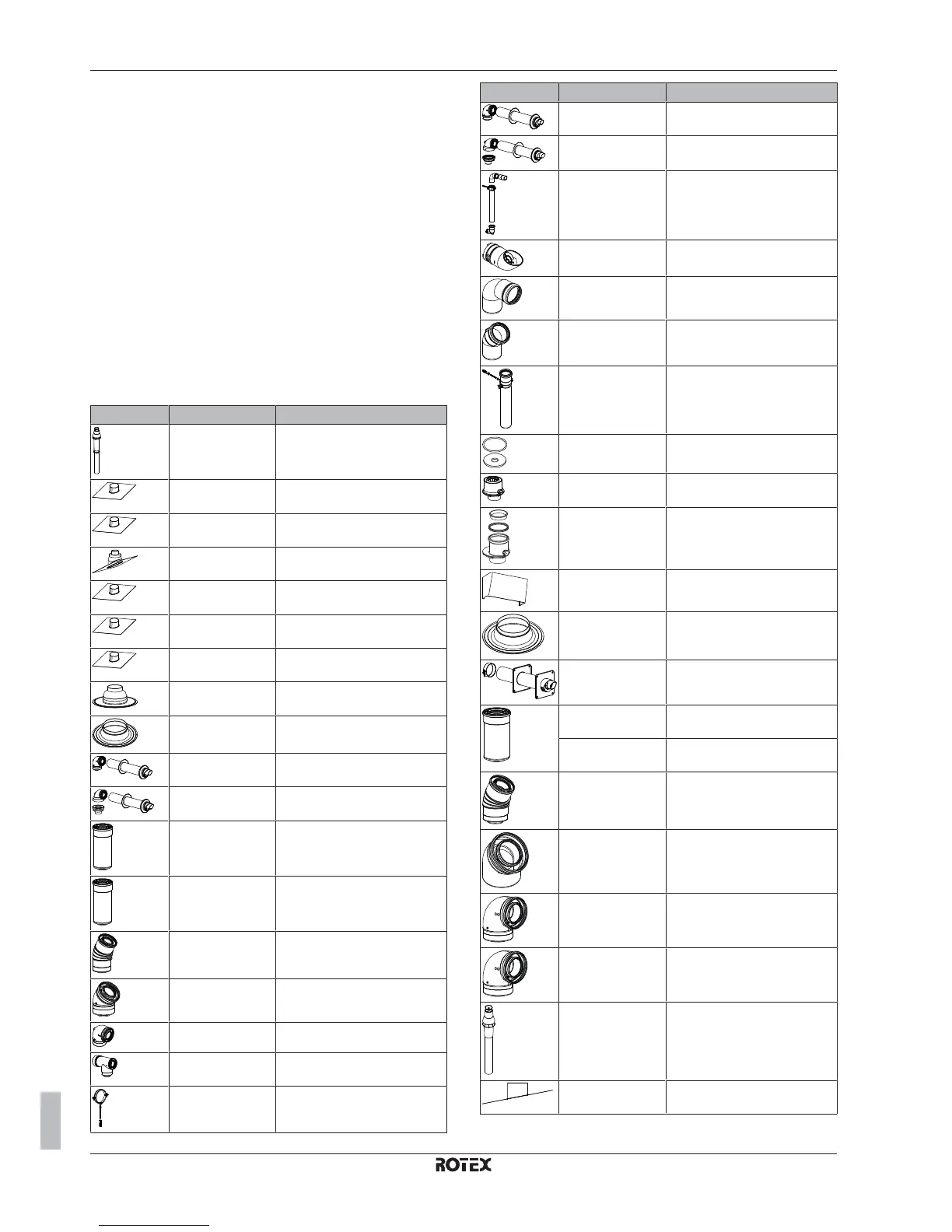

5.2.3 List of options for gas boiler
Accessories Part number Description
EKFGP6837 Roof terminal PP/GLV 60/100
AR460
EKFGS0518 Weather slate steep Pb/GLV
60/100 18°-22°
EKFGS0519 Weather slate steep Pb/GLV
60/100 23°-17°
EKFGP7910 Weather slate steep PF 60/100
25°-45°
EKFGS0523 Weather slate steep Pb/GLV
60/100 43°-47°
EKFGS0524 Weather slate steep Pb/GLV
60/100 48°-52°
EKFGS0525 Weather slate steep Pb/GLV
60/100 53°-57°
EKFGP1296 Weather slate flat Aluminum
60/100 0°-15°
EKFGP6940 Weather slate flat Aluminum
60/100
EKFGP2978 Wall terminal kit PP/GLV
60/100
EKFGP2977 Wall terminal kit low profile PP/
GLV 60/100
EKFGP4651 Extension PP/GLV
60/100×500 mm
EKFGP4652 Extension PP/GLV
60/100×1000 mm
EKFGP4664 Elbow PP/GLV 60/100 30°
EKFGP4661 Elbow PP/GLV 60/100 45°
EKFGP4660 Elbow PP/GLV 60/100 90°
EKFGP4667 Meas. tee with inspection panel
PP/GLV 60/100
EKFGP4631 Wall bracket Ø100
Accessories Part number Description
EKFGP1292 Wall terminal Kit PP/GLV
60/100
EKFGP1293 Wall terminal kit low profile PP/
GLV 60/100
EKFGP1294 Plume management kit 60 (UK
only)
EKFGP1295 Flue deflector 60 (UK only)
EKFGP1284 PMK elbow 60 90 (UK only)
EKFGP1285 PMK elbow 60 45° (2 pieces)
(UK only)
EKFGP1286 PMK extension 60 L=1000
includes bracket (UK only)
EKHY075787 Propane set
EKHY090717 Concentric connection set
80/125
EKHY90707 Dual pipe conversion set
EKHY093467 Cover plate for boiler
EKFGW5333 Weather slate flat aluminum
80/125
EKFGW6359 Wall terminal kit PP/GLV
80/125
EKFGP4801 Extension PP/GLV
80/125×500 mm
EKFGP4802 Extension PP/GLV
80/125×1000 mm
EKFGP4814 Elbow PP/GLV 80/125 30°
EKFGP4811 Elbow PP/ALU 80/125 45°
EKFGP4810 Elbow PP/ALU 80/125 90°
EKFGP4820 Inspection elbow Plus PP/ALU
80/125 90° EPDM
EKFGP6864 Roof Terminal PP/GLV 80/125
AR300 RAL 9011
EKFGT6300 Weather slate steep Pb/GLV
80/125 18°-22°
