Rotex RHYKOMB33AA Installer's Reference Guide

7 Installation
Installer reference guide
43
RVLQ05+08CAV4 + RHYHBH05AA + RHYHBH/X08AA +
RHYKOMB33AA
ROTEX HPU hybrid
4P355635-1 – 2013.05
7.10.5 Applicable materials
Only use the materials specified in the following table.
Device category Material Supplier per country
D B I
C
13
All materials Daikin/ROTEX Daikin/ROTEX Daikin/ROTEX
C
33
C
53
C
43
All materials Daikin/ROTEX Daikin/ROTEX Daikin/ROTEX
C
63
All materials
(a) (b) (a)
C
83
▪ Inlet grille
▪ Main pipe
▪ Other parts
Daikin/ROTEX Daikin/ROTEX Daikin/ROTEX
C
93
All materials Daikin/ROTEX Daikin/ROTEX Daikin/ROTEX
(a)
Gas exhaust/air intake parts can be bought from the 3
rd
party. All parts purchased from an external supplier MUST comply with
EN14471.
(b)
NOT allowed in Belgium.

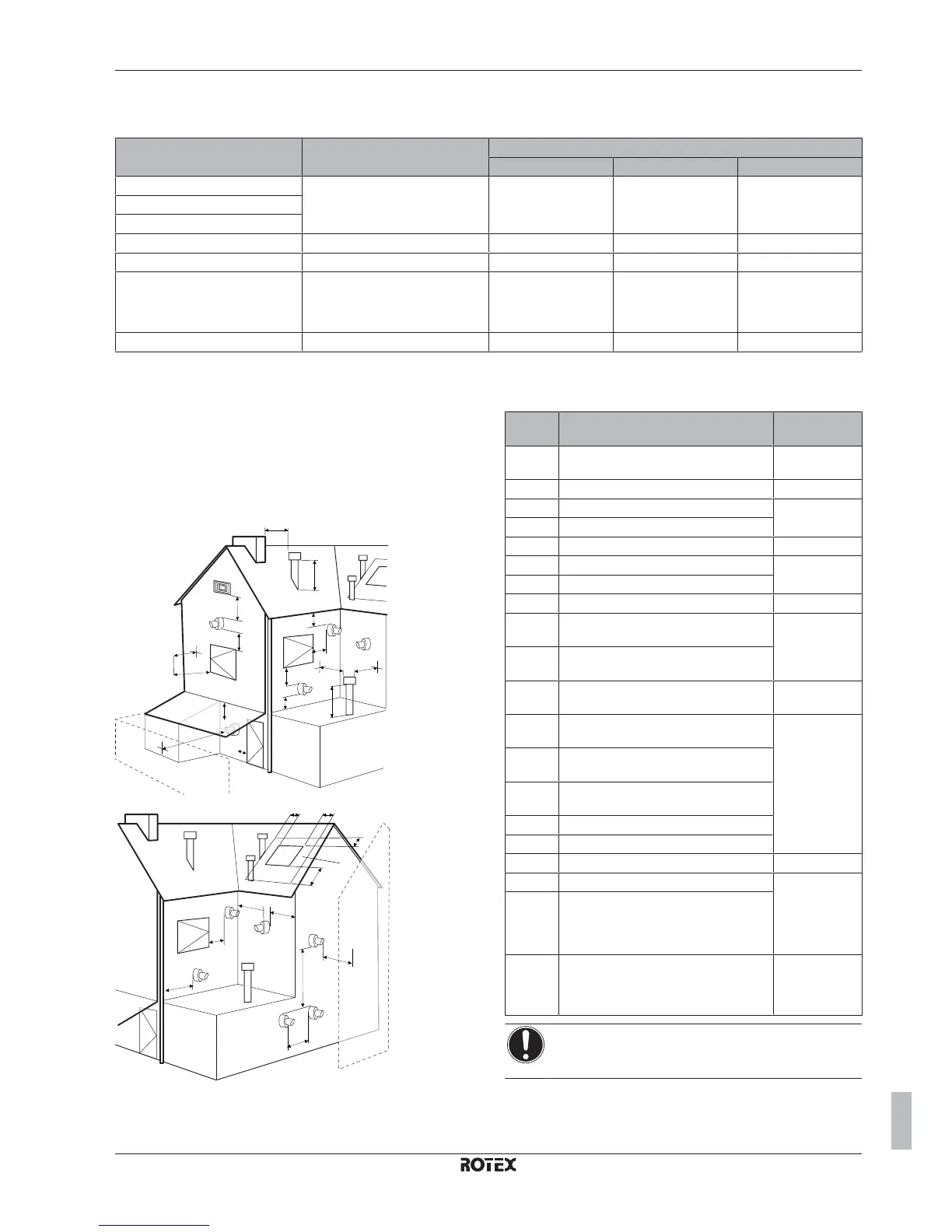

7.10.6 Flue pipe position
Especially for UK:
Only use flue products approved by the boiler manufacturer, which
can be bought from the supplier of your boiler.
Refer to the field supplied accessories for all available accessories.
P
S
C
B
A
M
R
D
J
Q
G
A
Q
Q
N
P
T2 T2
T2
T1
H
T
I
K
L
F
F
N
E
Terminal position Minimum
distance (mm)
A Directly below an open able window or
other opening (e.g. air brick)
300
B Below gutters, soil pipes or drain pipes 75
C Below eaves 200
D Below balconies or car front roofs
E From vertical drain pipes and soil pipe 150
F From internal or external corners 300
G Above ground, roof or balcony level
H From a surface facing a terminal 600
I From a terminal discharging towards
another terminal
1200
J From an opening in a car port (e.g.
door, window) into a dwelling
K Vertically from a terminal on the same
wall
1500
L Horizontally from a terminal on the
same wall
300
M Above an opening, air brick, opening
windows, etc.
N Horizontally to an opening, air brick,
opening windows, etc.
P Above roof level (to base terminal)
Q From an adjacent wall to flue
R From an adjacent opening window 1000
S From another roof terminal 600
- From an external boundary. Note: If the
terminal is facing a boundary, it is
recommended that an anti-plume kit be
fitted.
T
T1
T2
Terminals adjacent to windows or
openings on pitched and flat roofs: The
flue should NOT penetrate this area.
2000
600
NOTICE
The boiler manufacturer cannot be held responsible for
atmospheric conditions when siting flue terminals.
