Rotex RHYKOMB33AA Installer's Reference Guide

7 Installation
Installer reference guide
22
RVLQ05+08CAV4 + RHYHBH05AA + RHYHBH/X08AA +
RHYKOMB33AA
ROTEX HPU hybrid
4P355635-1 – 2013.05
283
580
<150
<150
(mm)

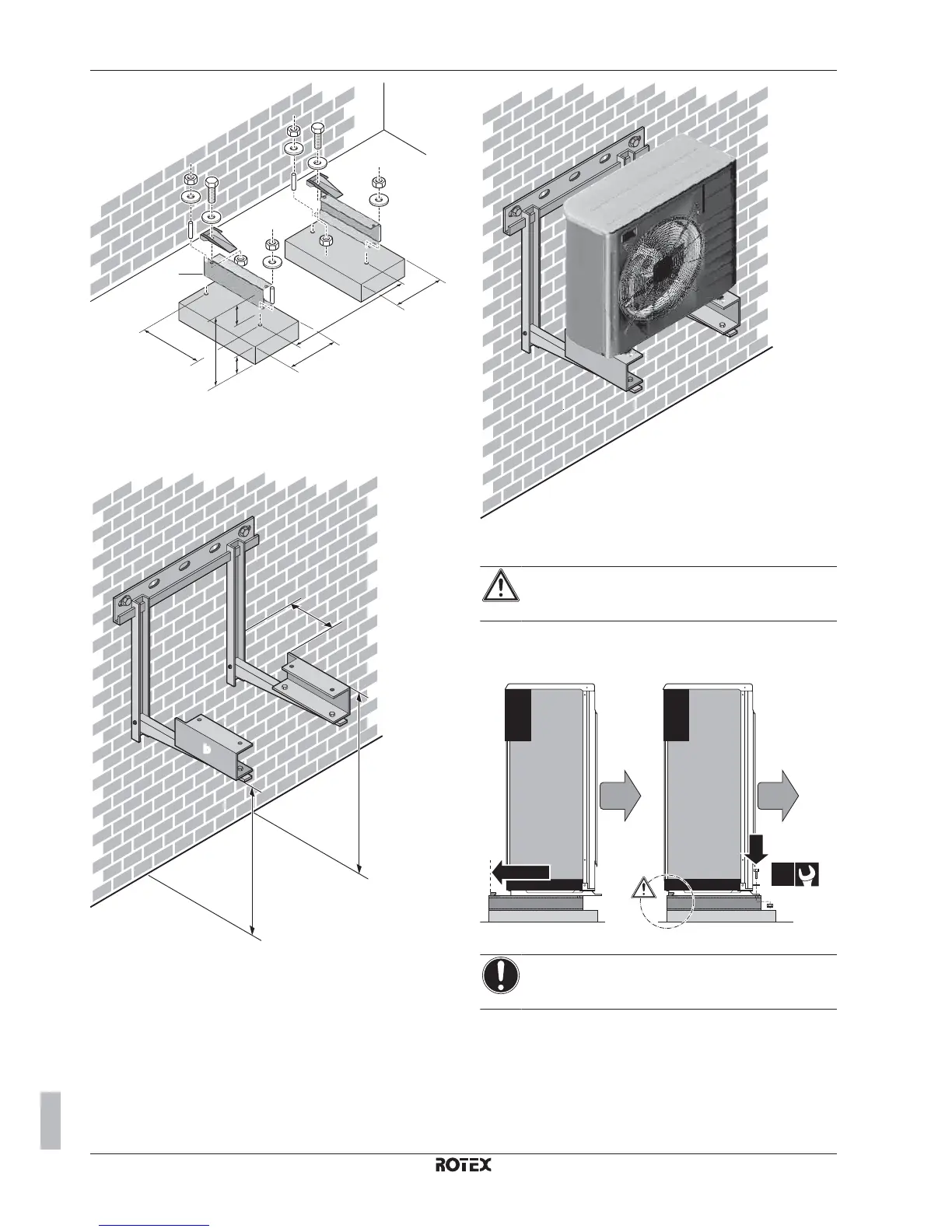

>300
100
a
b
a
Maximum snowfall height
b
EKFT008CA option kit
If the unit is installed on brackets to the wall, it is advised to use the
EKFT008CA option kit and to install the unit as follows:
>250
>300
>250
(mm)
a
b
a
Maximum snowfall height
b
EKFT008CA option kit
7.2.2 To install the outdoor unit
CAUTION
Do NOT remove the protective cardboard before the unit is
installed properly.
1 Lift the outdoor unit as described in "4.1.2 To remove the
accessories from the outdoor unit" on page 8.
2 Install the outdoor unit as follows:
2x
2
aa
1
a
Air outlet
NOTICE
The pedestal MUST be aligned with the backside of the
U-beam.
3 Remove the protective cardboard and instruction sheet.
