16 Technical data
16.1 Dimensions and service space

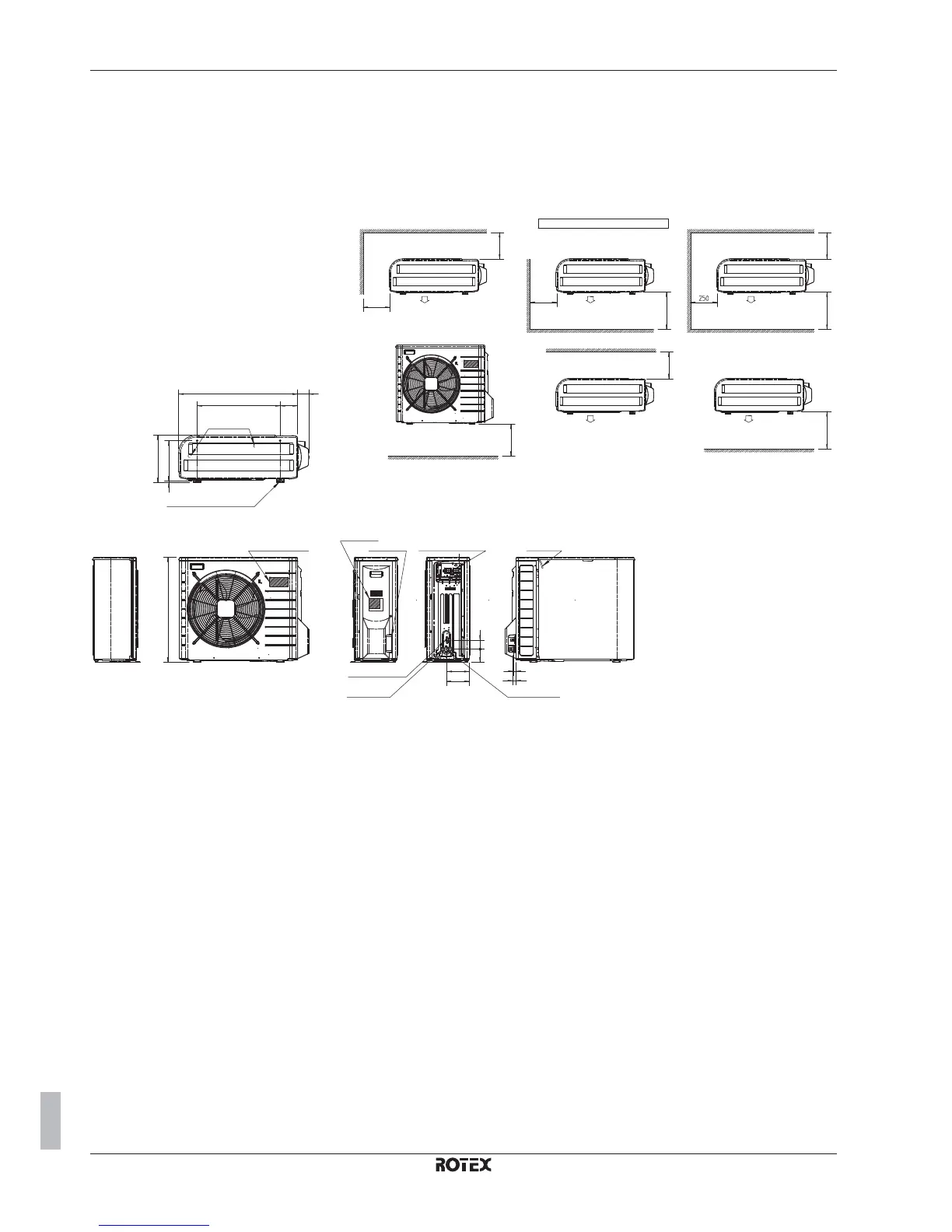

16.1.1 Dimensions and service space: Outdoor unit
3TW60814-1B
250
250 250
300
333
28310
250
350
250350
350
250
735
6491
160
155
23
18
580
832
121
78
(Ø6.4 CuT)
(Ø15.9 CuT)
4-HOLES FOR ANCHOR BOLTS
(M8 OR M10)
BRAND NAME LABEL
DRAIN OUTLET
NAME PLATE
WIRING INLET
TERMINAL STRIP
WITH EARTH TERMINAL
OUTDOOR AIR TEMPERATURE
THERMISTOR
LIQUID STOP VALVE
SERVICE PORT
GAS STOP VALVE
IN CASE OF REMOVING
STOP VALVE COVER
MINIMUM SPACE FOR AIR PASSAGE
WALL HEIGHT ON AIR OUTLET SIDE
= LESS THAN 1200
