Roth Softline – Controller 8 ch Master - Powering On and Language Setup

User Manual - 5/32

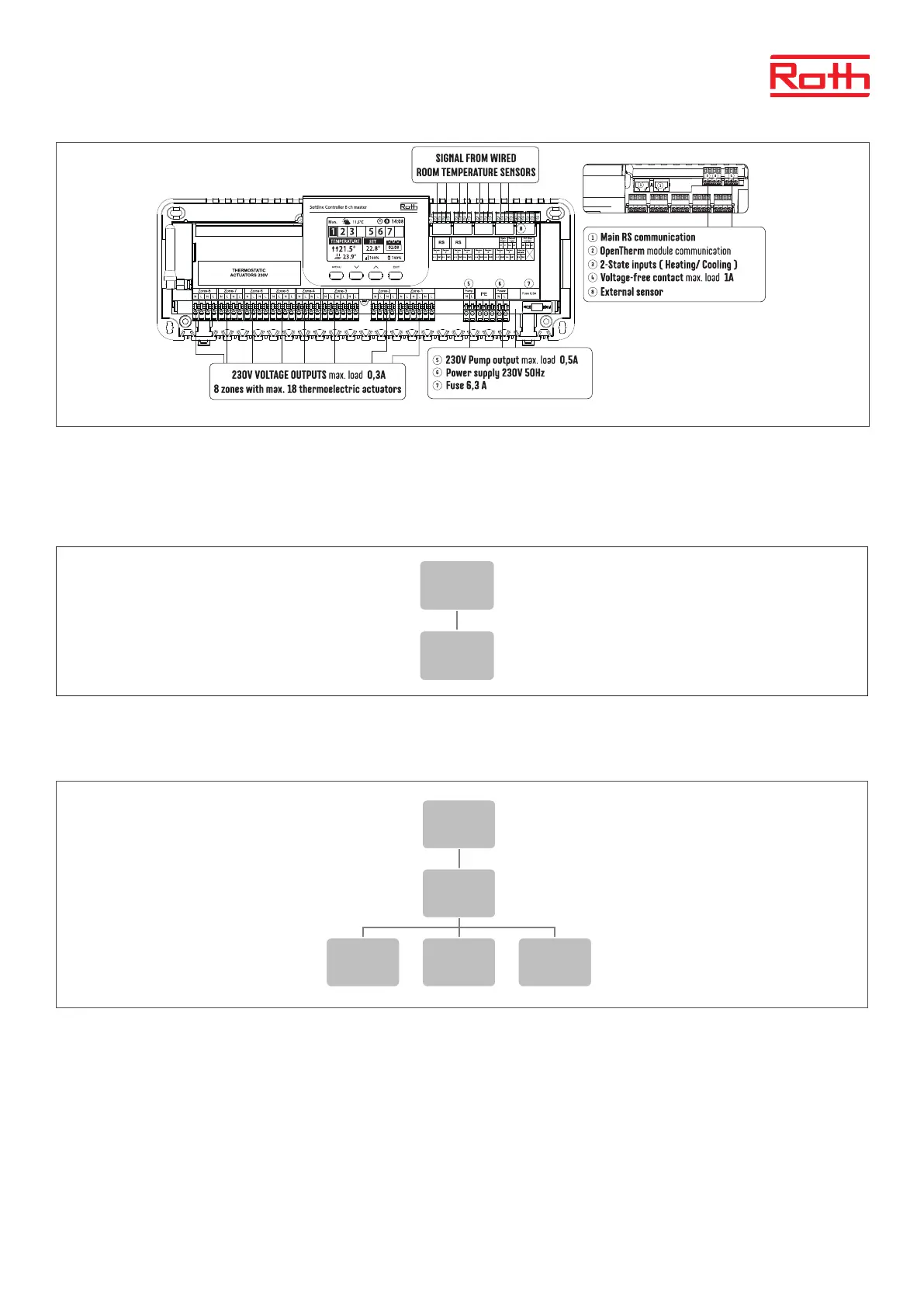

If required up to 4 actuators can be connected to the same output/zone (32 actuators in total on the controller) Meaning: An output with 2, 3 or 4
terminals can all be connected with up to 4 actuators.
Step 2. Switch on the power supply and set your language
Press MENU button and use the button ▼ to select “Language selection”. Use the button ▼ to select your language and conrm with MENU button.
Step 3. Check if the devices work properly Step 4. Set current time and date
Once all the devices has been connected, switch on the power supply. You can choose to use the “Manual mode” function to check if each device
works properly, but it is not necessary to do this.
Press MENU button and use the button ▼ to select “Manual mode”. Select “Valve 1” with MENU button – and carry on to all other valve’s,
potential-free contact and pump. When all are activated all connected valves should open (takes around 5 min.), pump should be running (delay
2 min.) and the heatsource should be activated (delay 2 min.).
1
Steg 2. Slå på strömförsörjningen och ställ in ditt språk
Steg 3. Kontrollera om enheterna fungerar korrekt
Steg 4. Ange aktuell tid och aktuellt datum
Menu
Manual
mode
Valves 1-8
Potential-
free
contact
Pump
Menu
Language
version
Menu
Time
settings
Automatic
Clock
settings
Date
settings
1
Steg 2. Slå på strömförsörjningen och ställ in ditt språk
Steg 3. Kontrollera om enheterna fungerar korrekt
Steg 4. Ange aktuell tid och aktuellt datum
Menu
Manual
mode
Valves 1-8
Potential-
free
contact
Pump
Menu
Language
version
Menu
Time
settings
Automatic
Clock
settings
Date
settings
