3.3 Electric connection

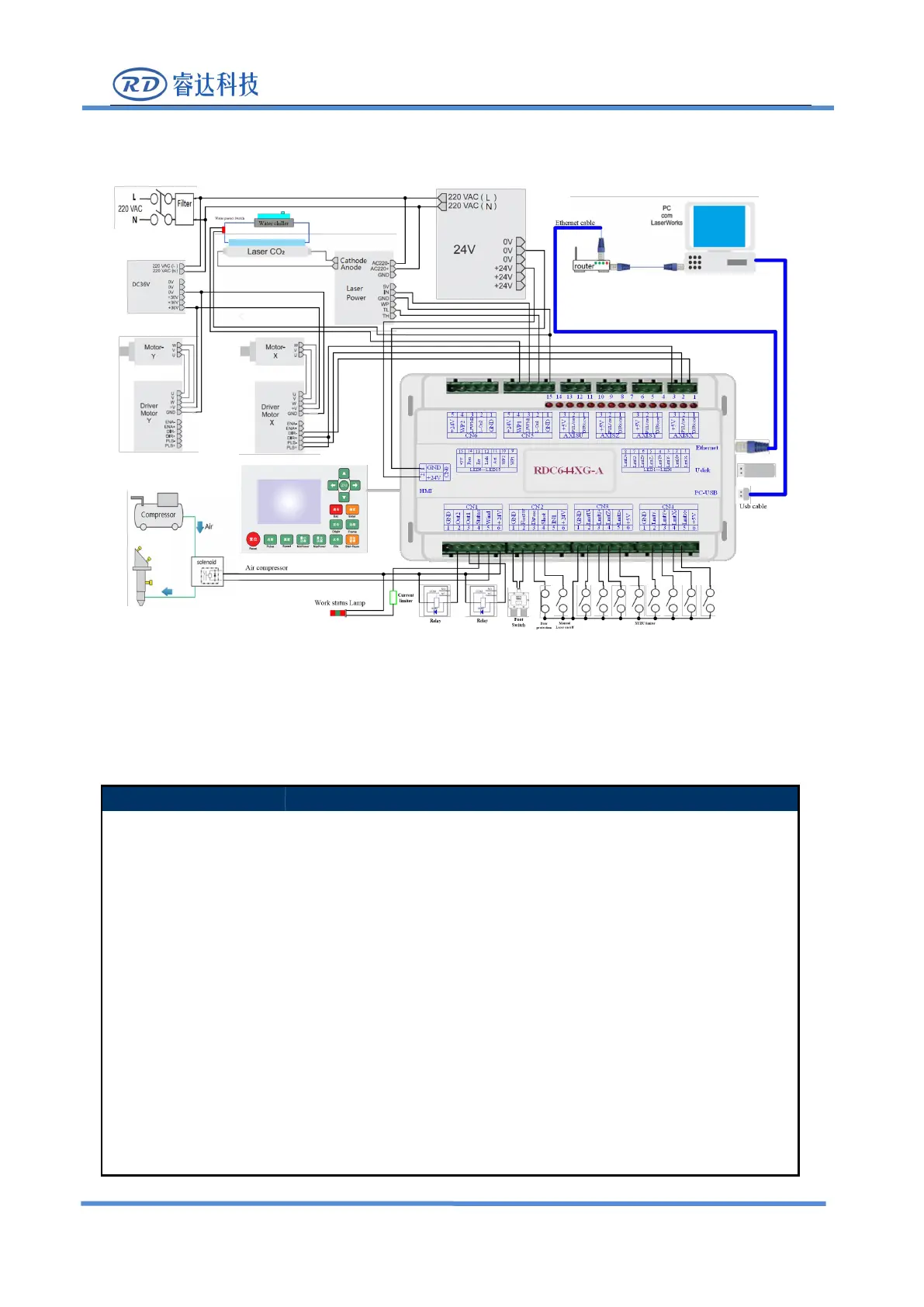

Fig
ure 3.3-1 electric connection
3.4 Lamp instruction
RDC6442G have fifteen red lamps:
LED NUMBER
NAME
SENSE
LED1
LmtX-
X negative limit indicator
LED2
LmtX+
X positive limit
LED3
LmtY-
Y negative limit
LED4
LmtY+
Y positive limit
LED5
LmtZ-
Z negative limit
LED6
LmtZ+
Z positive limit
LED7
LmtU-
U negative limit
LED8
LmtU+
U positive limit
LED9
Wp1
Indication for water protect 1
LED10
Wp2
Indication for water protect 2
LED11
Act
Ethernet communication
LED12
Link
Ethernet connection
LED13
Err
error in controller hardware
LED14
Run
the normal running status
LED15
+5V
+5V power supply
