7.1 Input
The two water protection inputs are 24V logic level; all other inputs are compatible with 5V/12V/24V
logic level.

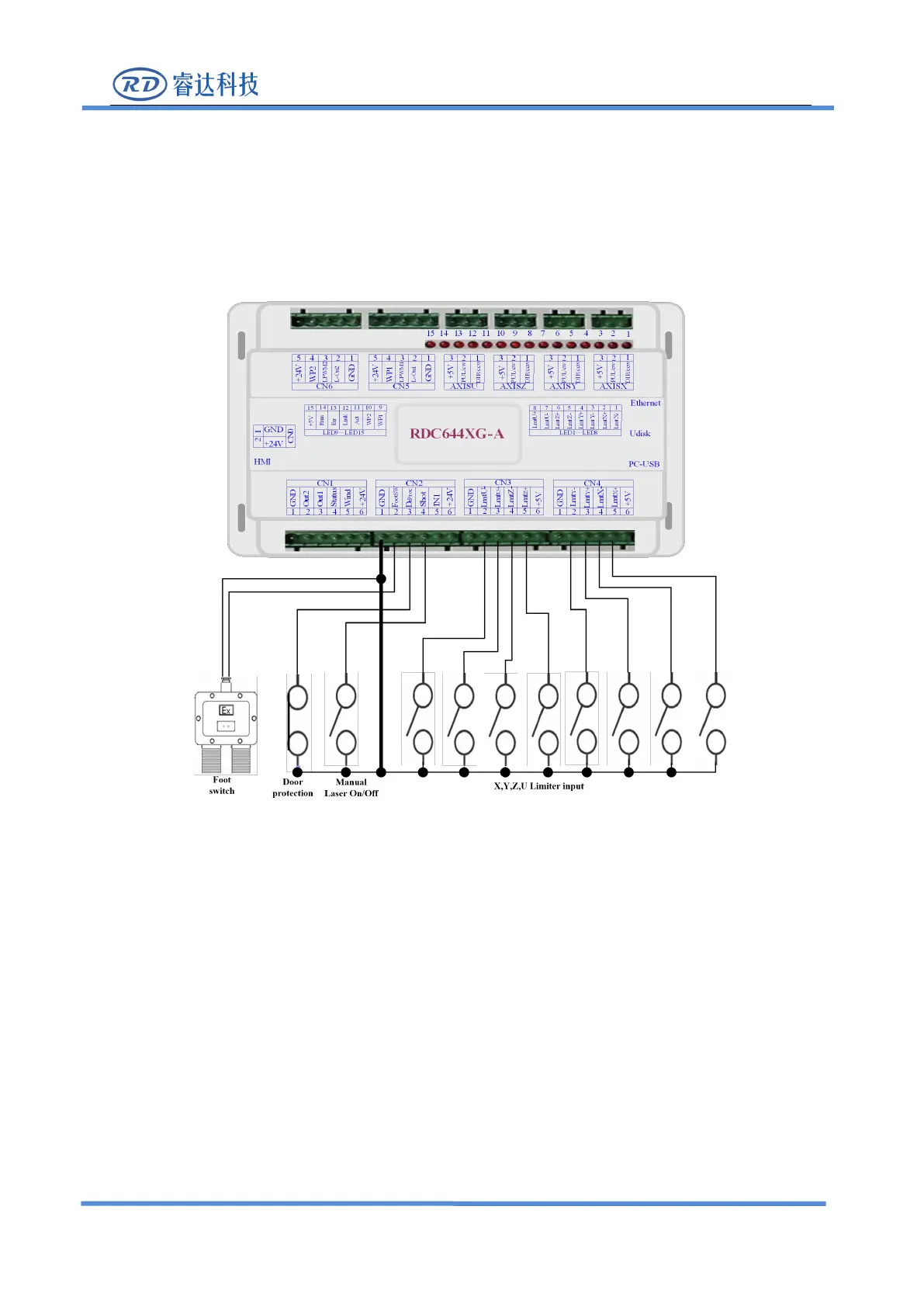

Input connection shown as below
Figure 7.1-1 example of input
7.2 Output
All outputs are isolated through the optocoupler, and 500mA current for each, OC gate output, each
can directly drive the 6V/24V relay, led lamp, buzzer etc.
Output connection shown as below
