SAIC MOTOR MG3 2011 - Instruments and Controls Overview

InstrumentsandControls
InstrumentsandControlsOverview

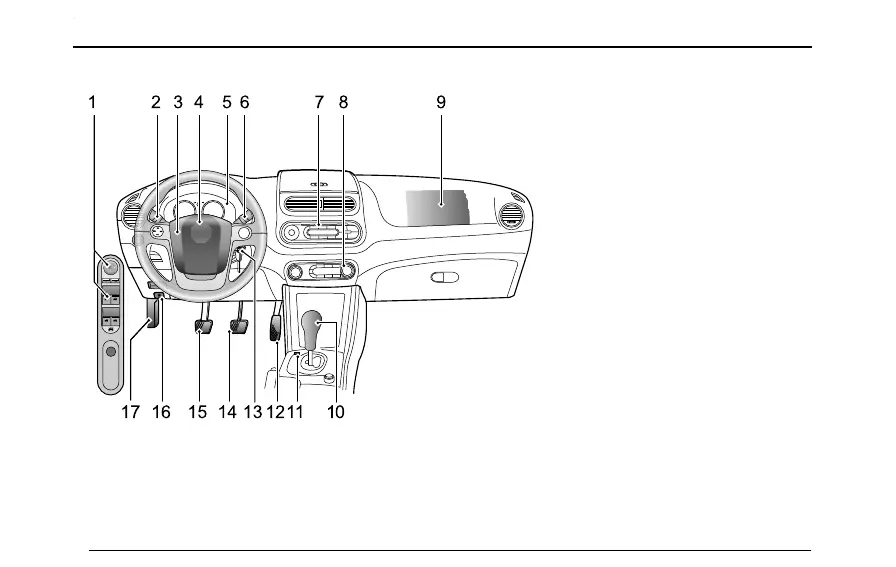

L R
94 65 7 82 31
16 15 14 12 1113 1017
1ElectricExteriorMirrorand
WindowControls
2MainLightsSwitch/Direction
Indicators/MainBeamLever
Switch/FrontFogLights
*
/Rear
FogLightsSwitch
3
Horn
4DriverAirbag
5InstrumentPack
6Wiper/WasherLeverSwitch
7
EntertainmentSystem
8HeatingandAirConditioner
ControlSwitch
9FrontPassengerAirbag
10GearShiftLever
11
T ransmissionModeSwitch
*
12AcceleratorPedal
13IgnitionSwitch
14
BrakePedal
15
ClutchPedal
*
16
FuelFillerFlapReleaseHandle
17BonnetReleaseHandle
6
