2. Montage:

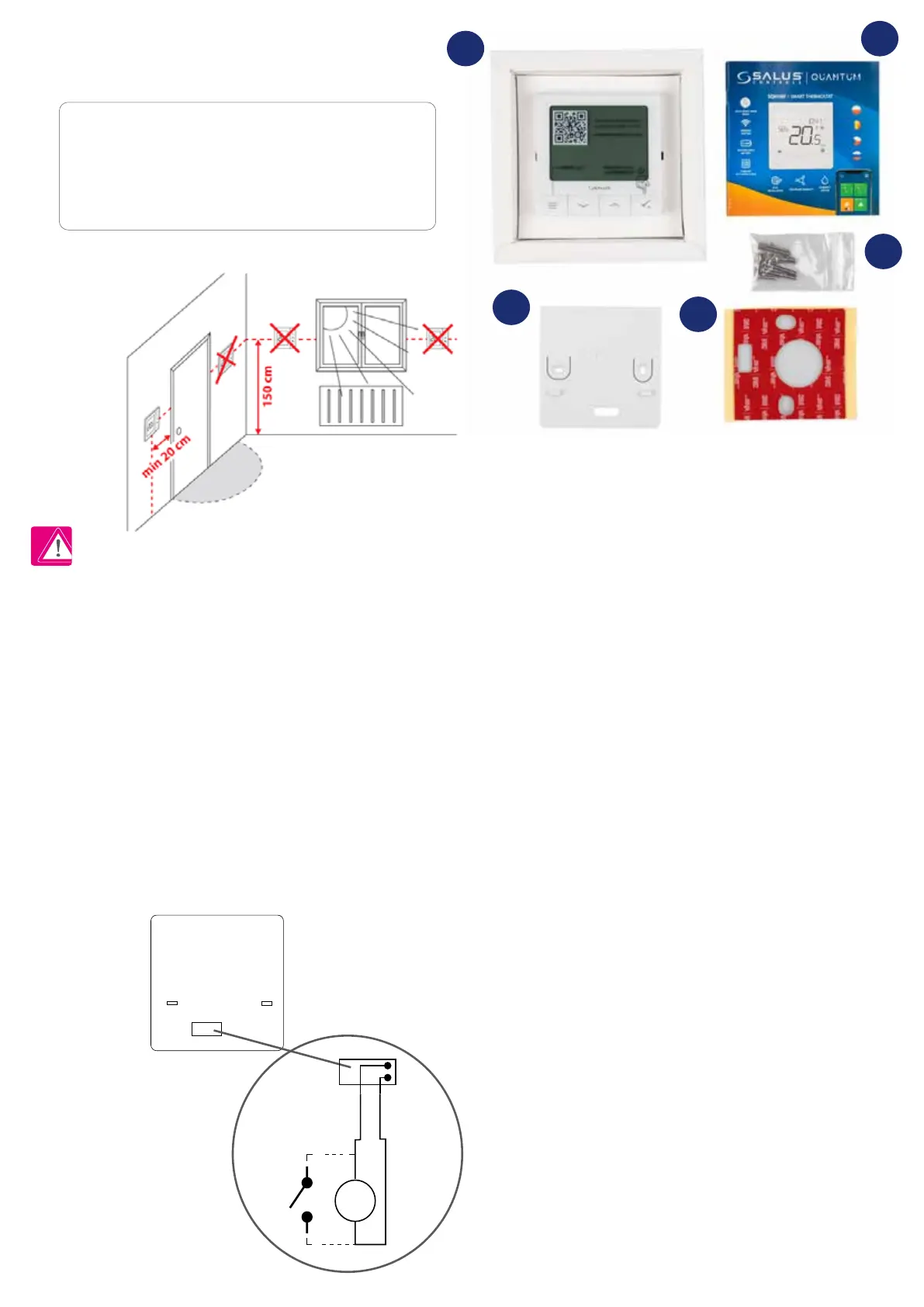

2.1 Package Content:

1) SQ610RF Quantum thermostat

2) Wall mounting plate

3) Self-adhesive mounting tape

4) Mounting screws

5) Manual instruction

2.2 Proper thermostat location

Please note:

Wall Mounting

2.3 Wiring diagram (SQ610RF Quantum thermostat)

S1, S2 terminals:

- air or oor temperature sensor

- external volt-free contact to connect any

ON/OFF switch or occupancy sensor (hotel card)

Symbols explanation:

S – volt-free contact

T – temperature sensor eg. FS300

Mounting: to mount thermostat you can use accesories included with the set (mounting screws or self-adhesive tape). Remove back cover to mount

the plate to the wall. After this just attach thermostat to the plate (it has built-in magnet).

The ideal position to thermostat mounting is about 1,5m under oor level far from heating or cooling sources.

Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft.

Because of re and explosion risk there is not allowed to use thermostat in atmosphere of explosive gases and ammable liquids (eg. coal dust). In case

if any of listed dangers occur you have to use additional protection measures – anti-dust and explosive gases (tight cover) or prevent their formation.

Furthermore, thermostat can’t be used in condensation of water vapor conditions and be exposed to water action.
