Sam4s ER-5200M Service Manual

SAM4S ER-5200 Series 12-1

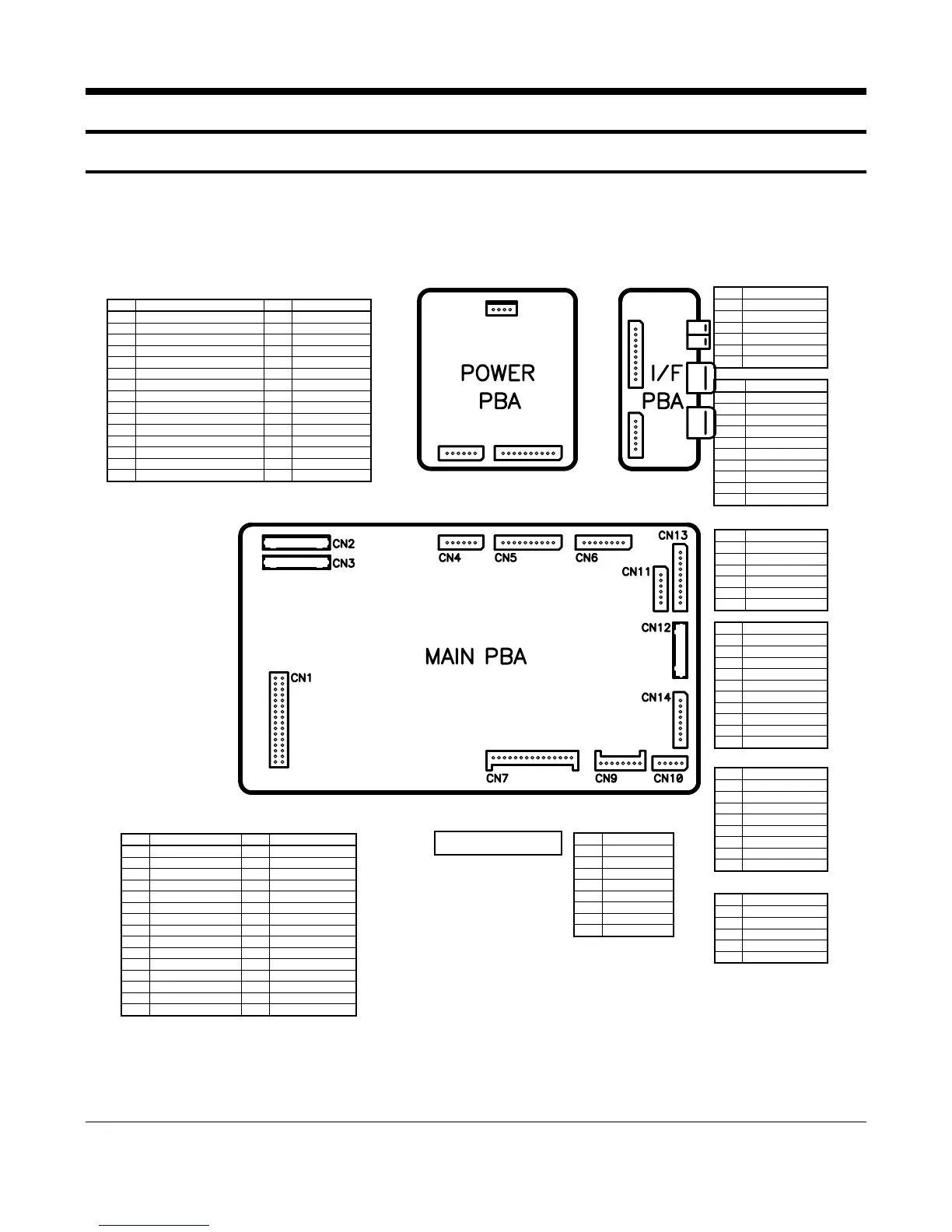

12 Wiring Diagram
12-1 Wiring Pin Connection
CN1 = Main to Fiscal PBA I/F
No. Signal Name No. Signal Name
1 FA17 2 FA16
3 FA7 4 FA3
5 FA6 6 FA2
7 FA5 8 FA1
9 FA4 10 FA0
11 CS_FISCAL EPROM 12 FA15
13 GND 14 FA14
15 VCC 16 FA13
17 VPP 18 FA12
19 FD3 20 FA8
21 FD4 22 FA9
23 FD5 24 FA10
25 FD6 26 FA11
27 FD7 28 FD0
29 FD2 30 FD1
CN4 = Power PBA to Main
No. Signal Name
1 DRAWER#1
2 DRAWER#2
3 COMP.#1
4 COMP.#2
5 SPOOL
6 GND
CN5 = Power PBA to Main
No. Signal Name
1 VDRV (+24V)
2 GND
3 GND
4 GND
5 VPRT (+8.5V)
6 VPRT (+8.5V)
7 VPRT (+8.5V)
8 VCC (+5V)
9 GND
10 VDISP (+30V)
CN11 = I/F PBA to Main
No. Signal Name
1 TXD0
2 GND
3 RXD0
4 DSR0
5 DTR0
6 VCC
CN13 = I/F PBA to Main
No. Signal Name
1 TXD1
2 GND
3 RXD1
4 DSR1
5 DTR1
6 IRC_DEN (DTR2)
7 TXD2_IRC (TXD2)
8 IRC_REN (DSR2)
9 RXD2_IRC (RXD2)
10 VCC
CN6 = Main to VFD
No. Signal Name
1 SDIN
2 VCC
3 VDISP(+30V)
4 GND
5 LATCH
6 SCLK
7 STROBE
8 DISCONN
CN10 = Main to Clerk
No. Signal Name
1 CLERK1
2 CLERK2
3 CLERK3
4 CLERK4
5 GND
CN14 = Main to MODE
No. Signal Name
1 MODE1
2 MODE2
3 MODE3
4 MODE4
5 MODE5
6 MODE6
7 MODE7
8 COMMON
CN7 = Key Scan Signal
CN9 = Key Return Signal
CN2 = Main to Printer(Journal)
CN3 = Main to Printer(Receipt)
No. Signal Name No. Signal Name
1 VCC 2 Lever Sensor In
3 P/END Sensor Light 4 P/END Sensor In
5 N/END Sensor Light 6 N/END Sensor In
7 BMARK Sensor Light 8 BMARK Sensor In
9 Thermister Input 10 GND
11 PSTROBE#2 12 PCLK
13 GND 14 GND
15 PSTROBE#1 16 PDATA
17 PLATCH 18 GND
19 GND 20 VPH (+8.5V)
21 VPH (+8.5V) 22 VPH (+8.5V)
23 GND 24 MOT_LF_B-
25 ACUT SENS IN(Only Receipt) 26 MOT_LF_B+
27 MOT_ACUT1(Only Receipt) 28 MOT_LF_A+
29 MOT_ACUT2(Only Receipt) 30 MOT_LF_A-
