Sam4s ER-5200M Service Manual

10 PCB Layout and Parts List
10-12 SAM4S ER-5200 Series

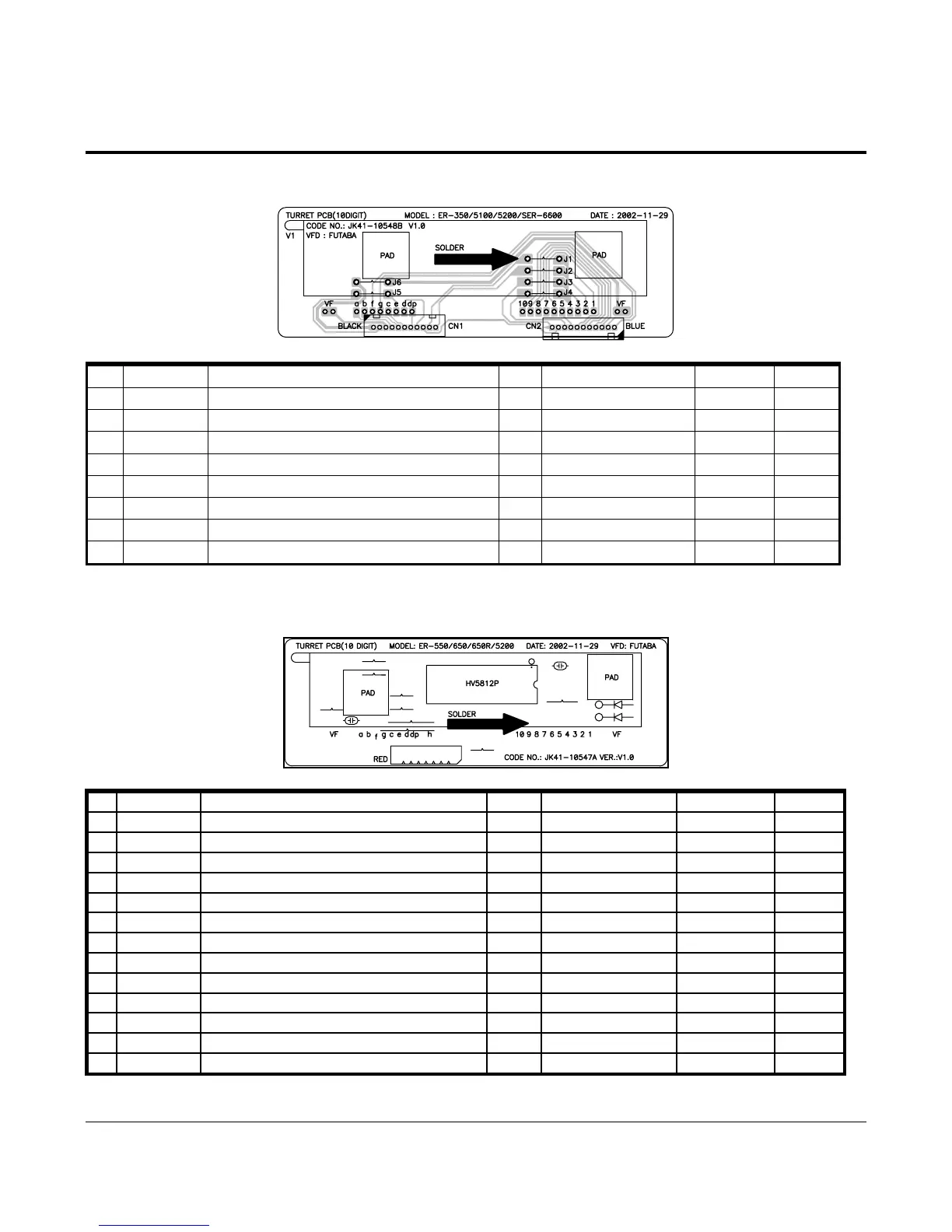

10-6 Display Layout
10-6-2 ER-5200 Rear Display (VFD 10Digit)
No. Parts No. Description / Specification Q`ty Design- Location Serviceable Remark
- JK92-01231A PBA SUB-TURRET:ER-5100/5200,STD 1 REAR DISPLAY ASSY Y
- JK39-40002A CBF HARNESS:ER-220N,-,UL1061,400MM,BLK/R 1 DISPLAY TO MAIN Y
- JK07-00005A DISPLAY VFD-DC10G:FUTABA,10-LT-50GK 1 FUTABA VFD/10 DIGIT Y
- 3711-002812 CONNECTOR-HEADER:BOX,11P,1R,2mm,STRAIGHT 2 CN1,CN2 Y
- JK73-10207A RPR-PAD:ER-220N,SPONGE,-,BLK 2 PAD Y
- JK94-00053A PHANTOM AU JK92-01231A 1 AUTO N
- JC39-40511A CBF HARNESS:ML-80,JUMPER,AWG22,52mm,SILV 5 JP1,JP2,JP3,JP4,JP5,JP6 Y
- JK41-10548B PCB-TURRET:ER-5100/5200,FR-1,1L,T1.6 1 FUTABA VFD/10 DIGIT Y
10-6-3 ER-5200M Rear Display (VFD 10Digit)
No Part -No Description/Specification Q'TY Design Location Serviceable Remarks
- JK92-00970B PBA SUB-TURRET:ER-450,WORLD,BASIC 1
- 3711-004109 WAFER;BOX-HEADER,1R,8P,2.5mm,STRAIGHT 1 CN1 WHITE
- JK07-00005A DISPLAY VFD-DC10G:FUTABA,10-LT-50GK 1 V1
- JK39-40606A HARNESS-TURRET:ER-450,8P,500mm,TUBE 1 TURR TO MAIN TUBE
- JK73-10207A RPR-PAD:ER-220N,SPONGE,-,BLK 2 T5.0
- 1003-001381 IC-VFD:HV5812P,DIP,28P,540MIL,-,-,ST,PLA 1 U1
- JK69-90902A PACKING-VINYL:PET,#2126,30X100000XT0.05 0.002 DIGITRON
- JK94-00028A PHANTOM AU JK92-00968A 1
- 0402-000129 DIODE-RECTIFIER:1N4003,200V,1A,DO-41,TP 1 D1
- 0402-000208 DIODE-RECTIFIER:EK-04,40V,1.5A,DO-41 1 D2
- JK41-10547A PCB-TURRET:ER-650/5200,FR-1,1L,T1.6 1
- 2202-000579 C-CERAMIC,MLC-AXIAL:100nF,+80-20%,50V,Z5 2 C1,C2
- JC39-40511A CBF HARNESS:ML-80,JUMPER,AWG22,52mm,SILV 9 J1 ~ J9
