9 Exploded Views and Parts List
SAM4S ER-5200 Series 9-3
9-1 Main Set
9-1-2 Parts List
A-1
A-2
A-3
A-4

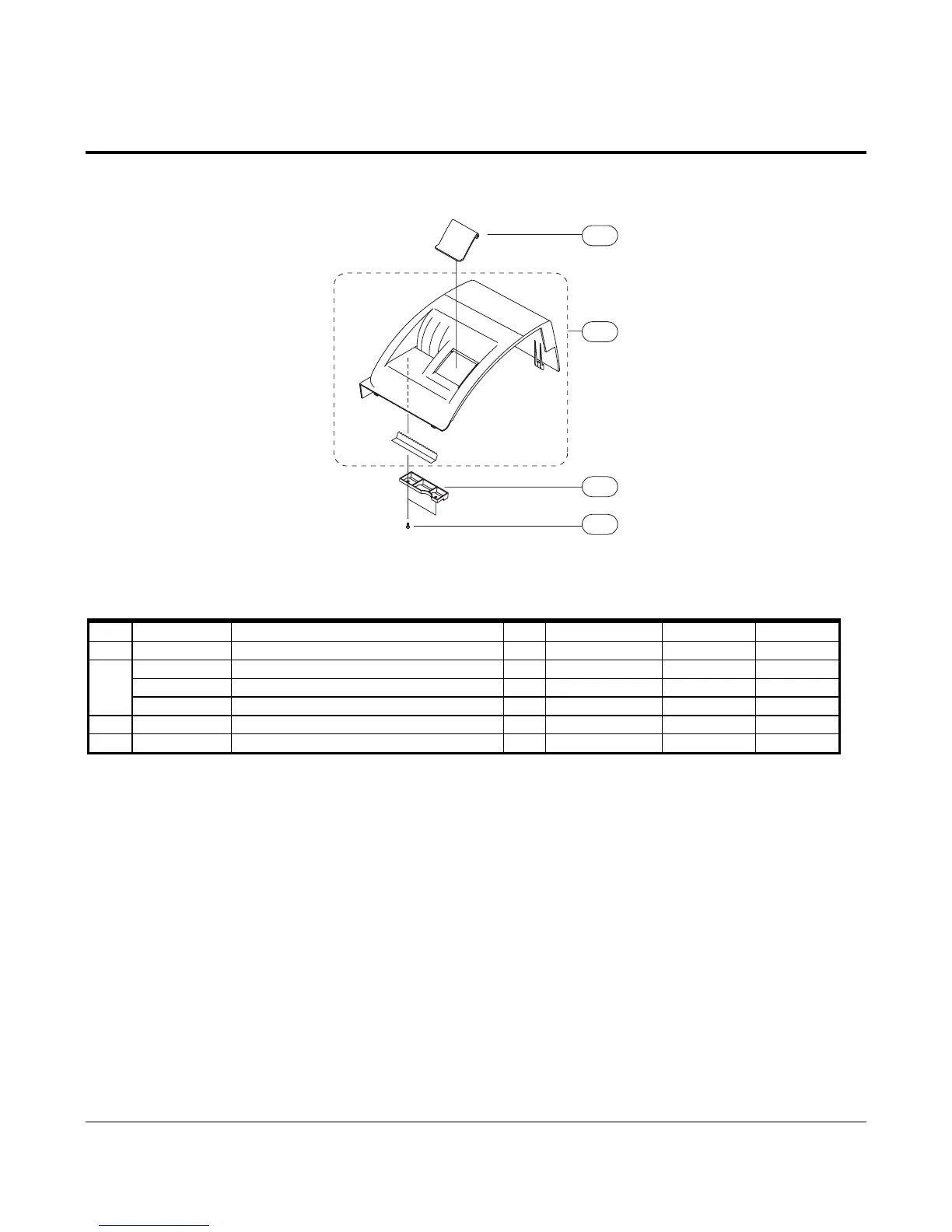

Figure9-3 Cover Printer
9-1-2-(a) Cover Printer Assembly
No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark
A-1 JK72-20026A PMO-WINDOW JOURNAL:ACRYL 1
Y
JK97-10013B ASSY-COVER PRINTER 1
Y
JK72-20027B PMO-COVER PRINTER:HIPS(VO) 1
N
SAM4S
A-2
JK70-10320A IPR-CUTTER PAPER 1
N
A-3 JK72-20038A PMO-GUIDE CUTTER:HIPS(VO) 1
Y
A-4 6002-001078 SCREW-TAPPING:PWH,+,B,M3,L5 2
Y
To Next Page
