Sam4s ER-5200M Service Manual

10 PCB Layout and Parts List
SAM4S ER-5200 Series 10-5

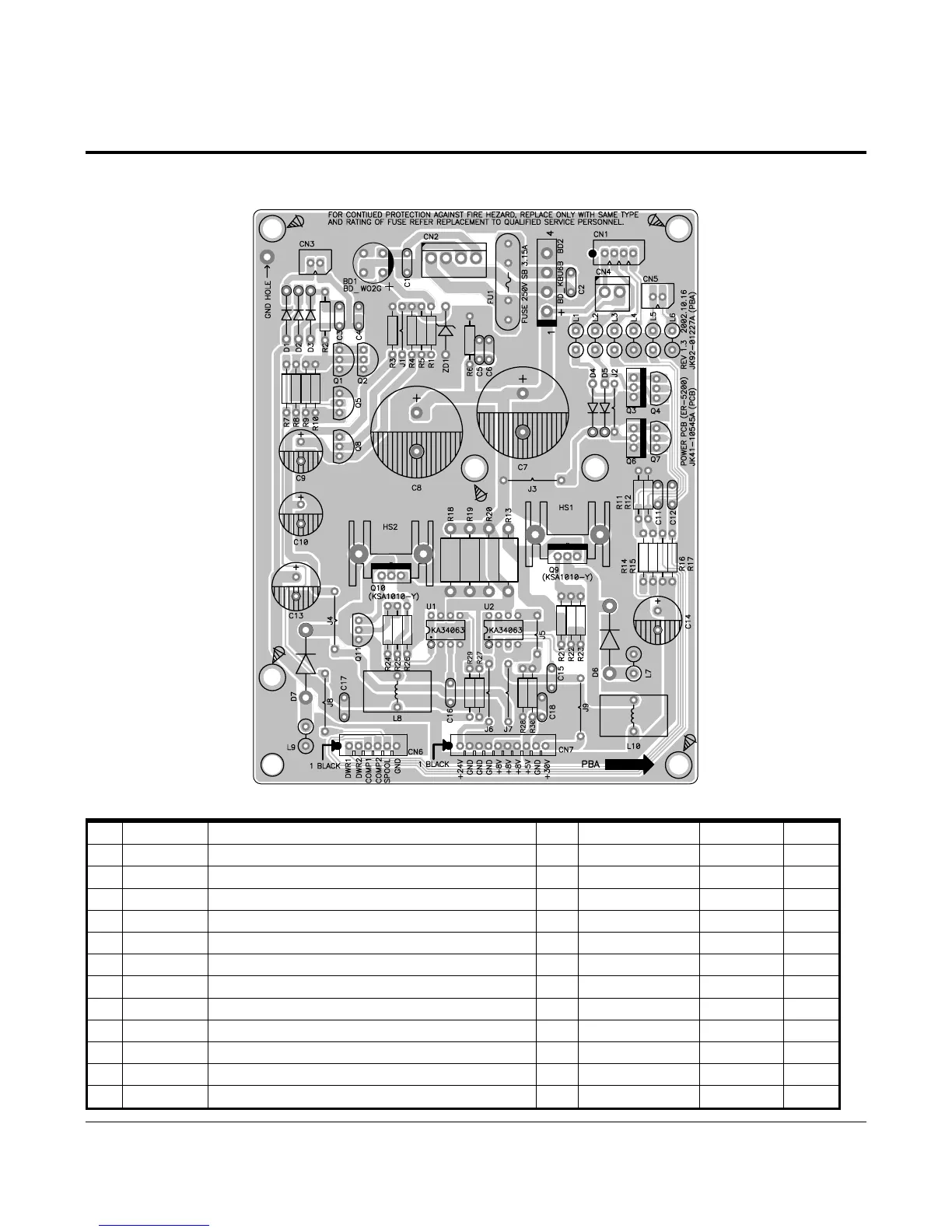

10-2 Power PCB Layout
10-2-1 Component and Solder Side View
10-2-2 Parts List
No. Parts No. Description / Specification Q`ty Design- Location Serviceable Remark
JK92-01227A PBA SUB-POWER:ER-5200/5500,STD 1 ASSY
Y
3711-000183 CONNECTOR-HEADER:1WALL,2P,1R,3.96mm,STRA 1 CN4 Y
3711-000034 CONNECTOR-HEADER:BOX,2P,1R,2.5mm,STRAIGH 1 CN3 Y
3711-000242 CONNECTOR-HEADER:1WALL,4P,1R,3.96mm,STRA 1 CN2 Y
3711-000961 CONNECTOR-HEADER:BOX,4P,1R,2.5mm,STRAIGH 1 CN1 Y
3711-003969 CONNECTOR-HEADER:BOX,2P,1R,2.5mm,STRAIGH 1 CN5 Y
3601-000261 FUSE-CARTRIDGE:250V,3.15A,TIME-LAG,GLASS 1 FU1 Y
JK39-40556A CBF HARNESS-SUB:ER-52/5500,6P,80mm 1 CN6 Y
JK39-40555A CBF HARNESS-POWER:ER-52/5500,10P,80mm,AW 1 CN7 Y
0402-000119 DIODE-BRIDGE:W02G,200V,1.5A,-,- 1 BD1 Y
0402-000168 DIODE-RECTIFIER:1N5822,40V,3A,DO-201AD,T 2 D6,D7 Y
0402-000290 DIODE-BRIDGE:KBU6B,100V,6A,-,BK 1 BD2 Y
