10 PCB Layout and Part
s List
10-10
SAM4S ER-5200 Series

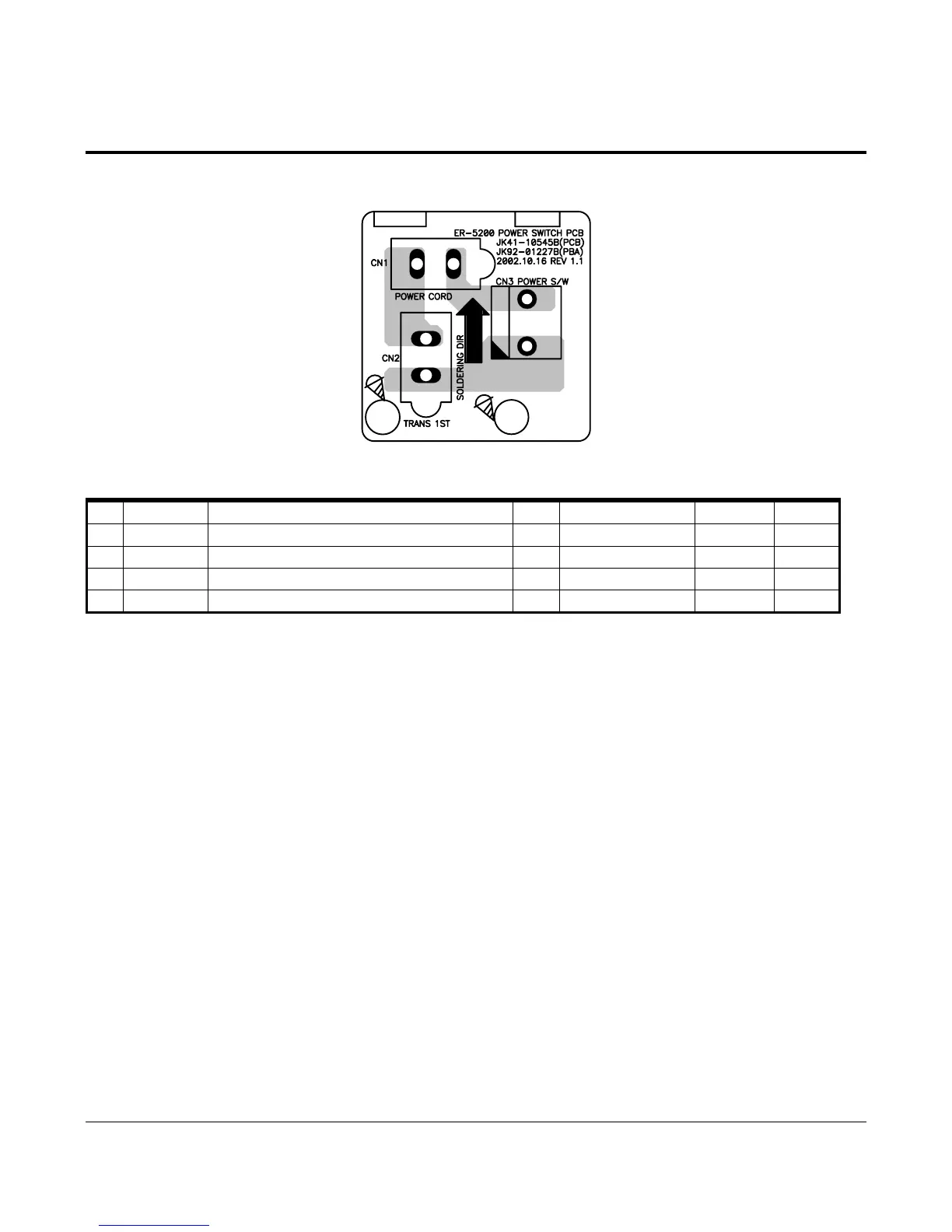

10-5 Power Switch PCB Layout
10-5-1 Component Side V
iew
10-5-2 Part
s List
No.
Parts No.
Description /
Specification Q`ty
Design- Location
Serviceable
Remark
-
JK92-01227B
PBA SUB-POWER SW:ER-5200/5500,STD
1
ASSY
Y
- 3711-000190
CONNECTOR-HEADER:1WALL,
2P,1R,7.92mm,STRA 1
CN3
Y
- 3711-000829
CONNECTOR-HEADER:BOX,2P,1R
,6.2mm,STRAIGH 2
CN1,
CN2
Y
- JK41-10545B
PCB-POWER
SWITCH:ER
-52/5500,FR-1,1L,T1.6 1
Y
95
97
