Samsung DVM Plus 2 Series User Manual

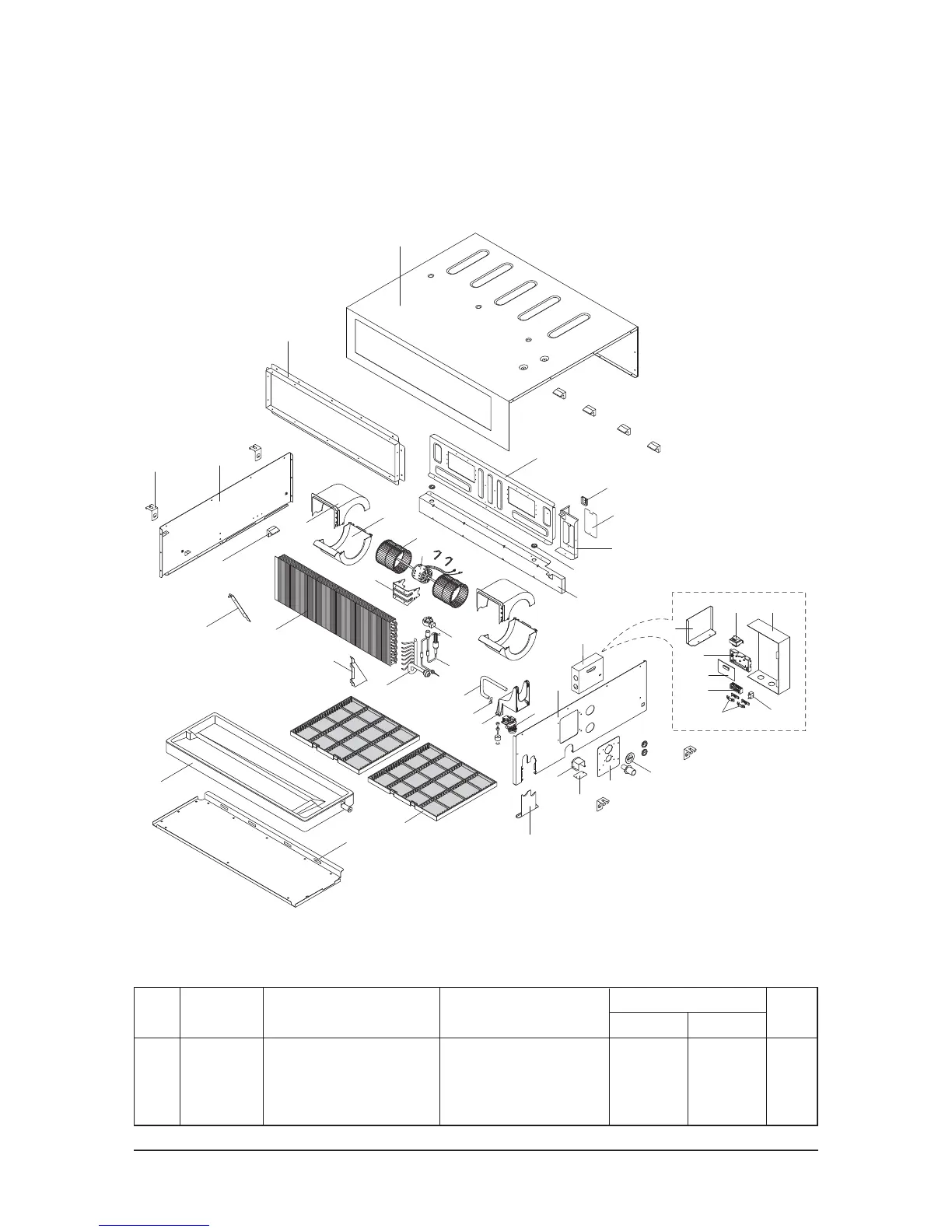

Exploded Views and Parts List
Samsung Electronics5-27
1
2
3
12
30
30-1
30-5
30-4
30-6,7
30-9
30-3 30-2
30-8
24
27
28
25
5
17
21
22
23
16
19
10
20
20-1
14
15
18
29
6
7
11
35
13
8
9
4
31
32
33
26
34
■
Options
No. Code No. Description Specification Remark
Q'TY
MDP-075SB MDP-075SBU
SA
SNA
SNA
SA
31
32
33
34
DB67-00145A
DB69-00137B
DB61-00697A
DB66-00058C
HOSE DRAIN
BAND RING
BRACKET DRAIN PUMP
PUMP DRAIN
EPTM T1.5
STS304 T1.5
ABS(UL94-VO)
ASS'Y
1
1
1
1
1
1
1
1
Duct type(Built-in) (cont.)
■ 5.6kW~7.2kW

Samsung DVM Plus 2 Series Specifications

General

Brand	Samsung
Model	DVM Plus 2 Series
Category	Air Conditioner
Language	English
