Samsung Electronics10-15

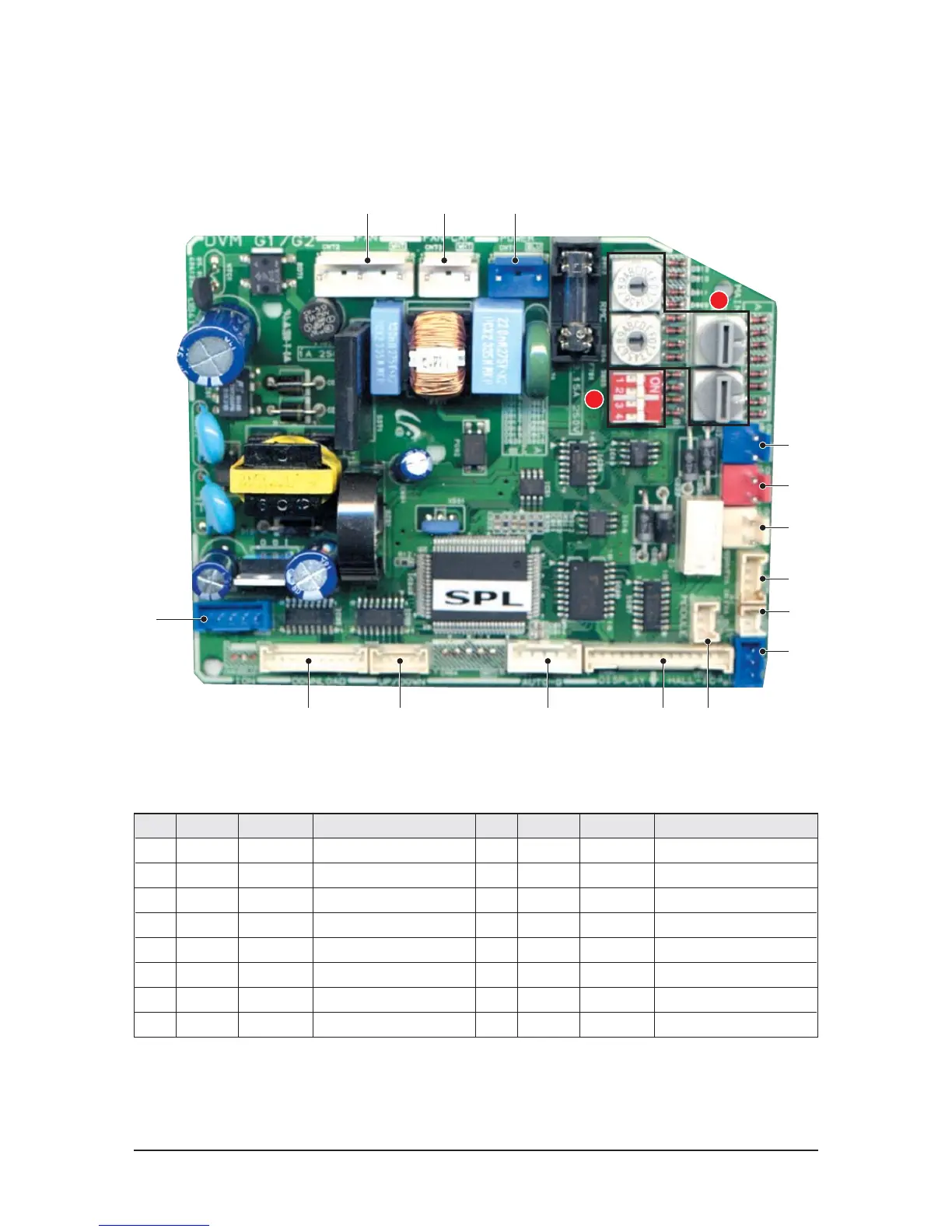

PCB Diagram
10-1-8 Wall-mounted type(Premium)
! @ #
1 $234
5
%
^
&
*
(
)
No. CN# COLOR FUNCTION
!
CN72 WHITE FAN-MOTOR
@
CN73 WHITE FAN-CAPACITOR
#
CN71 BLUE AC POWER
$
CN45 WHITE REMOCON RECEIVER
%
CN32 BLUE COMM2(REMOCON)
^
CN31 RED COMM1(OUTDOOR)
&
CN43 WHITE REMOCON DC12V
*
CN41 WHITE ROOM/EVA-IN SENSOR
No. CN# COLOR FUNCTION
(
CN42 WHITE EVA-OUT SENSOR
)
CN44 BLUE HALL IC
1
CN91 WHITE DISPLAY
2
CN63 WHITE AUTO GRILLE
3
CN61 WHITE LOUVER
4
CN93 WHITE MICOM DOWNLOAD
5
CN62 BLUE EEV
A
B
