Disassembly and Reassembly
Samsung Electronics4-35

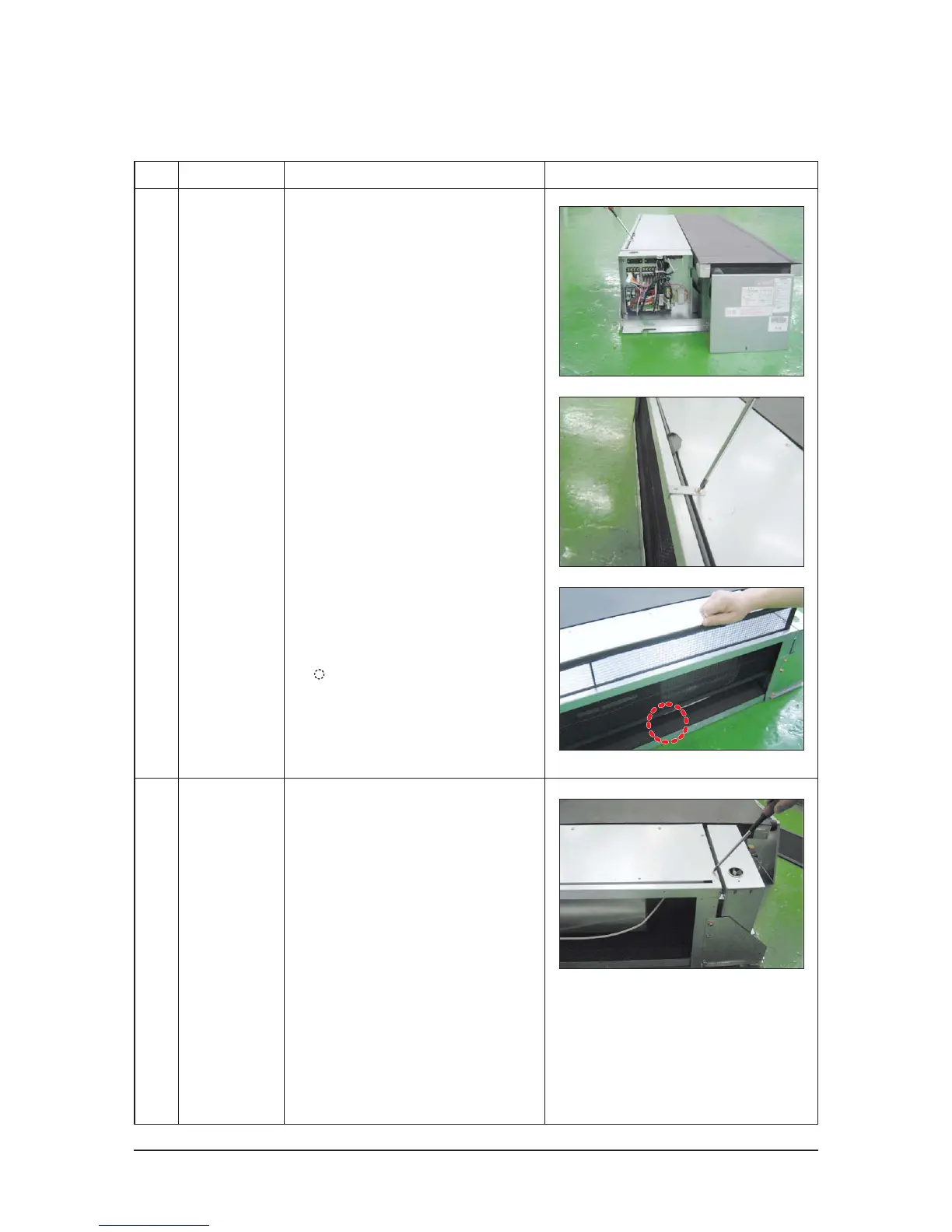

No Parts Procedure Remark
1
2
Filter-Pre
Blower
&
Duct
1) Disassemble screws of indication part
and then assemble the direction of
2 Plate-Handle places by use of screw
as shown in 2).
2) Turn the Plate Handle by hand when
removing the Filter-Pre.
3) When pulling the Filter-Pre handle,
the Filter-pre can be assembled.
✳ Be sure to remove the cushion on the
marked part after initial installation.
(It cause the damage of noise).
1) After disassembling places indicating
screws, detach Ass'y Cover Bottom.
4-1-5 Duct type(Low silhouette)
To Next Page
