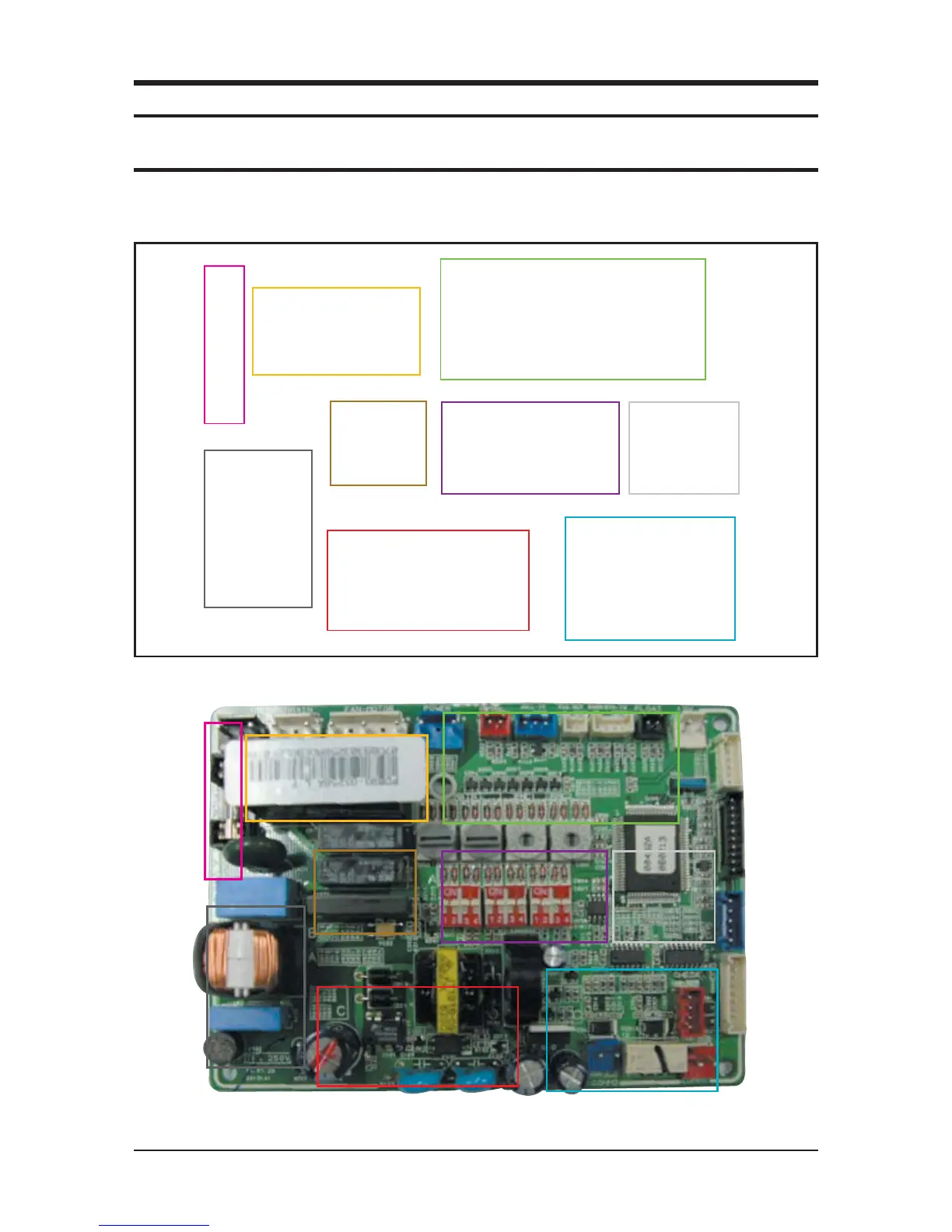

13. Block Diagram
13-1 Indoor Unit
13-1-1 1 way cassette type
FUSE
1. Noise Filter
FAN Starting Capacitor
Fan Motor Driver
(SSR TYPE)
Extra...
1. Display interface
2. Sensor Input(room, eva in/out)
3. Program download interface
4. External PBA interface
5. EEV DRIVE
6. BUZZER DRIVE
Setting Part
1. Main/Rmc Address
2. Operation Condition
Power Generation Part
1. SMPS
2. LINEAR
Communication Part
1. Wired Remocon
2. Outdoor Unit
MPU
