Disassembly and Reassembly
4-48Samsung Electronics

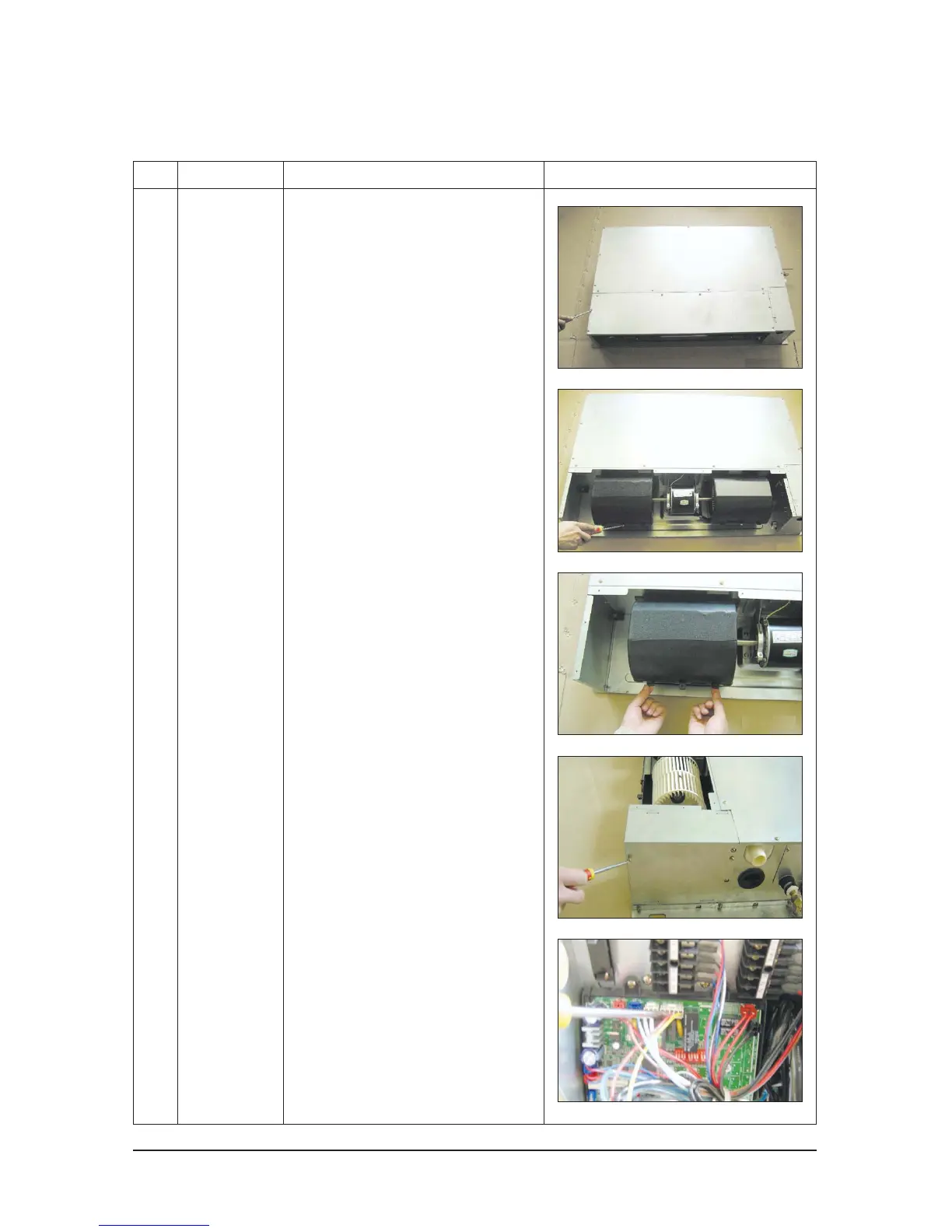

No Parts Procedure Remark
1 Motor
&
Blower
1) Disassemble the Cabinet-Top Motor.
– Unscrew 8 screws
2) Disassemble 2 Cover Blower Uppers.
– After unscrewing 2 screws
– Disassemble the Cover Blower Upper
with pushing its hook.
3) Disassemble the Cover Control.
– Unscrew 2 screws
4) Disassemble Motor Wires connected to
the inside of PCB and connected to the
Capacitor.
4-1-8 Duct type(Slim)
