Samsung DVM Plus 2 Series User Manual

10-22Samsung Electronics
10-3 Outdoor Unit (DVM Plus2 Series)

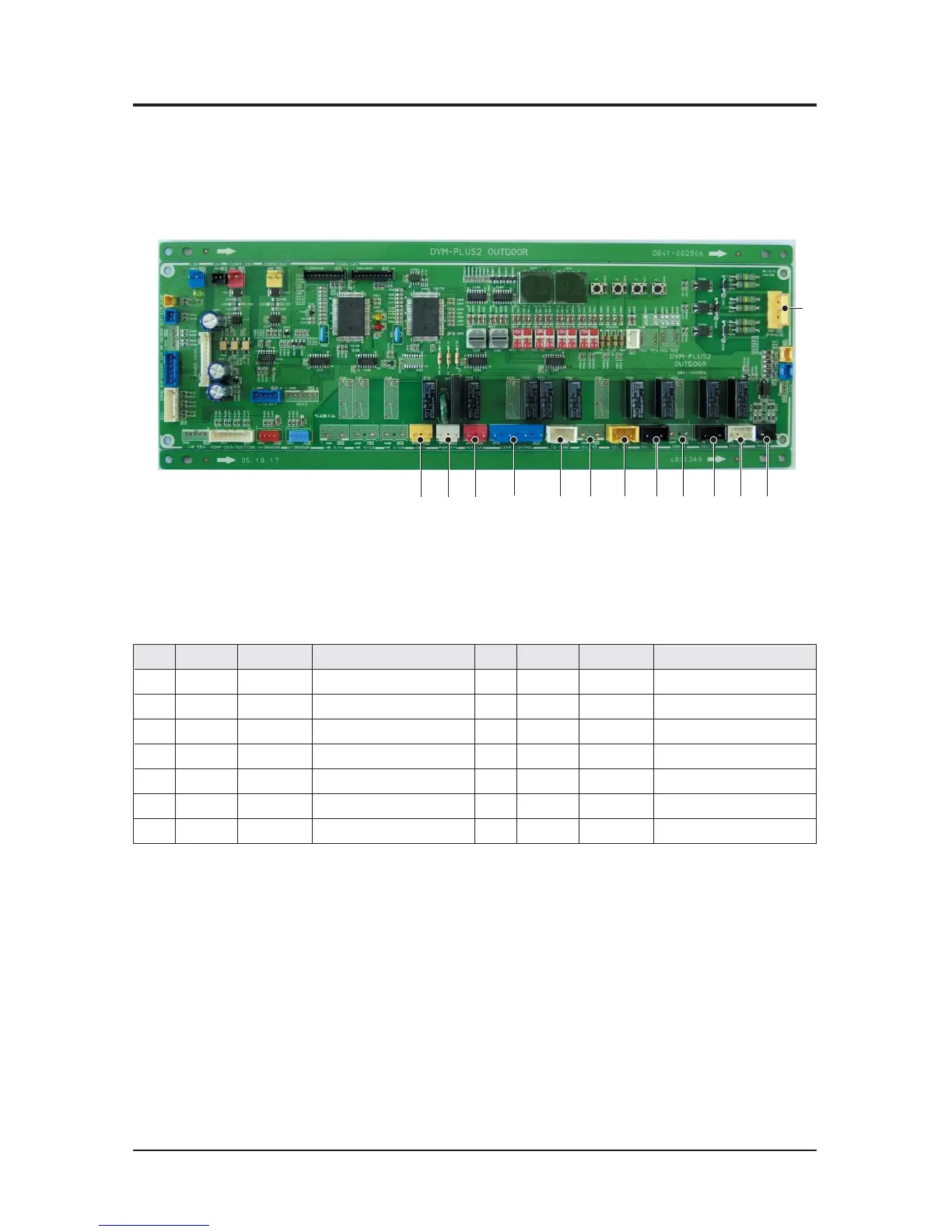

10-3-1 MAIN PCB_AC
@#$%^&*()123
!
No. CN# COLOR FUNCTION
!
CN83 YELLOW 3 PHASE INPUT
@
CN70 BLACK 220V INPUT
#
CN75 WHITE COMP1 CCH
$
CN76 BLACK COMP2 CCH
%
CN77 RED COMP3 CCH
^
CN81 BLACK OIL VALVE 1
&
CN82 YELLOW OIL VALVE 2
No. CN# COLOR FUNCTION
*
CN80 RED OIL VALVE 3
(
CN79 WHITE LIQUID TUBE VALVE
)
CN72 BLUE COMP CONTROL
1
CN74 RED HOTGAS VALVE
2
CN71 WHITE PWM VALVE
3
CN73 YELLOW 4WAY VALVE
