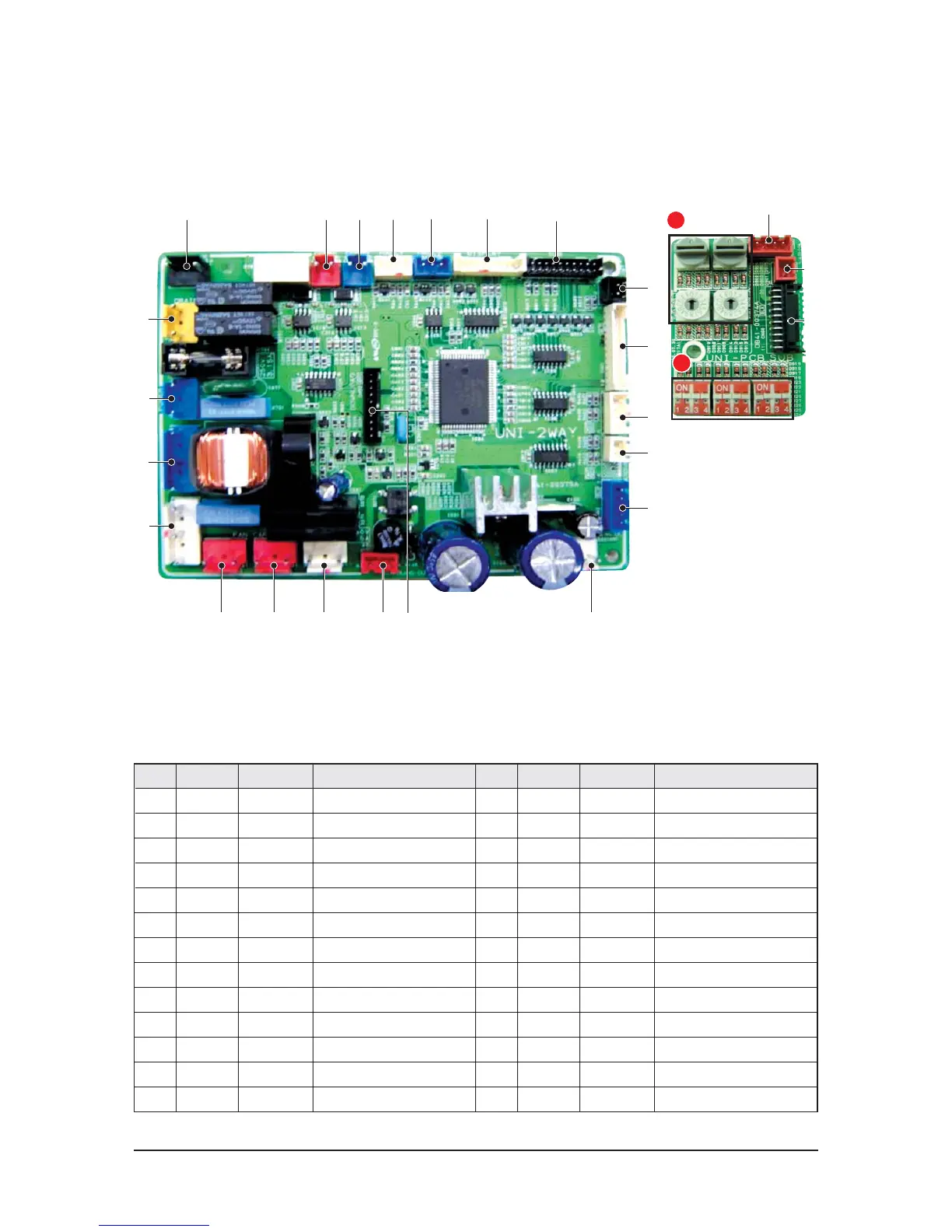

PCB Diagram
Samsung Electronics10-3
10-1-2 2 way cassette type
! @ # $ % ^
&
+
No. CN# COLOR FUNCTION
!
CN75 BLACK VENTILATOR
@
CN31 RED COMM1(OUTDOOR)
#
CN33 BLUE COMM2(REMOCON)
$
CN52 WHITE HALL IC 1
%
CN44 BLUE HALL IC 2
^
CN91 WHITE DISPLAY
&
CN61 BLACK SUB PCB CONNECTER
*
CN51 BLACK FLOAT S/W
(
CN60 WHITE LOUVER
)
CN41 WHITE PIPE-IN/ROOM SENSOR
1
CN42 WHITE EVA-OUT SENSOR
2
CN62 BLUE EEV
3
CN32 WHITE REMOCON DC12V
No. CN# COLOR FUNCTION
4
CN10 BLACK MICOM DOWNLOAD
5
CN11 RED TRANS-OUT
6
CN72 WHITE TRANS-IN
7
CN45 RED FAN-CAPACITOR
8
CN46 RED FAN-CAPACITOR
9
CN73 WHITE FAN MOTOR 1
0
CN78 BLUE FAN MOTOR 2
“ CN71 BLUE AC POWER
‘ CN74 YELLOW DRAIN PUMP
+ CN81 RED CHECK
= CN83 RED EXTERNAL CONTROL
Q CN61 BLACK MAIN PCB CONNECTER
‘
‘
0
9
8 7 6 5 3
2
1
)
(
=
Q
*
A
B
4
