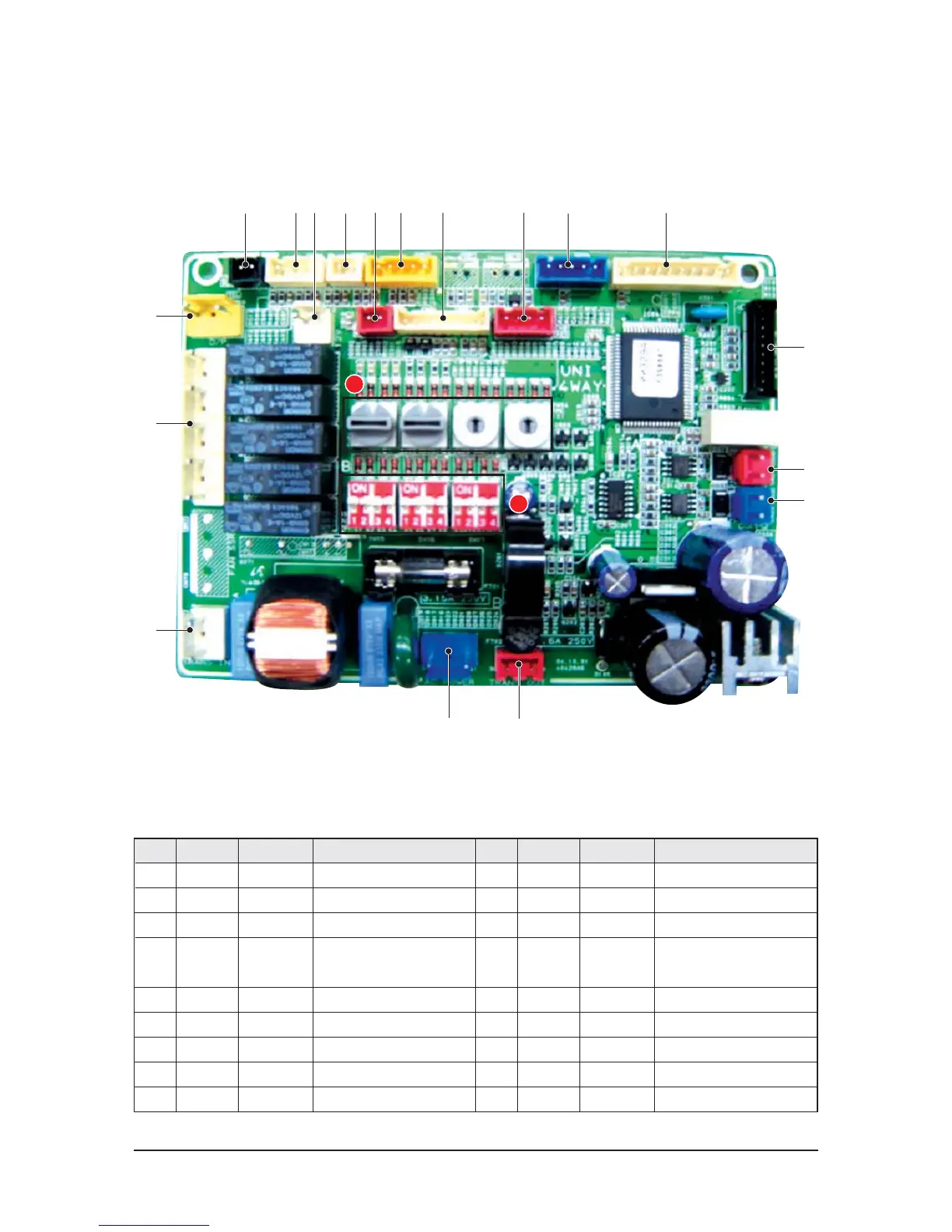

PCB Diagram
Samsung Electronics10-5
10-1-3 4 way cassette type
*
&
8
7
6
(
3 1
! @ 5 #4$2 ) % ^
No. CN# COLOR FUNCTION
!
CN51 BLACK FLOAT S/W
@
CN41 WHITE ROOM/EVA-IN SENSOR
#
CN42 WHITE EVA-OUT SENSOR
$ CN76 YELLOW
EXTERNAL OPTION PCB
CONNECTER
%
CN62 BLUE EEV
^
CN60 WHITE LOUVER
&
CN10 BLACK MICOM DOWNLOAD
*
CN31 RED COMM1(OUTDOOR)
(
CN33 BLUE COMM2(REMOCON)
No. CN# COLOR FUNCTION
)
CN81 RED CHECK
1
CN11 RED TRANS-OUT
2
CN91 WHITE DISPLAY
3 CN71 BLUE AC POWER
4
CN83 RED EXTERNAL CONTROL
5
CN32 WHITE REMOCON DC12V
6
CN72 WHITE TRANS-IN
7
CN73 WHITE FAN-MOTOR
8
CN74 YELLOW DRAIN PUMP
A
B
