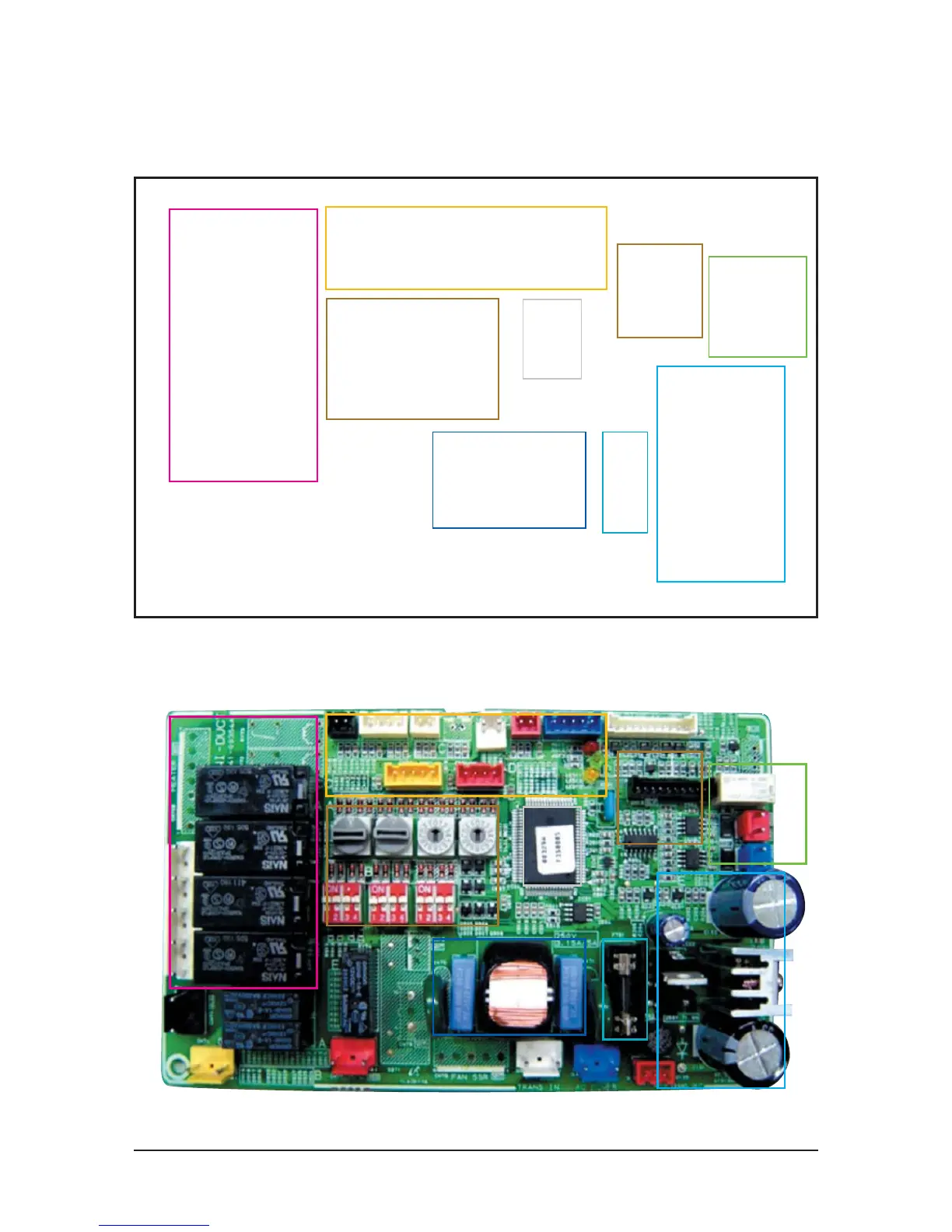

Block Diagram
Samsung Electronics13-5
13-1-5 Duct type(Built-in/High & Low pressure)
FUSE
Fan Motor Driver
(TAP TYPE)
Setting Part
1. Main/Rmc Address
2. Operation Condition
Program
Download
interface
1. Noise Filter
Communication
1. Wired
Remocon
2. Outdoor Unit
MPU
Power Generation
1. Rectifier
2. Linear Regulator
Extra...
1. Display interface
2. Sensor Input(room, eva in/out)
3. EEV DRIVE
