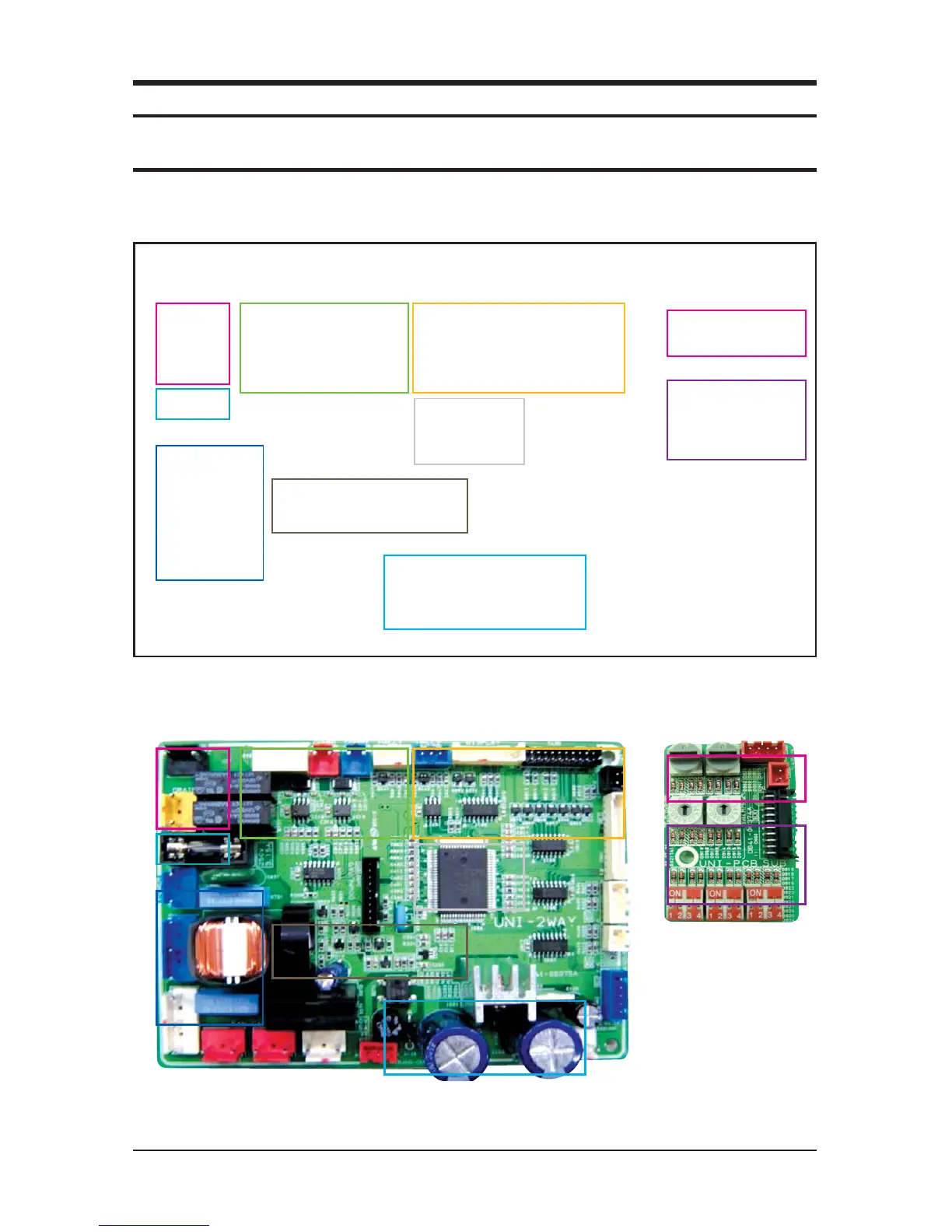

Fan Motor
Driver
(SSR TYPE)
FUSE
1. Power Input
2. Noise Filter
Communication Part
1. Wired Remocon
2. Outdoor Unit
Extra...
1. Display interface
2. Sensor Input(room, eva in/out)
3. EEV DRIVE
External PBA InterfaceExternal PBA Interface
1. Main/Rmc Address
2. Operation Condition
MPU
1. Program download interface
2. BUZZER DRIVE
Power Generation Part
1. Rectifier
2. Linear Regulator
13-1-2 2 way cassette type
