Samsung DVM Plus 2 Series User Manual

Disassembly and Reassembly
Samsung Electronics4-49

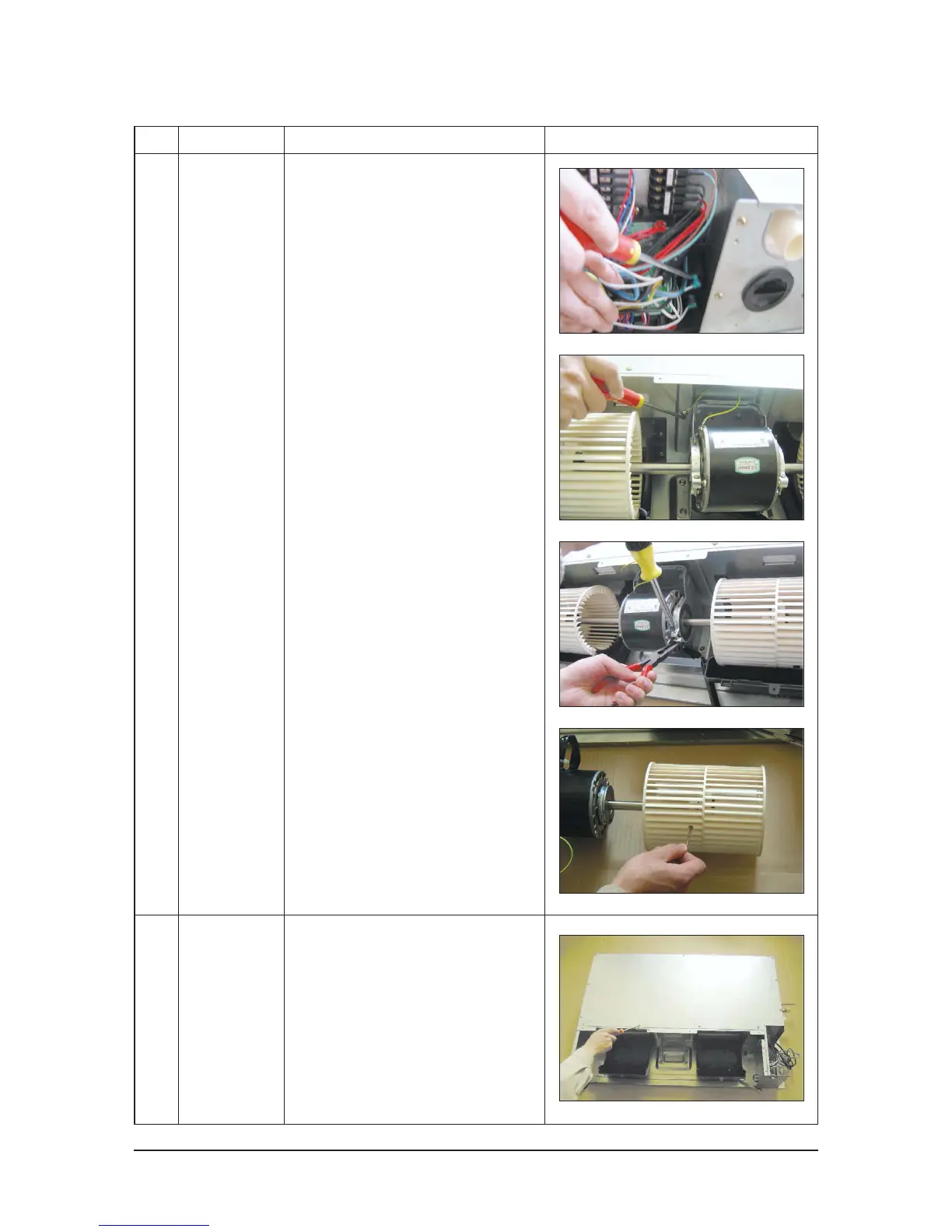

No Parts Procedure Remark
2
Ass'y Drain Pan
5) Disassemble the Motor earth wire
connected to the Partition.
– Unscrew a screw
6) Disassemble the band Motor for fixing
the Motor.
– Unscrew 2 screws
7) After disassembling the Motor and Blower
for the set, disassemble the Blower by
use of 3mm wrench.
1) Disassemble the Cabinet-Top Evap.
– Unscrew 11 screws
