Disassembly and Reassembly
4-50Samsung Electronics

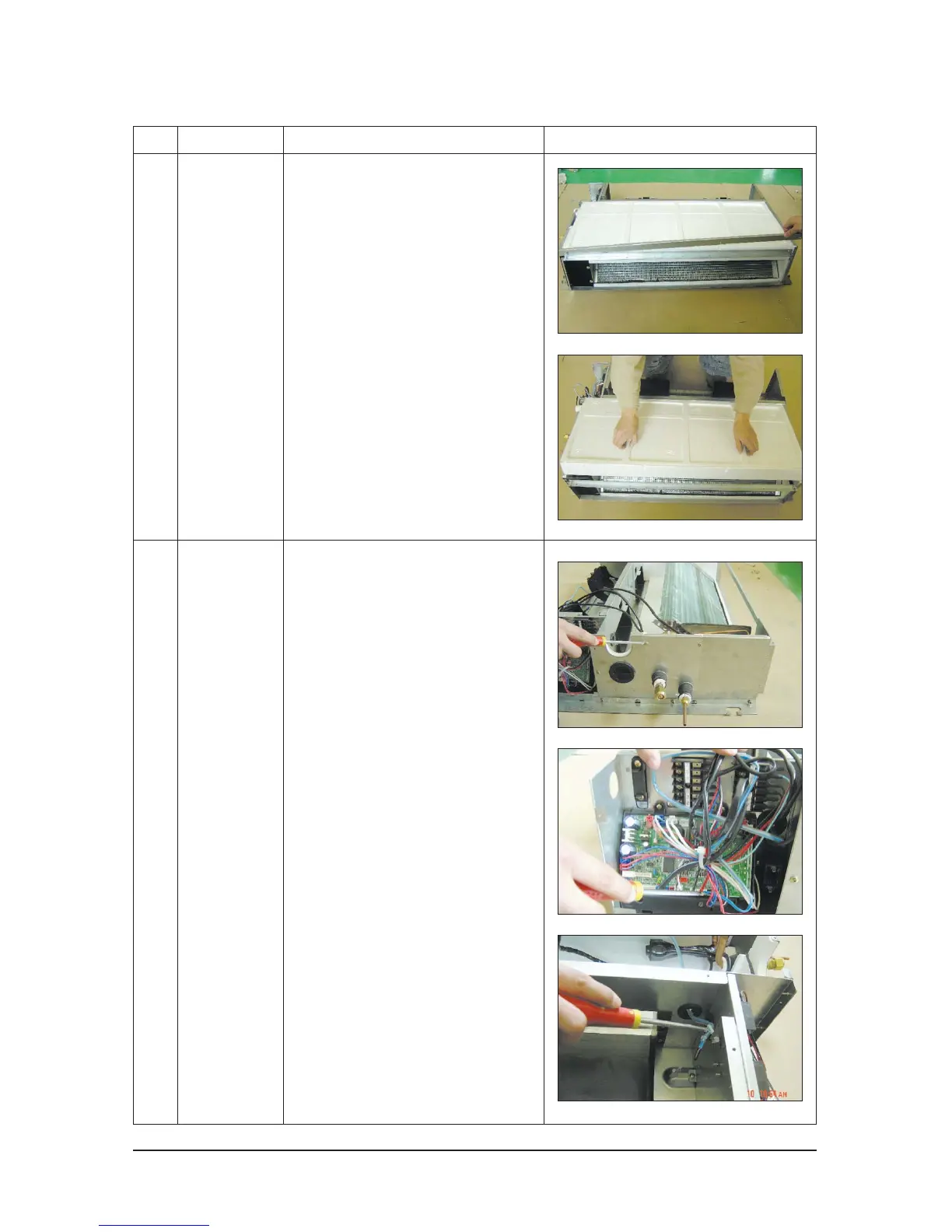

No Parts Procedure Remark
3
Ass'y Evap
2) Disassemble the Bracket Outlet Sub that
fixes the Drain Pan equipped on the front
of the set.
– Unscrew 6 screws
3) Disassemble the Drain Cushion from the
set.
✳ The Evaporator should be disassembled
after disassembling the Cover Control
1-3) and the Drain Pan 2-1), 2-2), 2-3).
1) Disassemble the Cover Pipe that fixes
the high/low pressure Pipe.
– Unscrew 2 screws
2) Disassemble the refrigerant temperature
sensor, Inlet air temperature sensor, and
EEV wire that connected to the inside of
PCB.
To Next Page
