Samsung mini DVM Series User Manual

Samsung Electronics10-19

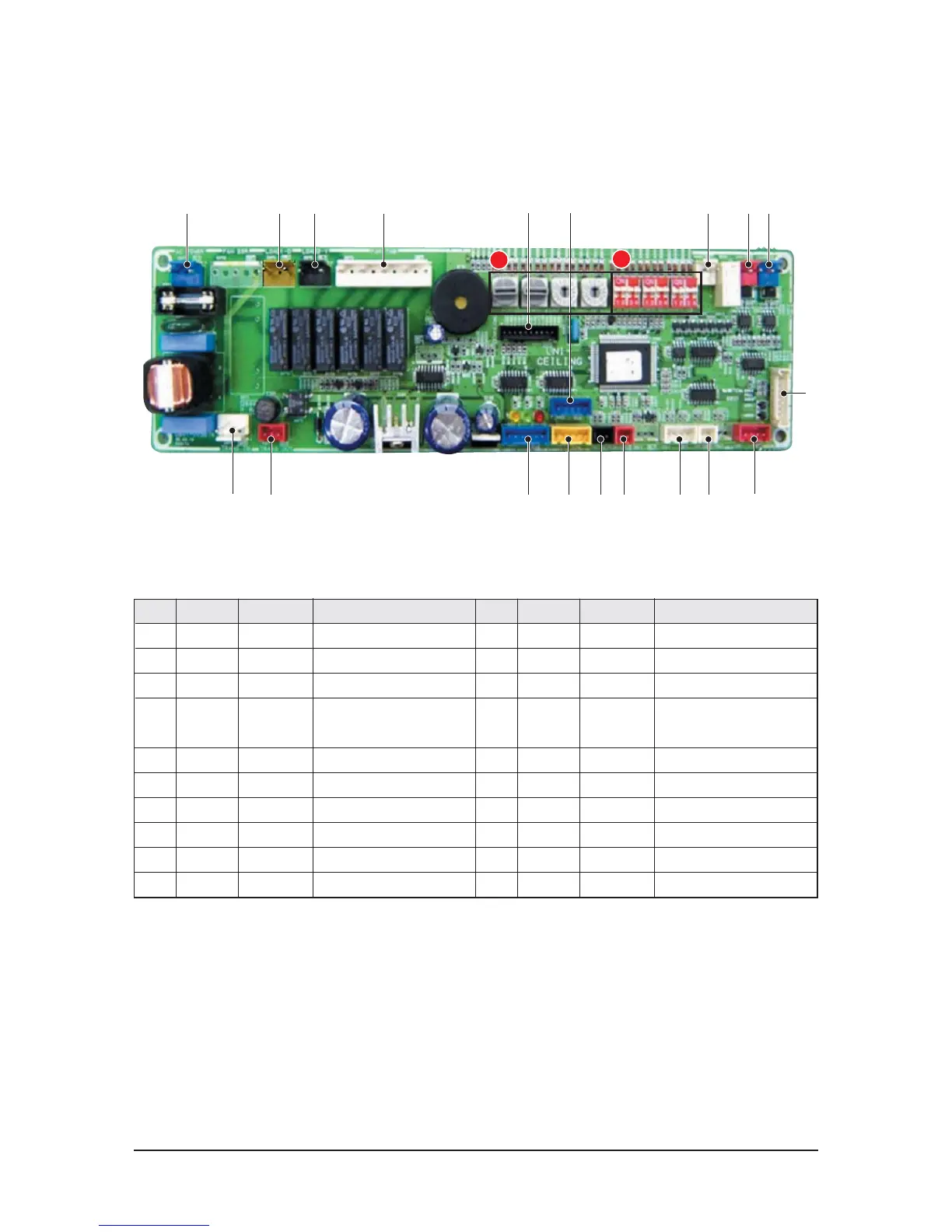

PCB Diagram
10-1-10 Ceiling type
*
! @ # $ 89 % ^ &
No. CN# COLOR FUNCTION
!
CN71 BLUE AC POWER
@
CN74 YELLOW DRAIN PUMP
#
CN75 BLACK VENTILATOR
$ CN73 WHITE FAN-MOTOR
%
CN32 WHITE REMOCON DC12V
^
CN31 RED COMM1(OUTDOOR)
&
CN33 BLUE COMM2(REMOCON)
*
CN91 WHITE DISPLAY
(
CN81 RED CHECK
)
CN42 WHITE EVA-OUT SENSOR
No. CN# COLOR FUNCTION
1
CN41 WHITE ROOM/EVA-IN SENSOR
2
CN83 RED EXTERNAL CONTROL
3 CN51 BLACK FLOAT S/W
4 CN76 YELLOW
EXTERNAL OPTION PCB
CONNECTER
5
CN61 BLUE LOUVER
6
CN11 RED TRANS-OUT
7
CN72 WHITE TRANS-IN
8
CN10 BLACK MICOM DOWNLOAD
9
CN62 BLUE EEV
A
B
()1234567
