Samsung mini DVM Series User Manual

Samsung Electronics10-21

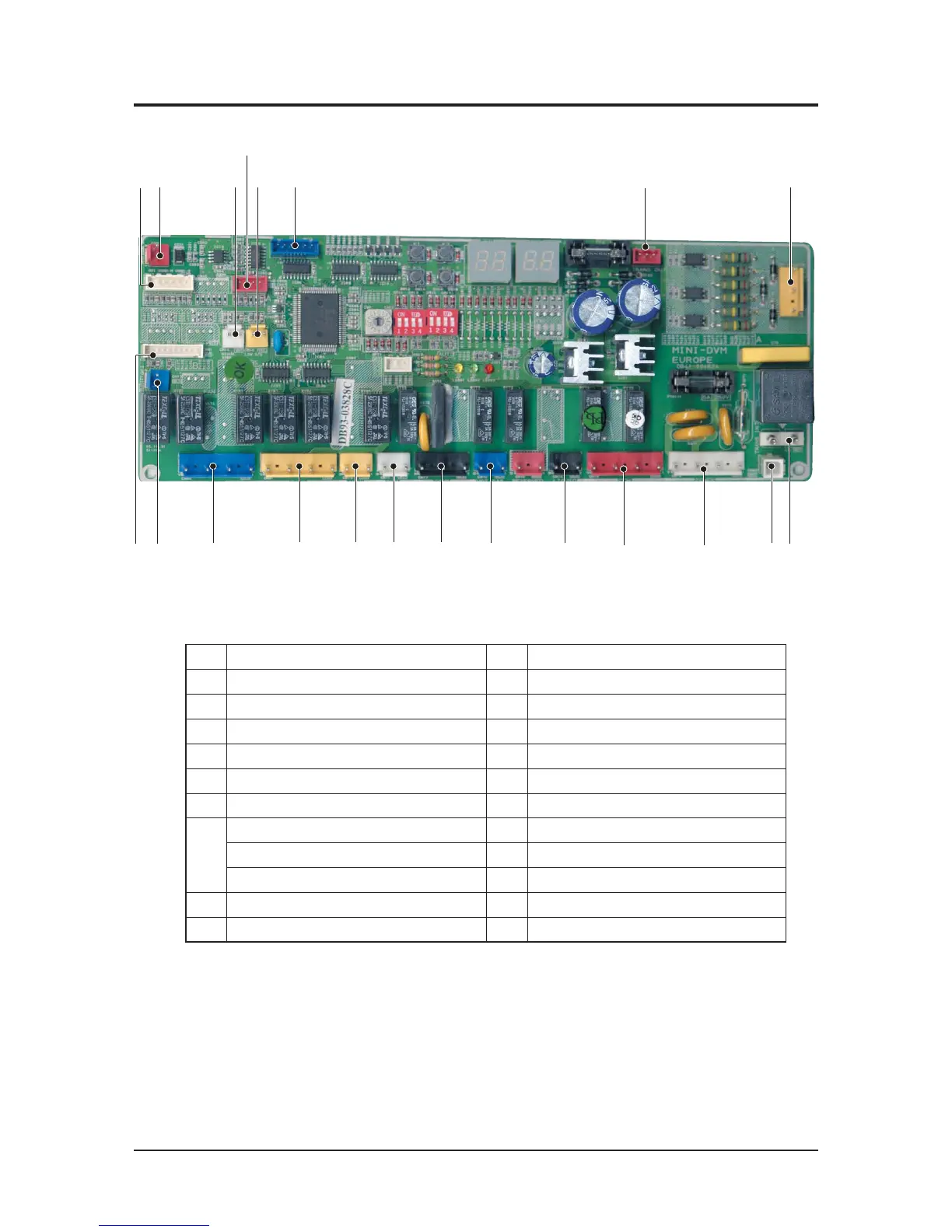

10-2 Outdoor Unit (mini DVM Series)
0 ^
98
7654321)(
!* $ % &@ #
“
!
COM 1 : YW396-02(RED)
@
Discharge Temperature : YW396-02(WHT)
#
Low Pressure : YW396-02(YEL)
$
EEV : SMW250-06(BLU)
%
Trans out : SMW250-03(RED)
^
Trans in : GT PIN
&
3 Phase Detection : YW396-05AV(YEL)
12 : Room Temperature :
SMW250-06(WHT)
*
34 : Cond mid Temperature :
SMW250-06(WHT)
56 : Cond out Temperature :
SMW250-06(WHT)
(
Download : SMW200-10(WHT)
)
Interface Module : YW396-02(BLU)
1
Fan 1 : YW396-07AV(BLU)
2
Fan 2 : YW396-07AV(YEL)
3
4 way Valve : YW396-03AV(YEL)
4
PWM Valve : YW396-03AV(WHT)
5
Compressor : YW396-03AV(WHT)
6
Hot Gas Bypass Valve : YW396-05AV(BLU)
7
Liquid Bypass Valve : YW396-03AV(BLK)
8
CCH : YW396-07AV(RED)
9
Main Power : YW396-07AV(WHT)
0
Earth : YOW236-01(WHT)
“
Thermistor : ISMW250-04(RED)
