Samsung mini DVM Series User Manual

Samsung Electronics10-13

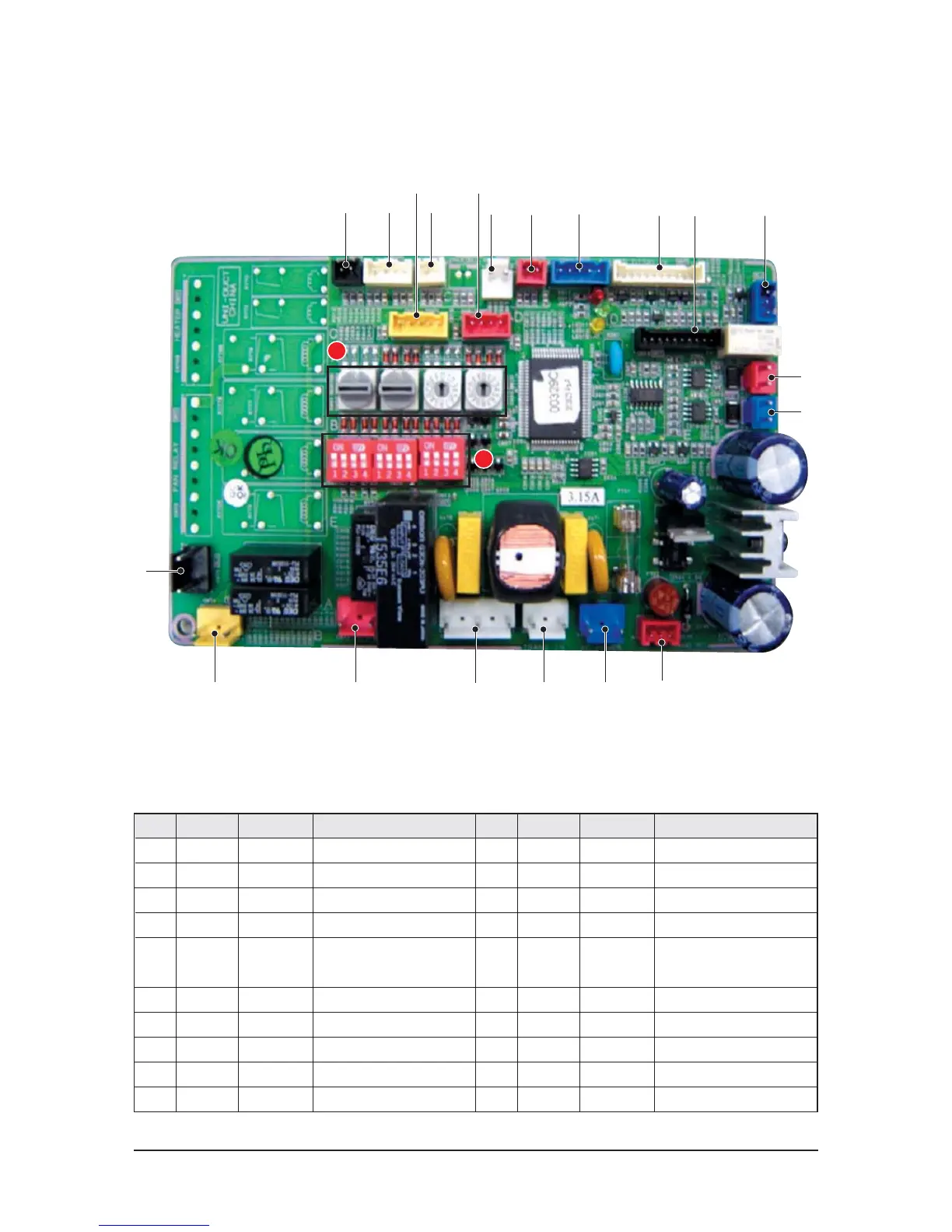

PCB Diagram
10-1-7 Duct type(Slim)
! @ #
5 4
$ % ^
& * 9
No. CN# COLOR FUNCTION
!
CN51 BLACK FLOAT S/W
@
CN41 WHITE ROOM/EVA-IN SENSOR
#
CN42 WHITE EVA-OUT SENSOR
$ CN32 WHITE REMOCON DC12V
% CN83 RED EXTERNAL CONTROL
^
CN62 BLUE EEV
&
CN91 WHITE DISPLAY
*
CN10 BLACK MICOM DOWNLOAD
(
CN31 RED COMM1(OUTDOOR)
)
CN33 BLUE COMM2(REMOCON)
No. CN# COLOR FUNCTION
1
CN11 RED TRANS-OUT
2
CN71 BLUE AC POWER
3 CN72 WHITE TRANS-IN
4 CN81 RED CHECK
5 CN76 YELLOW
EXTERNAL OPTION
PCB CONNECTER
6
CN77 RED HOT COIL
7
CN74 YELLOW DRAIN PUMP
8
CN75 BLACK VENTILATOR
9
CN44 BLUE HALL IC
0
CN78 WHITE FAN-MOTOR
A
7
6 3
0
2
1
)
(
8
B
