10-14Samsung Electronics

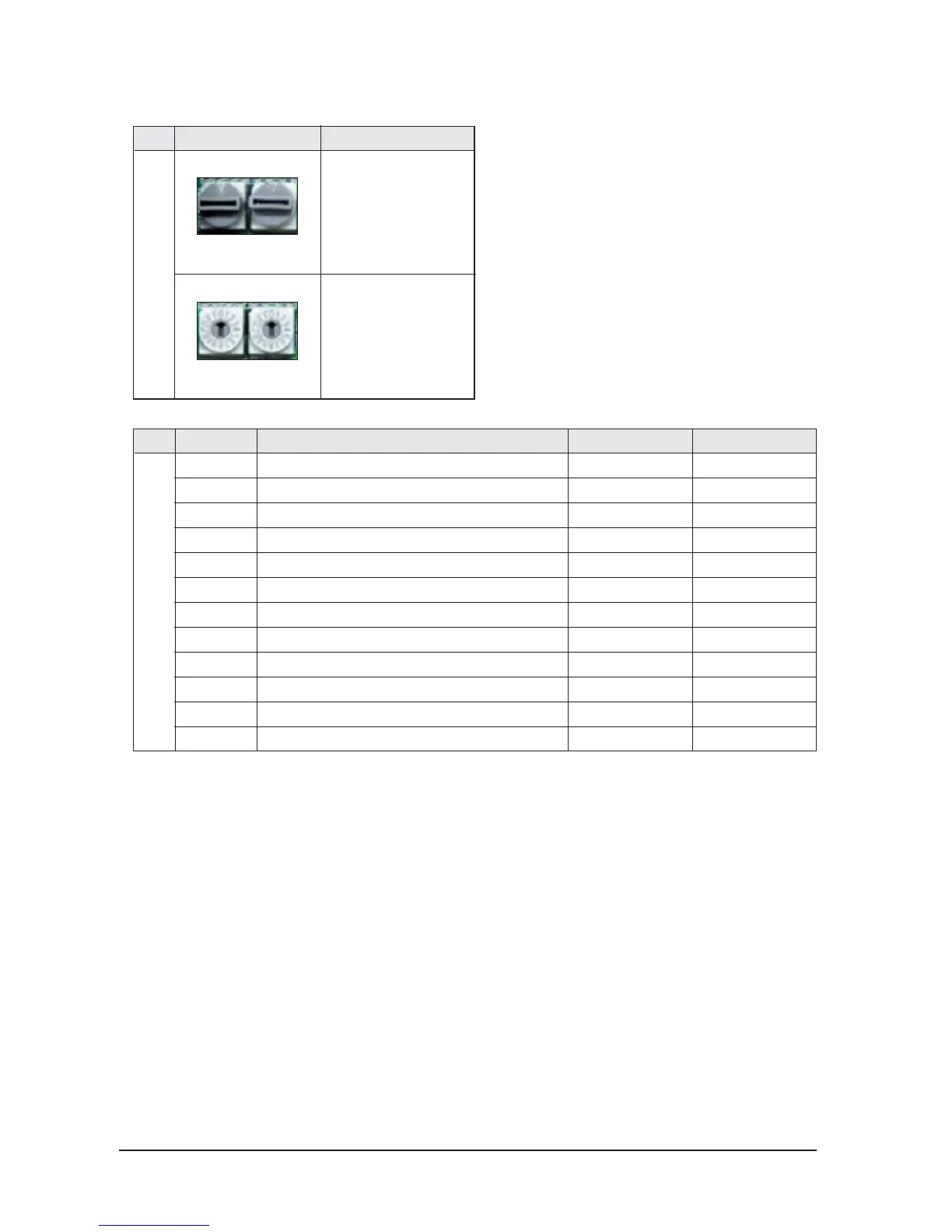

PCB Diagram
No. SW Function ON OFF
K1 Wired remote control not use use
K2 Centralized control not use use
K3 RPM up normal up
K4 Option drain pump N/A N/A
K5 Heating thermo-off +2˚C +5˚C
K6 Filter signal display 1,000hr 2,000hr
K7 Hot water coil N/A N/A
K8 Electrical heater N/A N/A
K9 Min.EEV step at heating fix 80step 0 or 80step
K10 Transmitter grouping N/A N/A
K11 External Control not use use
K12 Preparation
B
No. SW Function
SW01 SW02
SW03 SW04
Main address
set
(00 ~99)
Centralized control
address set
(00 ~FF)
A
