Samsung mini DVM Series User Manual

Samsung Electronics10-1

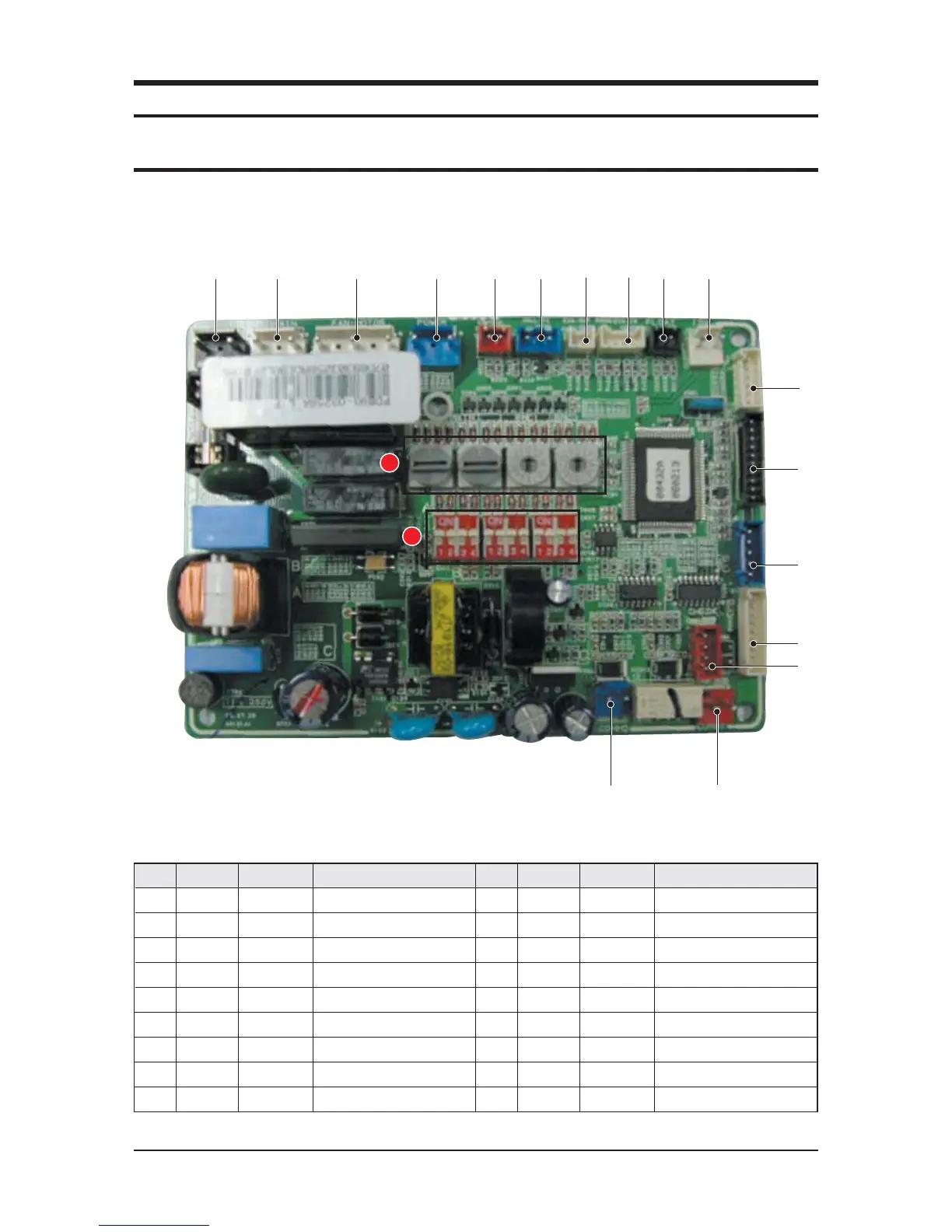

10. PCB Diagram
10-1 Indoor Unit
10-1-1 1 way cassette type
2
1
3
4
5
7 6
@! # $ % ^ & * )(
No. CN# COLOR FUNCTION
!
CN75 BLACK VENTILATOR
@
CN74 WHITE DRAIN PUMP
#
CN73 WHITE FAN-MOTOR
$
CN71 BLUE AC POWER
%
CN83 RED EXTERNAL CONTROL
^
CN44 BLUE HALL IC
&
CN42 WHITE EVA-OUT SENSOR
*
CN41 WHITE ROOM/EVA-IN SENSOR
(
CN51 BLACK FLOAT S/W
No. CN# COLOR FUNCTION
)
CN32 WHITE REMOCON DC12V
1
CN60 WHITE LOUVER
2
CN10 BLACK MICOM DOWNLOAD
3
CN62 BLUE EEV
4
CN91 WHITE DISPLAY
5
CN81 RED CHECK
6
CN31 RED COMM1(OUTDOOR)
7
CN33 BLUE COMM2(REMOCON)
A
B
