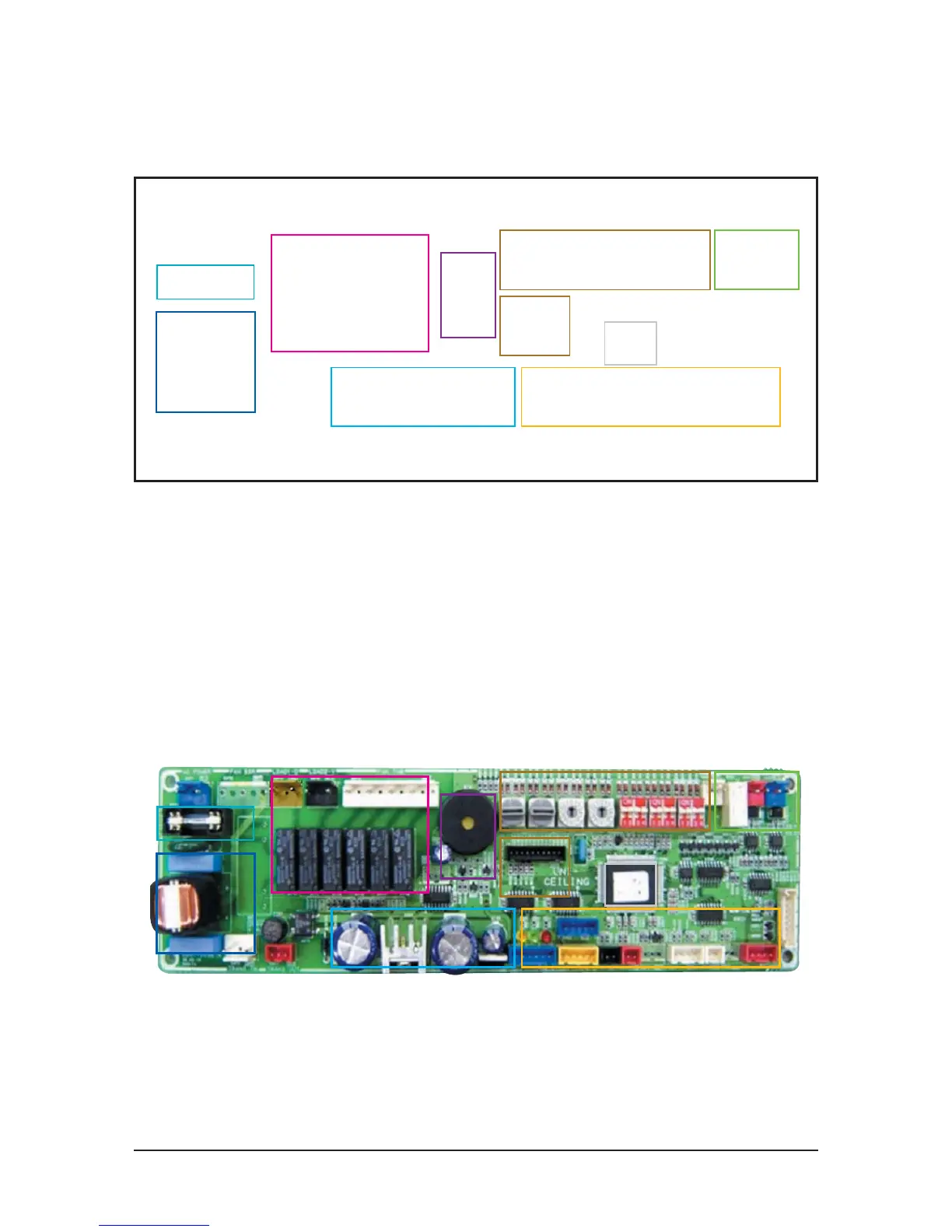

Block Diagram
Samsung Electronics13-9
13-1-9 Ceiling type
FUSE
Fan Motor Driver
(TAP TYPE)
Setting Part
1. Main/Rmc Address
2. Operation Condition
Program
Download
interface
BUZZER
DRIVE
1. Program Input
2. Noise Filter
Communication
1. Wired Remocon
2. Outdoor Unit
MPU
Power Generation Part
1. Rectifier
2. Linear Regulator
Extra...
1. Display interface
2. Sensor Input(room, eva in/out)
3. EEV DRIVE
