10-24Samsung Electronics

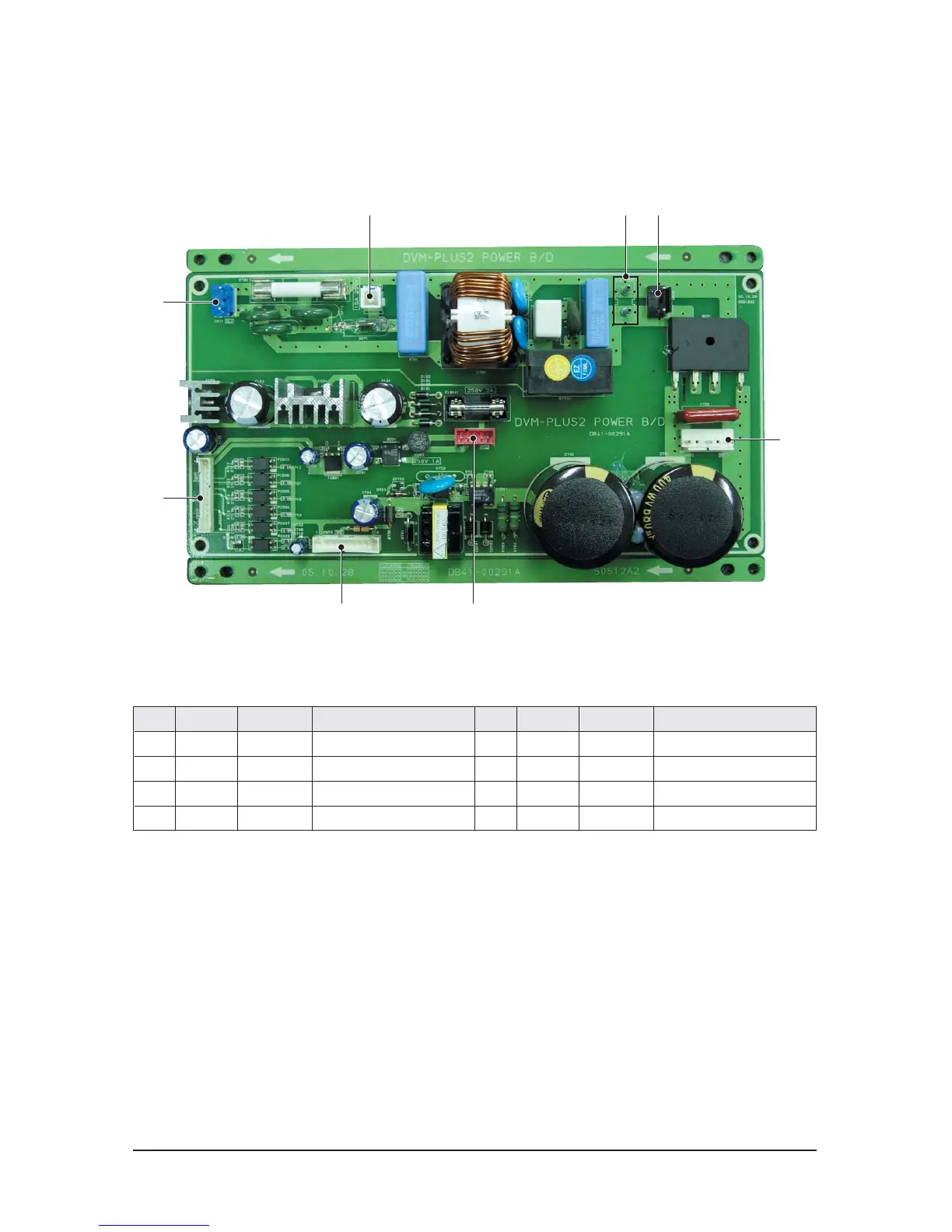

PCB Diagram
10-3-3 POWER PCB
@ $
No. CN# COLOR FUNCTION
!
CN71 BLUE 220V POWER INPUT
@
CN98 WHITE EARTH CONNECT
#
GT2 SILVER 220V TRANS INPUT
$
CN70 BLACK 220V POWER OUTPUT
No. CN# COLOR FUNCTION
%
CN72 WHITE DC310V FAN INPUT
^
CN11 RED AC17V / 9V OUTPUT
&
CN73 WHITE FAN IN/OUT SIGNAL
*
CN99 WHITE DC SIGNAL TO MAIN PCB
!
*
%
& ^
#
