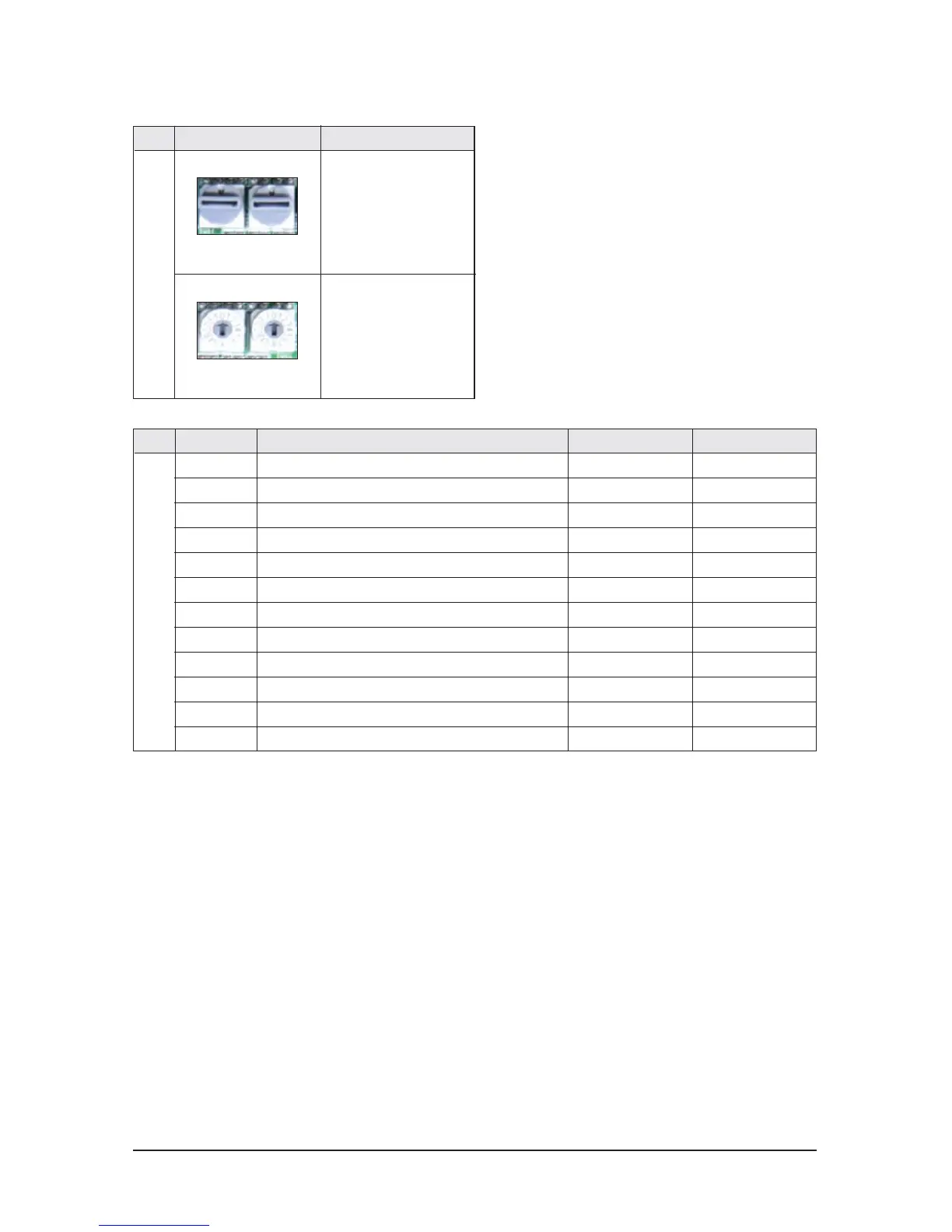

PCB Diagram
10-2Samsung Electronics
No. SW Function
SW01 SW02
SW03 SW04
Main address set (00~99)
Centralized
control
address set
(00~FF)
A
No. SW Function ON OFF
K1 Wired remote control not use use
K2 Centralized control not use use
K3 RPM up N/A N/A
K4 Option drain pump N/A N/A
K5 Heating thermo-off +2˚C +5˚C
K6 Filter signal display 1,000hr 2,000hr
K7 Hot water coil N/A N/A
K8 Electrical heater N/A N/A
K9 Min.EEV step at heating fix 80step 0 or 80step
K10 Transmitter grouping 0 to 15 16 to 31
K11 External Control N/A N/A
K12 Preparation
B
To Next Page
