10-16Samsung Electronics

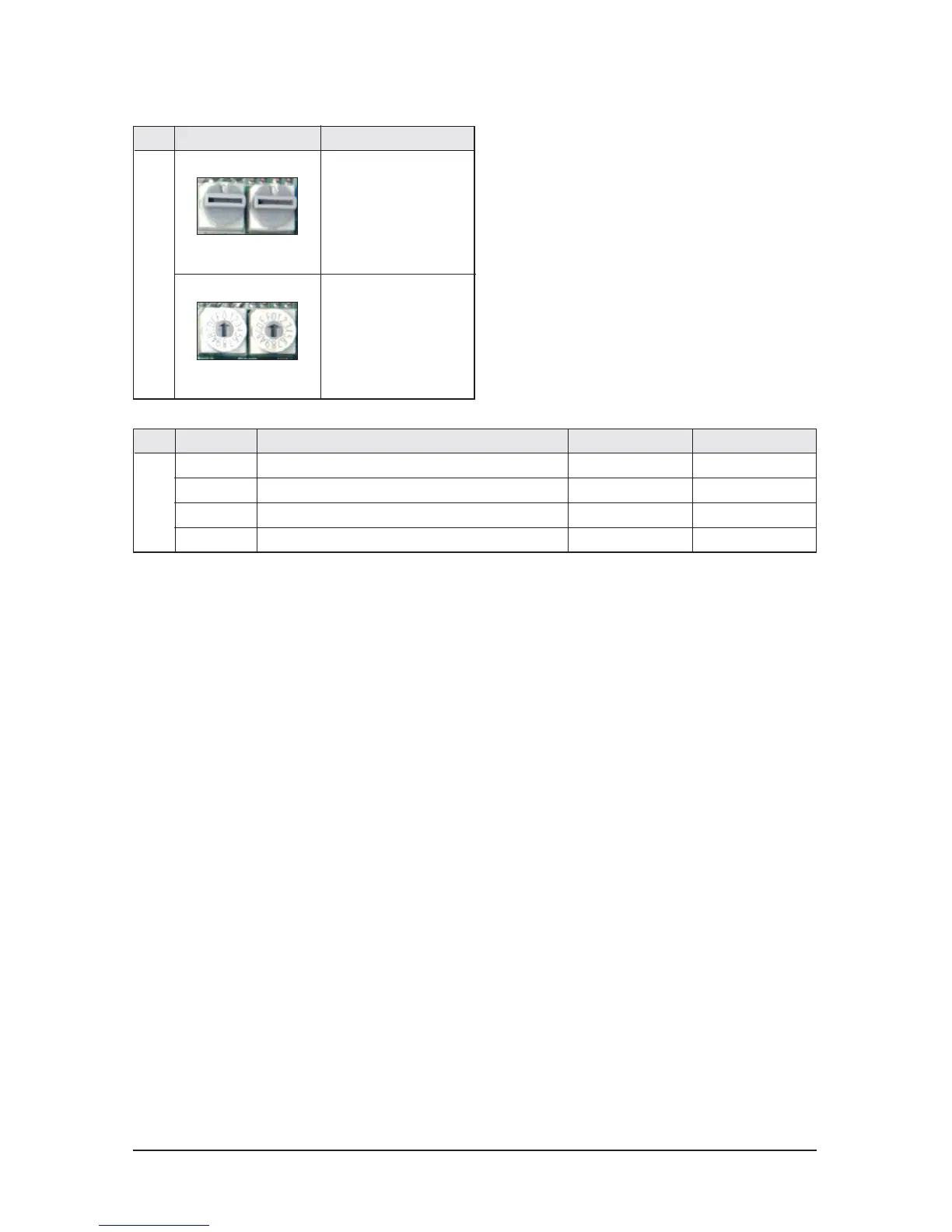

PCB Diagram
No. SW Function ON OFF
K1 Wired remote control not use use
K2 Centralized control N/A N/A
K3 Heating thermo-off +2˚C + 5˚C
K4 Min.EEV step at heating fix 80step 0 or 80step
B
No. SW Function
SW01 SW02
SW03 SW04
Main address
set
(00 ~99)
Centralized control
address set
(00 ~FF)
A
