Operating Instructions and Installation
Samsung Electronics11-26
2. Allowable Length of the Refrigerant Pipe and the Installation Examples

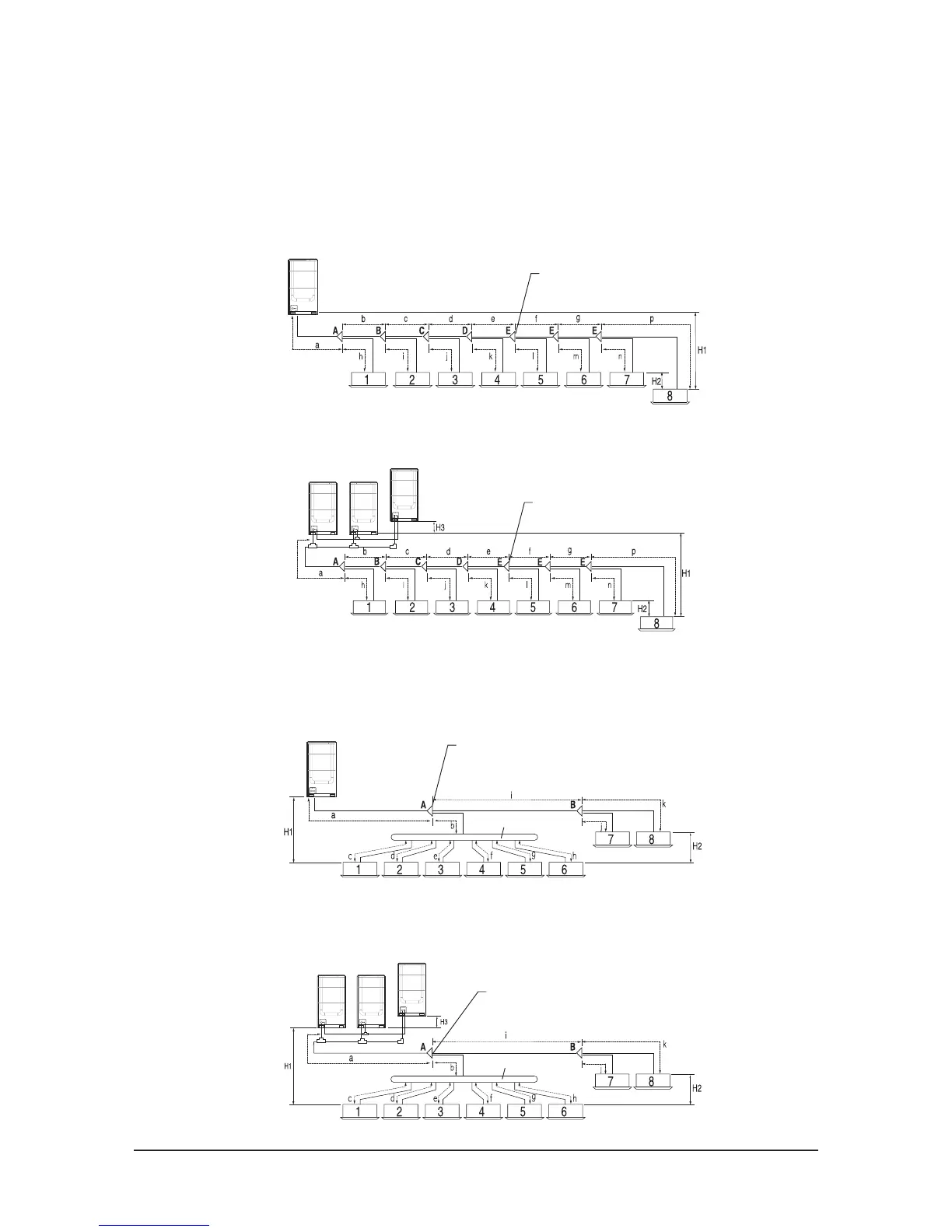

When installing 8 indoor units
• Using only Y-joint
- When installing 1 outdoor unit (8HP~14HP)
• Using Y-joint and branch joint
- When installing 1 outdoor unit (8HP~14HP)
Outdoor unit
Y-joint
Outdoor unit
Y-joint
Branch joint
- When installing more than 1 outdoor unit (16HP~48HP)
Outdoor unit
Y-joint
- When installing more than 1 outdoor unit (16HP~48HP)
Outdoor unit
Y-joint
Branch joint
