4-2
Samsung Electronics
Disassembly and Reassembly
No
Parts
Procedure
Remark
2

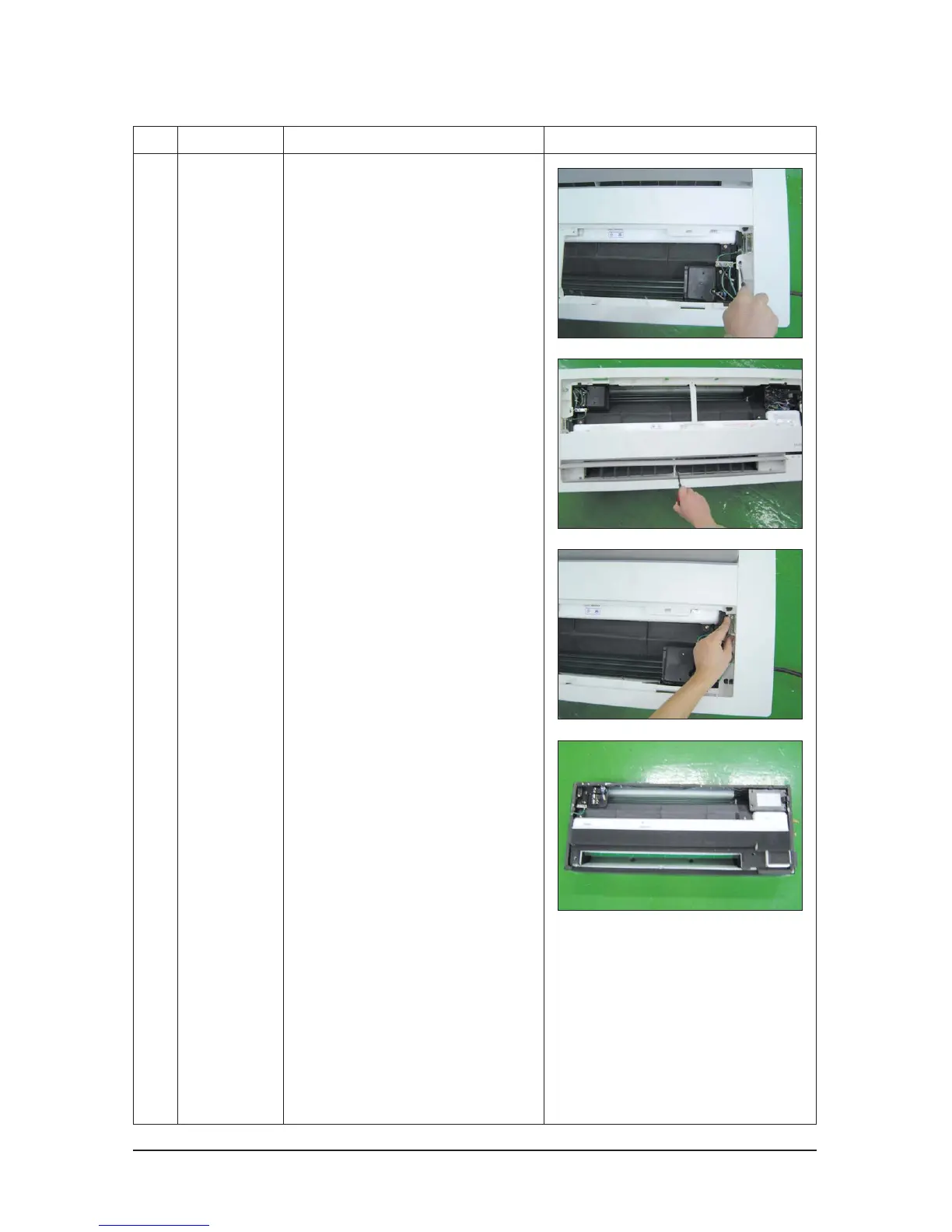

Front Panel
1)
Disassemble the screws holding the
Panel as shown picture.
2)
Separate the Front-Panel pressing
the 2 hooks on the both sides of the
indoor unit.
63
65
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
2
11 Precautions
8
Safety Precautions
8
Warning
9
Caution
10
Product Specifications
11
Way Cassette Type
13
Mini 4 Way Cassette
17
Wall-Mounted Type(Premium)
20
Wall-Mounted Type(Prestige)
21
Ceiling Type
22
Product Specifications
23
Outdoor Unit
37
Accessory
45
Alignment and Adjustments
49
Way Cassette Type
51
Duct Type(Low Silhouette, High Pressure, Built-In)
53
Ceiling Type
55
Setting Option Setup Method
57
Option Code
62
Disassembly and Reassembly
63
Way Cassette Type
72
Way Cassette Type
80
Mini 4 Way Cassette Type
88
Duct Type(Low Silhouette)
97
Duct Type(High & Low Pressure)
103
Duct Type(Built-In)
106
Duct Type(Slim)
110
Wall-Mounted Type(Premium)
115
Wall-Mounted Type(Prestige)
118
Ceiling Type
122
Outdoor Unit
131
4/5/6Hp
131
8/10Hp
133
12/14Hp
136
Exploded Views and Parts List
139
Indoor Unit
139
Way Cassette Type
139
Way Cassette Type
143
Way Cassette Type
147
Mini 4 Way Cassette Type
153
Duct Type(Low Silhouette)
157
Duct Type(High & Low Pressure)
159
Duct Type(Built-In)
160
Duct Type(Built-In)
163
Duct Type(Slim1)
167
Duct Type(Slim2)
169
Wall-Mounted Type(Premium)
171
Wall-Mounted Type(Prestige)
177
Ceiling Type
185
Outdoor Unit
189
4/5/6Hp
189
8/10Hp
193
12/14Hp
197
Electrical Parts List
201
Indoor Unit
201
Way Cassette Type
201
Way Cassette Type
207
Way Cassette Type
213
Mini 4 Way Cassete Type
219
Duct Type(Low Silhouette & Built-In)
222
Duct Type(High & Low Pressure)
228
Duct Type(Slim 1)
234
Duct Type(Slim 2)
237
Wall-Mounted Type(Premium)
243
Wall-Mounted Type(Prestige)
248
Ceiling Type
254
Outdoor Unit
260
Rvxmfh040E
260
Rvxmfh050E
265
Rvxmfh050G
270
Rvxmfh060G
276
Rvxvht080G✳/Rvxfht080G
282
Rvxvht100G✳/Rvxfht100G
290
Rvxvht120G✳/Rvxfht120G
298
Rvxvht140G✳/Rvxfht140G
307
Outdoor Power PCB
316
Outdoor CT PCB
319
Wiring Diagram
322
Indoor Unit
322
Way Cassette Type
322
Way Cassette Type
323
Way Cassette Type
324
Mini 4 Way Cassette Type
325
Duct Type(Low Silhouette, Built-In)
326
Duct Type(High & Low Pressure)
327
Duct Type(Slim1, Slim2)
328
Duct Type(Slim3)
329
Wall-Mounted Type(Premium)
330
Wall-Mounted Type(Prestige)
331
Ceiling Type
332
Outdoor Unit
333
Phase 4HP
333
Phase 5HP
334
Phase 5/6HP
335
8/10Hp
336
12/14Hp
337
Schematic Diagram
338
Indoor Unit
338
Way Cassette Type
338
Way Cassette Type
339
Way Cassette Type
340
Mini 4 Way Cassette Type
341
Duct Type
342
Wall-Mounted Type
343
Ceiling Type
344
Outdoor Unit (Mini DVM Series)
345
Outdoor Unit (DVM Plus2 Series)
346
Main Pcb 1
346
Main PCB
346
Main Pcb 2
347
Power Pcb
348
Refrigerant Circuit Diagram
349
Cooling Operation
349
Heating Operation
352
A Description of Cycle Function Parts
355
PCB Diagram
357
Indoor Unit
357
Way Cassette Type
357
Way Cassette Type
359
Way Cassette Type
361
Mini 4 Way Cassette Type
363
Duct Type(Low Silhouette/Built-In)
365
Duct Type(High & Low Pressure)
367
Duct Type(Slim)
369
Wall-Mounted Type(Premium)
371
Wall-Mounted Type(Prestige)
373
Ceiling Type
375
Outdoor Unit (Mini DVM Series)
377
Outdoor Unit (DVM Plus2 Series)
378
Main Pcb_Ac
378
Main Pcb_Dc
379
Power Pcb
380
Ct Pcb
381
Operating Instructions and Installation
382
Mini-DVM System
382
Features
382
Installation
386
DVM Plus2 System
388
Features
388
Technology
393
Installation
404
Installing the Refrigerant Pipe Work
406
Troubleshooting
412
Operating Flow of Outdoor Unit
412
Initial Tracking (Communication Check) - Indicated if Abnormal
413
Reverse Phase/Missing Phase Detection (Outdoor Unit Using 3 Phase Power)
414
Indicated if Abnormal
414
Compressor Preheating - Indicated
416
Self Diagnosis by Indoor Unit LED (Display Lamp) Display
417
Self Diagnosis by Outdoor Unit Error Display
419
Error Display Method
419
Outdoor Unit Fan Motor Rpm Error
442
Outdoor Temperature Sensor Error
451
Eeprom Error
459
Block Diagram
485
Indoor Unit
485
Way Cassette Type
485
Way Cassette Type
486
Way Cassette Type
487
Mini 4 Way Cassette Type
488
Duct Type(Built-In/High & Low Pressure)
489
Duct Type(Slim)
490
Wall-Mounted Type(Premium)
491
Wall-Mounted Type(Prestige)
492
Ceiling Type
493
Outdoor Unit (Mini DVM Series)
494
Power PCB
496
Reference Information
497
Index for Model Name
497
Indoor Unit
497
Outdoor Unit
498
Special Operation Mode (Mini DVM Series)
499
The Setting of Option Switch
499
The Function of Key on the Outdoor Unit PCB
500
Test Operation
502
Special Operation Mode (DVM Plus2 Series)
505
Refrigerant Collection Operation
505
Pump down
505
Pump out
509
Oil Collection Operation
510
Vacuum Preparing Operation
511
Filter Drier Equipping Method When Compressor Is Breakdown
512
Information of Refrigerant R410A
513
Calculation for Additional Refrigerant
515
Exclusive Tools, Only R410A
516
Q & a for Non-Trouble
517
5
Based on 1 rating
