Disassembly and Reassembly
4-32Samsung Electronics

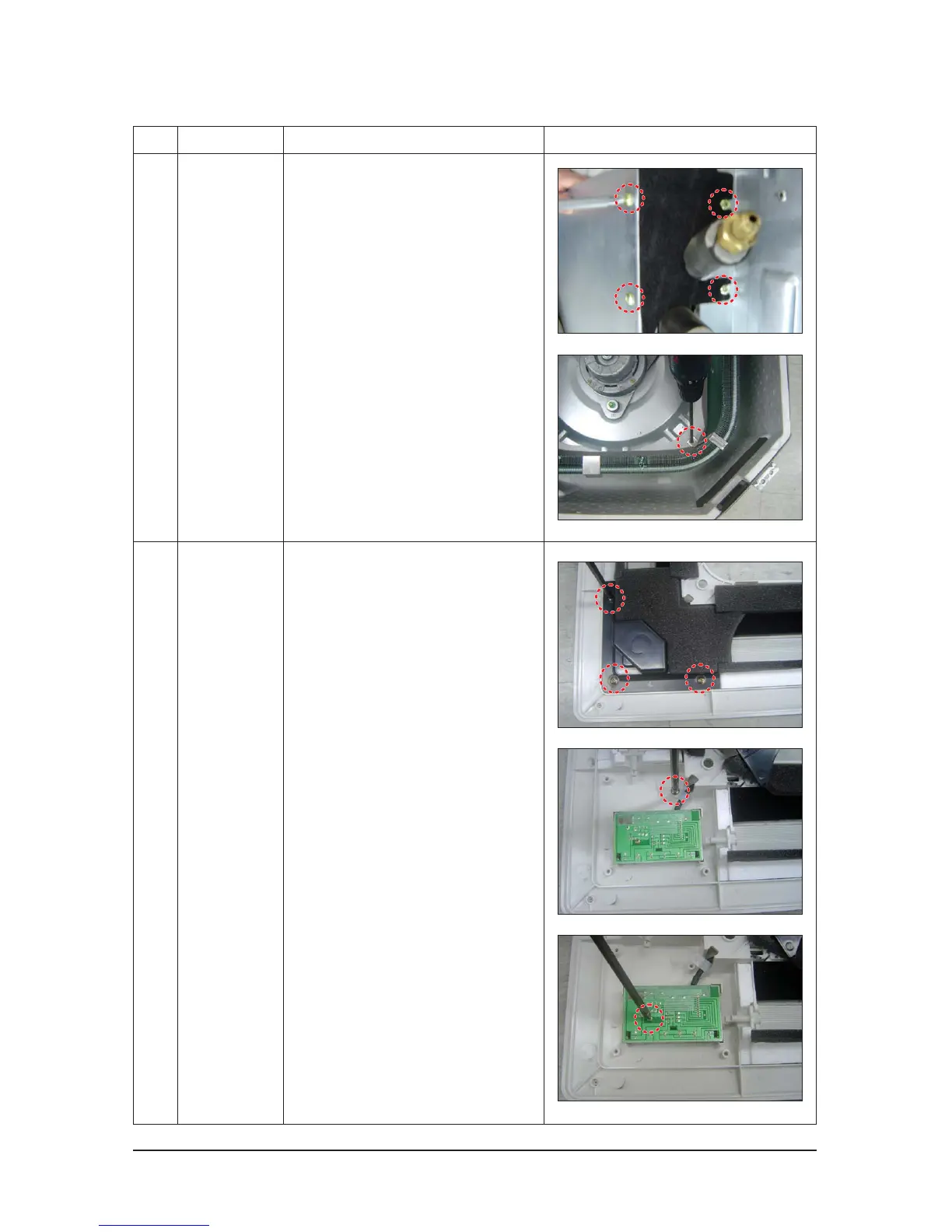

No Parts Procedure Remark
5
6
Heat Exchanger
Front Panel
(PCB Panel)
1) Disassemble the cover pipe beside the
main body.
2) Disassemble the 1 fixing Bracket of the
Heat Exchanger to disassemble it from
the main body.
1) Loosen 3 bolts fixing the Control C and
then lift it up.
2) Disassemble the Clamp.
3) Loosen the bolt fixing the PCB to
disassemble the PCB.
