Part name How to do Descriptive Picture
Refrigerator
Door
4. After pulling the Hinge Lever, remove the Hinge.
5. Lift the door straightly up to remove while opening
it more than 90
°.
6. With a Philips head screwdriver, remove the screw
(6) attatched to the lower left and right door hinges.
With a 0.4in Hex wrench, remove the 2 flat head
screws (7) Remove the lower left and right door
hinges (8).
7. With a Philips head screwdriver, remove the
screw(9).
After, With Flat Head Driver(10), Lift up and remove
the Auto Hinge (11)

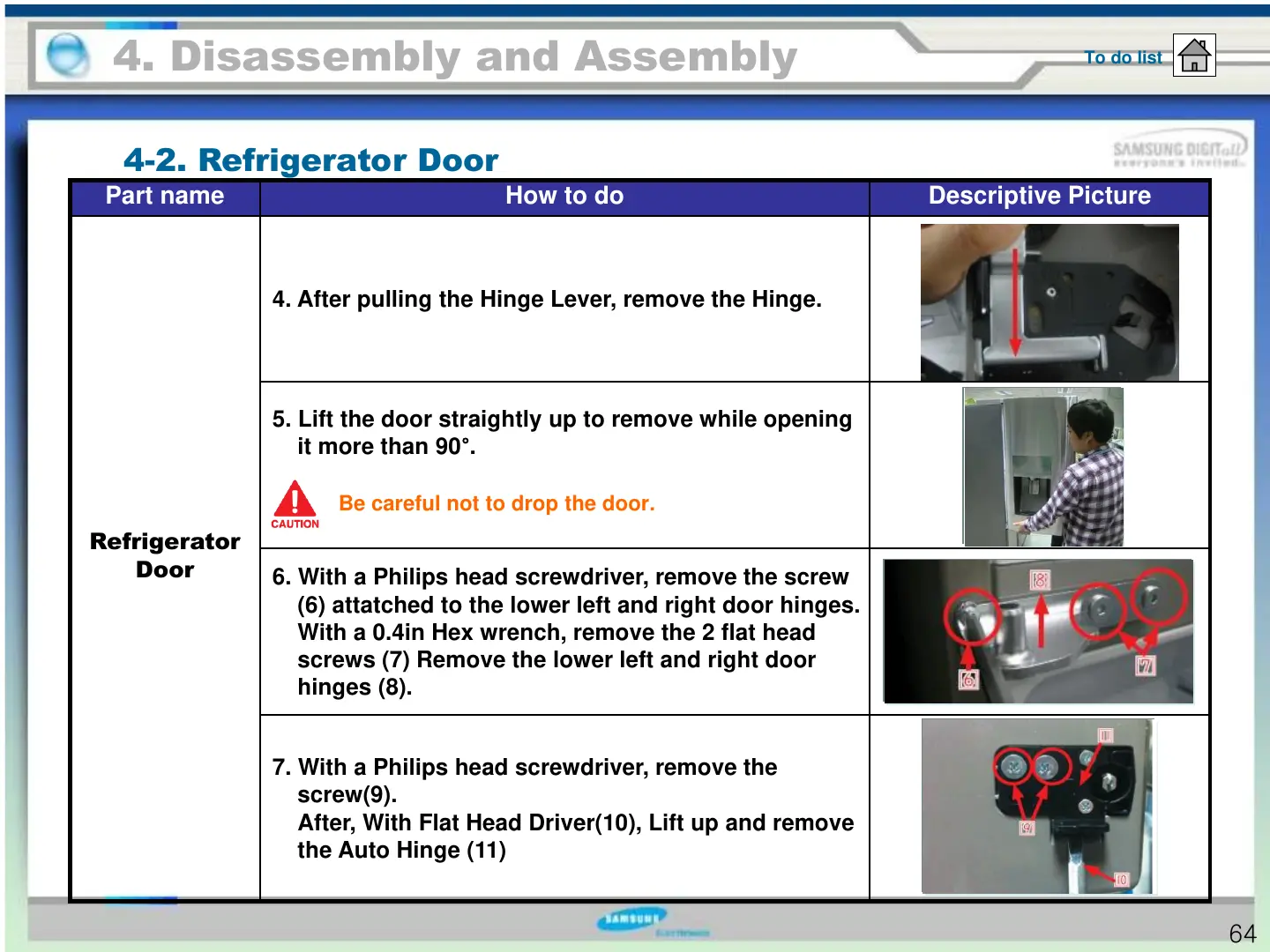

4. Disassembly and Assembly
4-2. Refrigerator Door
To do list
Be careful not to drop the door.
64
