Part name How to do Descriptive Picture
Refrigerator
Door

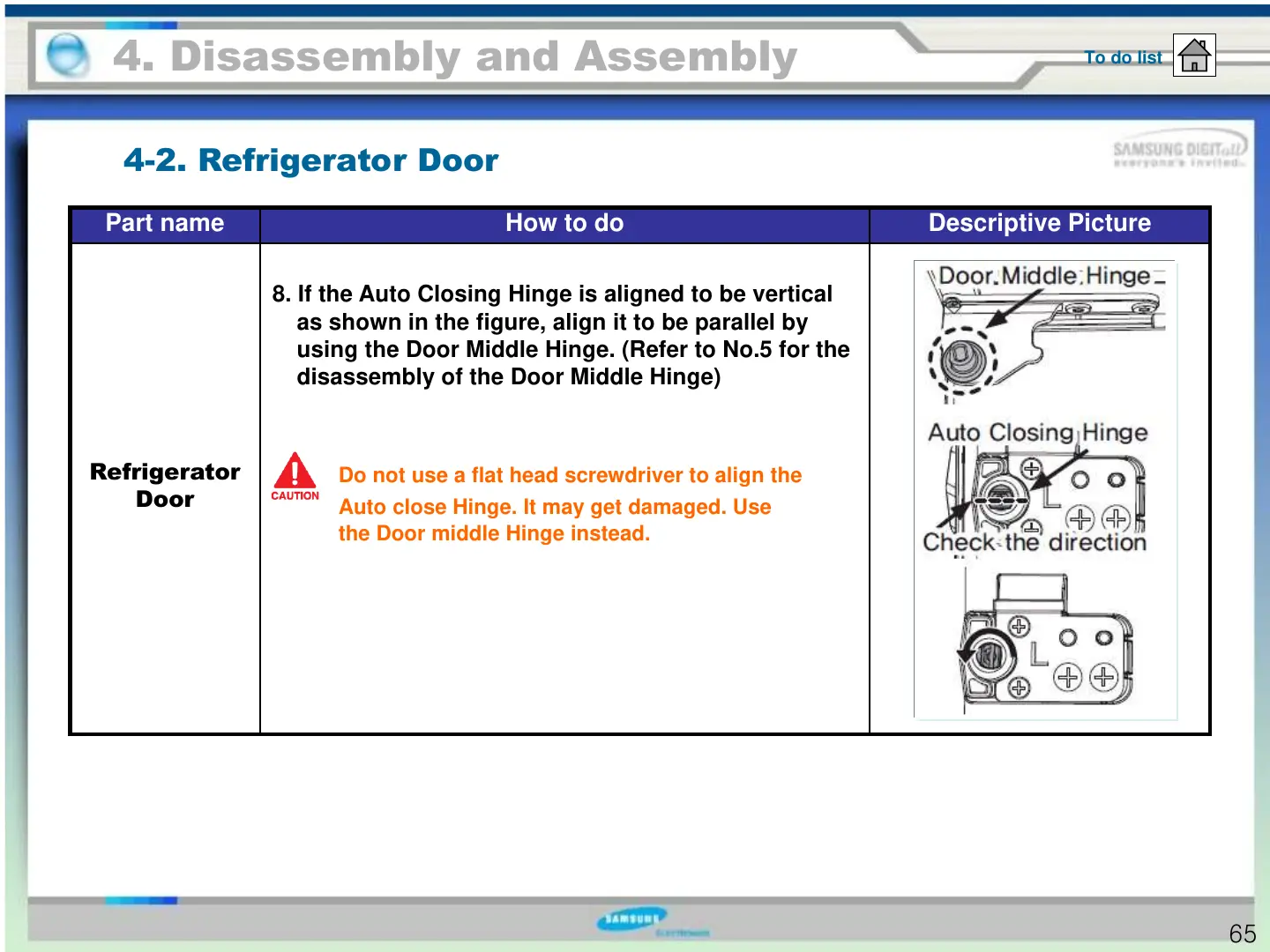

8. If the Auto Closing Hinge is aligned to be vertical
as shown in the figure, align it to be parallel by
using the Door Middle Hinge. (Refer to No.5 for the
disassembly of the Door Middle Hinge)
4. Disassembly and Assembly
4-2. Refrigerator Door
To do list
65
Do not use a flat head screwdriver to align the
Auto close Hinge. It may get damaged. Use
the Door middle Hinge instead.
To Next Page
