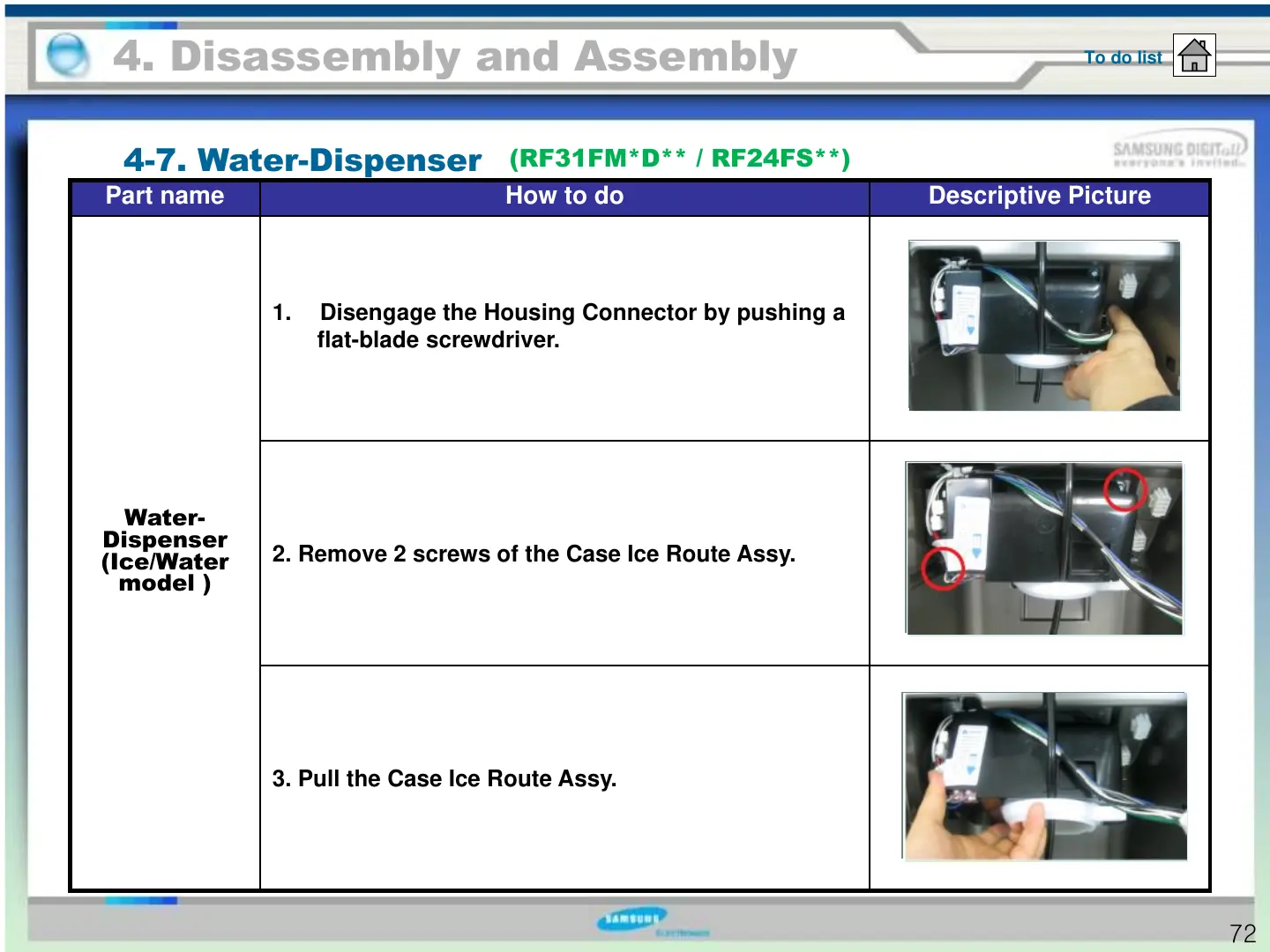

4. Disassembly and Assembly
4-7. Water-Dispenser
To do list
Part name How to do Descriptive Picture
Water-
Dispenser
(Ice/Water
model )
1. Disengage the Housing Connector by pushing a
flat-blade screwdriver.
2. Remove 2 screws of the Case Ice Route Assy.
3. Pull the Case Ice Route Assy.
72
(RF31FM*D** / RF24FS**)
