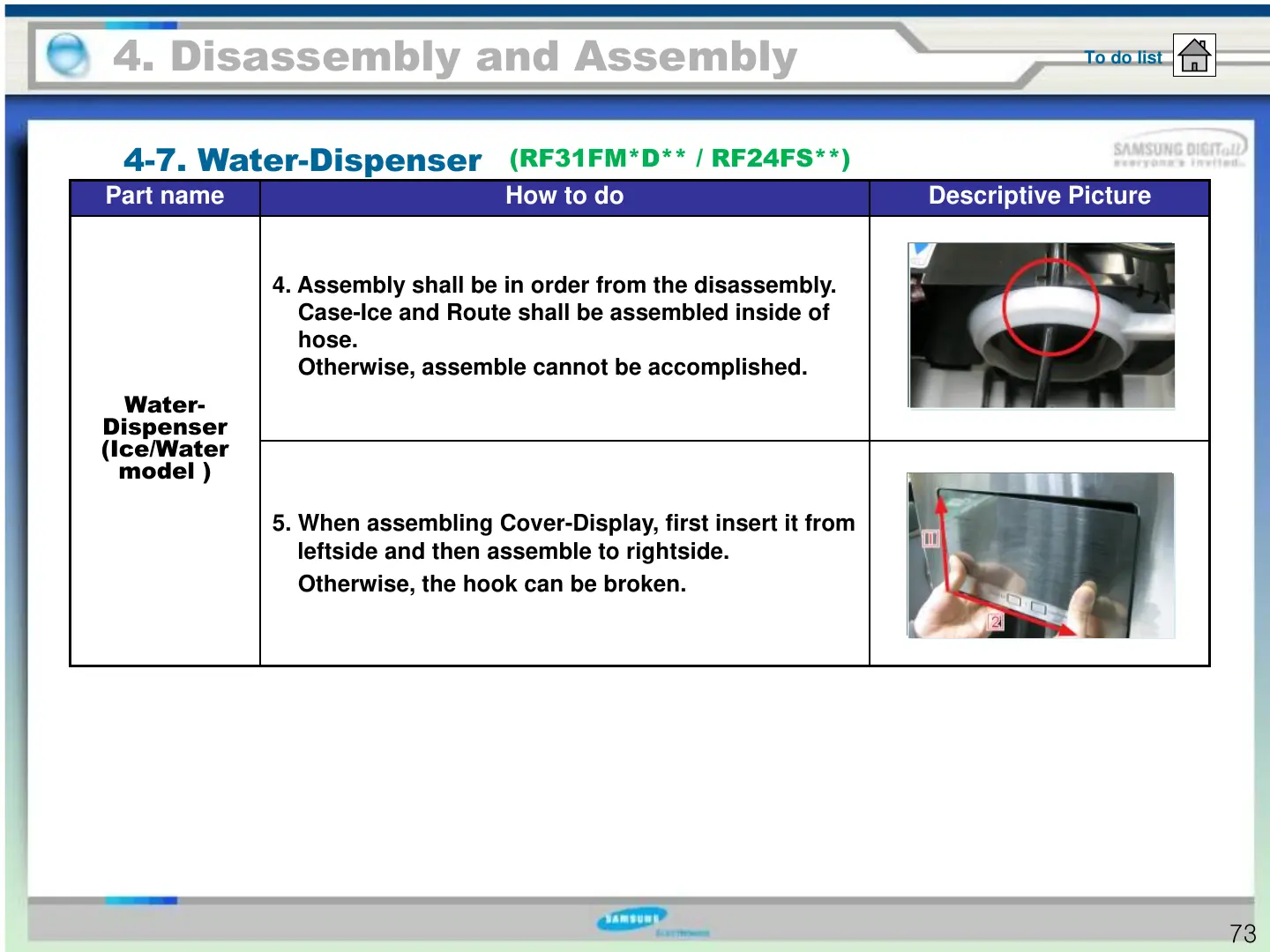

4. Disassembly and Assembly
4-7. Water-Dispenser
To do list
Part name How to do Descriptive Picture
Water-
Dispenser
(Ice/Water
model )
4. Assembly shall be in order from the disassembly.
Case-Ice and Route shall be assembled inside of
hose.
Otherwise, assemble cannot be accomplished.
5. When assembling Cover-Display, first insert it from
leftside and then assemble to rightside.
Otherwise, the hook can be broken.
73
(RF31FM*D** / RF24FS**)
