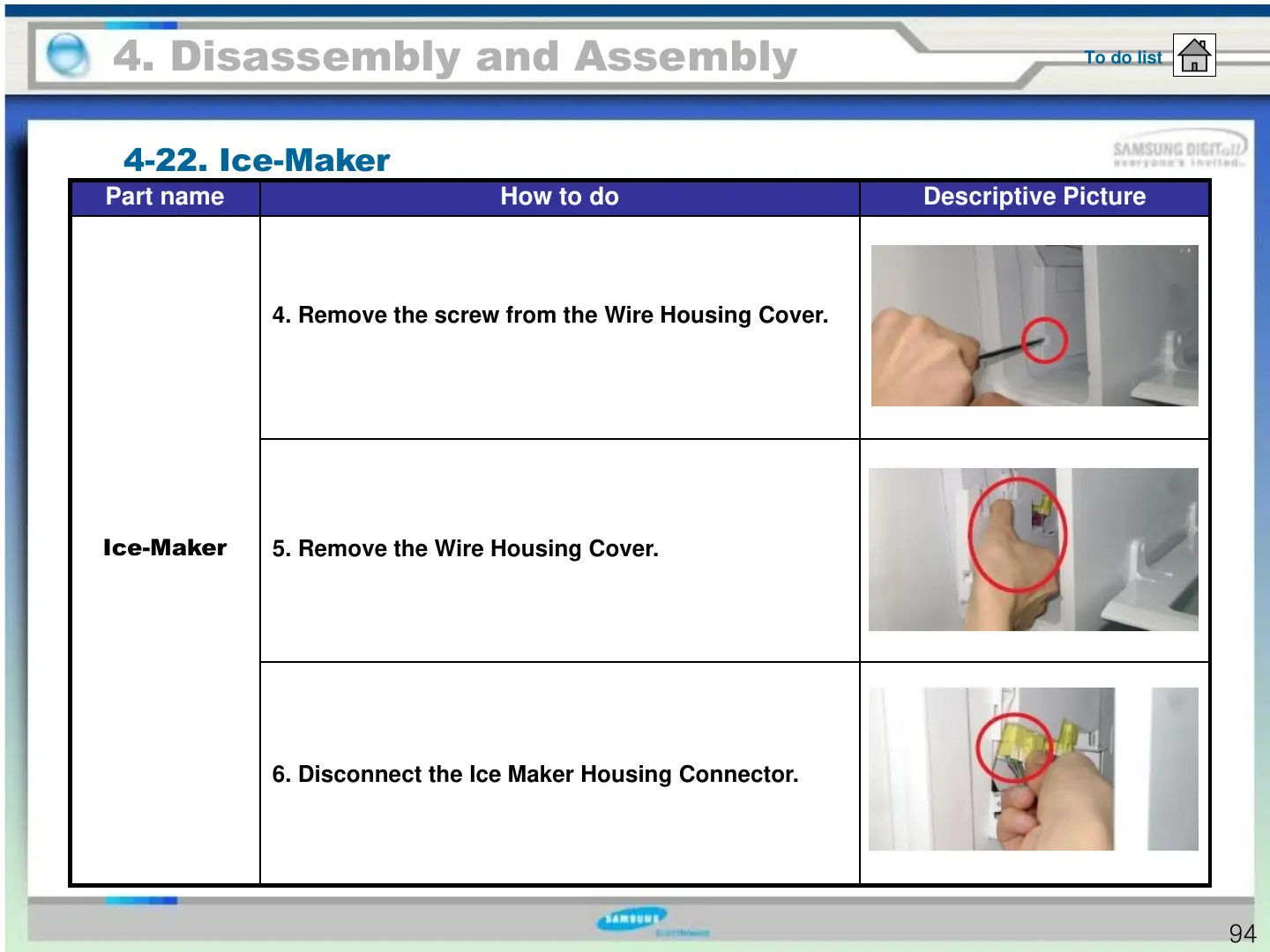

Part name How to do Descriptive Picture

Ice-Maker

4. Remove the screw from the Wire Housing Cover.

5. Remove the Wire Housing Cover.

6. Disconnect the Ice Maker Housing Connector.

4. Disassembly and Assembly

4-22. Ice-Maker
